Stainless Steel Extruder Screen Usually 20 Mesh To 650 Mesh With Smooth Edge

  • Stainless Steel Extruder Screen Usually 20 Mesh To 650 Mesh With Smooth Edge
  • Stainless Steel Extruder Screen Usually 20 Mesh To 650 Mesh With Smooth Edge
  • Stainless Steel Extruder Screen Usually 20 Mesh To 650 Mesh With Smooth Edge
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1000Pieces
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Smooth Edge, No Sharp Angle. Product Name Stainless Steel Extruder Screen
Material 302, 304, 304L, 316, 316L, 310 Stainless Steel Woven Wire Cloth. Application Filtration, Sieve
Technique Plain Weave, Plain Dutch Weave Or Twilled Weave. Layer Single Layer Or Multi Layers.
Dia. Of Wire Mesh Disc Screen From 5 Mm To 600 Mm. Useage Plastic And Rubber Industry.
Highlight

Smooth Edge Extruder Screen

,

650 Mesh Extruder Screen

,

20 Mesh Stainless Steel Extruder Screen
Leave a Message
Product Description

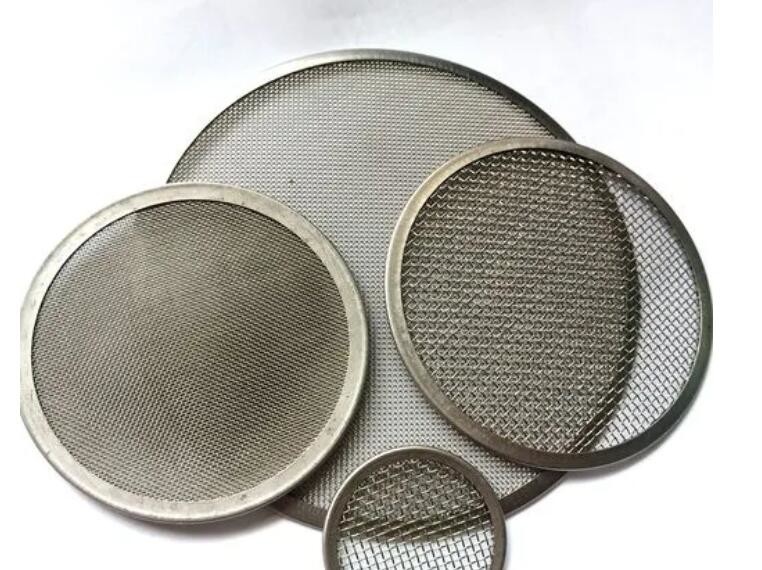

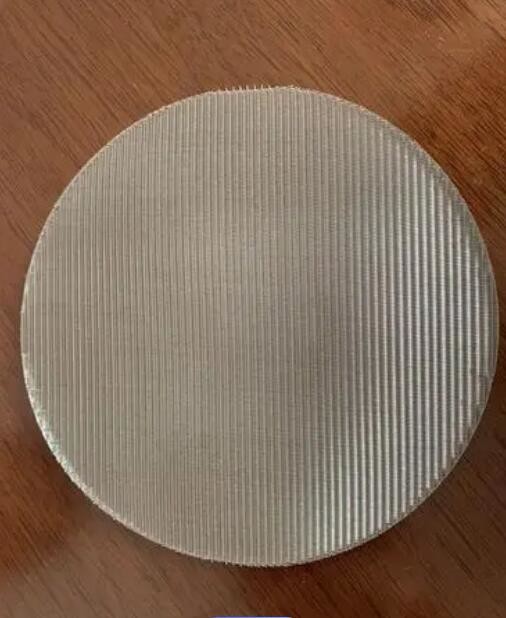

Stainless Steel Extruder Screen Usually 20 Mesh To 650 Mesh With Smooth Edge



Introduction

Stainless steel extruder screen is woven with stainless steel wire mesh cloth. It can be woven in different dutch weave types: plain, twill or reverse dutch weave. Single layer screen is designed simply, and different mesh sizes can make to multilayers screens which is required in high precision filtration and separation industry. And the multi layer screens are spot welded together. All the extruder screen with borders or without borders are available. And compressed edges also are offered.

Our machine can make various shapes screen with accurate size and smooth edge, for example round, square, rectangle, kidney shape, oval.



Features:



Welding spot no damage the screen.
Smooth edge, no sharp angle.
Accurate sizes.
Acid-resisting, alkali-resisting, heat-resisting and wear-resisting.



Applications:

Plastic and rubber industry.
PVC film.
Food industry.
Chemical industry.



Specificationis:

Material: 302, 304, 304L, 316, 316L, 310 stainless steel woven wire cloth.
Style: plain dutch weave, plain weave, twill dutch weave, twill weave and reverse dutch weave.
Mesh count: usually 20 mesh - 650 mesh.
Layer: single layer or multilayer.
Shape: kidney shape, round, oval, rectangle and other special shape.
Dia. of wire mesh disc screen: from 5 mm to 600 mm.
Thickness: 0.1 mm to 6 mm.



Mesh/Inch Wire Diameter (mm) Aperture (mm) Open Area (%)
200 × 200 0.05 0.077 60.6
200 × 200 0.06 0.067 52.7
250 × 250 0.03 0.072 49.8
250 × 250 0.04 0.062 36.9
270 × 270 0.035 0.059 60
270 × 270 0.04 0.054 57.4
300 × 300 0.03 0.055 57
325 × 325 0.035 0.0432 55.3
400 × 400 0.03 0.0335 52.7
500 × 500 0.025 0.0258 50.7
635 × 635 0.02 0.02 55







Stainless Steel Extruder Screen Usually 20 Mesh To 650 Mesh With Smooth Edge 0

Stainless Steel Extruder Screen Usually 20 Mesh To 650 Mesh With Smooth Edge 1



Packing:



35μm 70 x 350Mesh Firm Structure Stainless Steel Plain Dutch Weave Wire Mesh 3





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
