Stainless Steel Wire Cloth Extruder Screen With Superior Performance

  • Stainless Steel Wire Cloth Extruder Screen With Superior Performance
  • Stainless Steel Wire Cloth Extruder Screen With Superior Performance
  • Stainless Steel Wire Cloth Extruder Screen With Superior Performance
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1000Pieces
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Acid-resistance, Alkali-resistance, Hot-resistance, High Tensile Strength, Wear-resistance. Product Name Extruder Screen
Material Stainless Steel, Other Materials Can Also Be Supplied. Application Filtration, Sieve
Technique Plain Weave, Plain Dutch Weave Or Twilled Weave. Layer Single Layer Or Multi Layers.
Shape Round, Oval, Rectangular Or Other Special Designed Shapes. Useage Extruder Screen Is Widely Used In The Field Of Petroleum, Chemical Industry, Chemical Fiber, Rubber, Metallurgy, Medicine And Food Industries.
Highlight

Superior Performance Wire Cloth Extruder Screen

,

Stainless Steel Wire Cloth Extruder Screen

,

Extruder Screen With Superior Performance
Leave a Message
Product Description

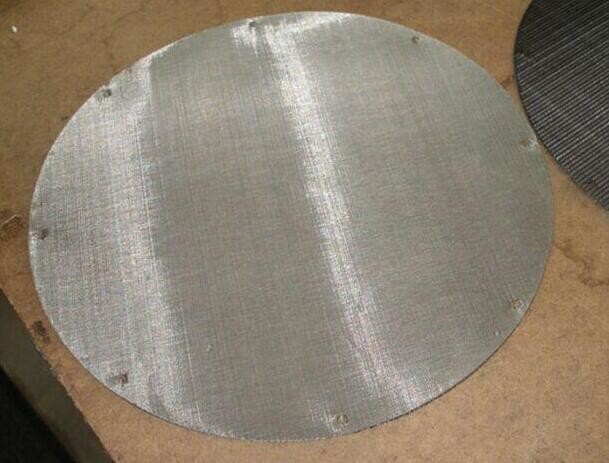

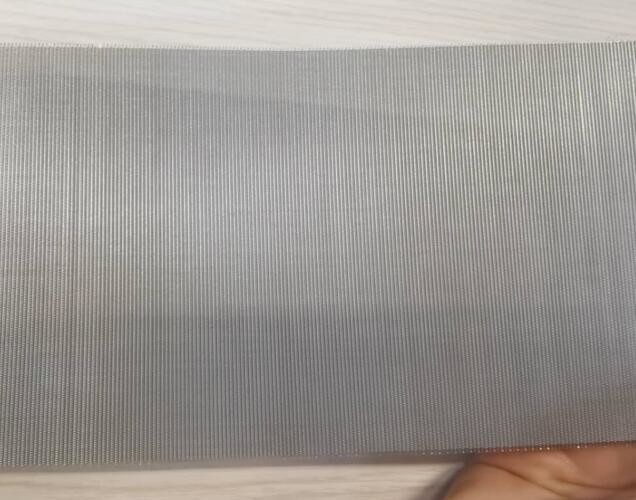

Stainless Steel Wire Cloth Extruder Screen With Superior Performance



Introduction

Extruder screen with superior performance is made from stainless steel wire cloth. And other materials can also be supplied. Due to its durability and chemical resistance, it is mainly used in melt extrusion and filtration. The screen is made to circular or other different shapes. And we can supply single layer or multi layers extruder screen in any mesh and diameters according to customer's requirement, for example extruder screen packs and extruder screen discs.



Features:



Made of anti-corrosive raw materials and advanced technology which can hold up to multiple environments and uses.
Available in different sizes, shapes and specifications.
Reliable extrusion and filtration capacity.
Smooth surface with no sharp edges, burrs or acute angles.
Very durable with robust structure.
Acid-resistance, alkali-resistance, hot-resistance, high tensile strength, wear-resistance.



Applications:

Extruder screen is widely used in the field of petroleum, chemical industry, chemical fiber, rubber, metallurgy, medicine and food industries. Besides, the screen also can be applied in filtering of gas and liquid, separating foreign matters.



Specificationis:

Material: stainless steel wire mesh. Other materials can also be supplied.
Style: plain weave, plain dutch weave or twilled weave.
Layer: single layer or multi layers.
Shape: round, oval, rectangular or other special designed shapes.



Mesh Wire Dia. mm Aperture Size Open Area %
10 × 10 0.711 1.829 mm 51.8
14 × 14 0.457 1.357 mm 55.9
16 × 16 0.457 1.131 mm 50.7
20 × 20 0.559 0.711 mm 31.4
20 × 20 0.457 0.813 mm 41
24 × 24 0.376 0.682 mm 41.4
30 × 30 0.376 0.531 mm 34.2
30 × 30 0.31 0.536 mm 40
40 × 40 0.274 0.361 mm 32.3
50 × 50 0.193 0.335 mm 43.6
60 × 60 0.193 0.230 mm 29.8
80 × 80 0.122 0.196 mm 37.9
100 × 100 0.102 0.152 mm 36
120 × 120 0.091 0.120 mm 31.8
150 × 150 0.071 0.088 mm 29.6
200 × 200 0.05 0.077 mm 36.76
250 × 250 0.04 0.062 mm 36.76
300 × 300 0.04 0.045mm 27.83
325 × 325 0.035 0.043mm 30.49
400 × 400 0.028 0.036mm 31.25
500 × 500 0.025 0.026mm 25.79



Hot specifications:

10-12 micron screen
Dutch weave screen of mesh size: 20 × 60 × 100 size.
Screen mesh, 120 × 120 mesh


extruder screens:
Plain steel, diam. 220mm, 30 mesh (wire 0.30mm).
Plain steel, diam. 170mm, 30 mesh (wire 0.30mm).
Plain steel, diam. 170mm, 40 mesh (wire 0.25mm).



Stainless Steel Wire Cloth Extruder Screen With Superior Performance 0



Packing:



35μm 70 x 350Mesh Firm Structure Stainless Steel Plain Dutch Weave Wire Mesh 3





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
