Gabion Box Made Of Hexagonal Wire Netting Wire Diameter From 2.0mm To 4.0mm

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets; ; Or as requirements.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 3000rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Strengthening Structure Of Soil Product Name Hexagonal Wire Mesh
Material Galvanized Wire, Stainless Steel, Pvc Coated, Etc Wire Diameter BWG16 17 18 19 20 21 22 23 24 25 26 27 Etc
Hole Size 60X80,80X100,80X120,100X120,100X150,120X150 Roll Width 12" To 96"
Roll Length 5m To 50m Applications Used For Fence
High Light

Hexagonal Wire Netting Gabion Box

,

4.0mm Gabion Box

,

2.0mm Gabion Box

Leave a Message
Product Description

Gabion Box Made Of Hexagonal Wire Netting Wire Diameter From 2.0mm To 4.0mm



Introduction:



Gabions boxes are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.



Gabion Sacks are cylindrical units which are made of doubel twisted steel woven wire mesh panel 6*8,8*10,10*12,12*15cm according to ASTM A 975 and EN10223.Gabion Sacks are filled with stone at the site to form flexible and durable structures to be used in river training and emergency works.Sack gabions are supplied with reinforcing wires to be inserted during the manufacturing process to facolitate closing during installation.the wire used in gabion sacks is heavily zinc coated soft temper steel.





Material:



Hexagonal wire mesh: hot dipped galvanized after weaving.

Hexagonal wire mesh: hot dipped galvanized before weaving

Hexagonal wire mesh: electro galvanized after weaving.

Hexagonal wire mesh: electro galvanized before weaving.

Hexagonal wire mesh: PVC coated.

Hexagonal wire mesh: in stainless steel




Features:



Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport and further installation.



Application:



Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area.





Specifications





Stainless Steel Hexagonal Wire Mesh

Mesh

Width

Wire Gauge(Diameter) BWG

Inch

mm

Inch



3/8’’

10mm

12”-36”

27, 26, 25, 24, 23

1/2’’

13mm

12”-96”

25, 24, 23, 22, 21

5/8’’

16mm

12”-96”

27, 26, 25, 24, 23, 22

3/4’’

20mm

12”-96”

25, 24, 23, 22, 21, 20, 19

1’’

25mm

12”-96”

25, 24, 23, 22, 21, 20, 19, 18

1-1/4’’

31mm

12”-96”

23, 22, 21, 20, 19, 18

1-1/2’’

40mm

12”-96”

23, 22, 21, 20, 19, 18

2’’

50mm

12”-96”

23, 22, 21, 20, 19, 18

2-1/2’’

65mm

12”-96”

21, 20, 19, 18

3’’

75mm

12”-96”

20, 19, 18, 17

4’’

100mm

12”-96”

19, 18, 17, 16

Special specification are available according to customer's requirement.

Drawing:

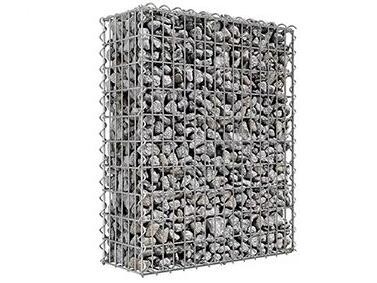

Gabion Box Made Of Hexagonal Wire Netting Wire Diameter From 2.0mm To 4.0mm 0

Packing:

Gabion Box Made Of Hexagonal Wire Netting Wire Diameter From 2.0mm To 4.0mm 1
Gabion Box Made Of Hexagonal Wire Netting Wire Diameter From 2.0mm To 4.0mm 2
