11 Mesh × 0.9 Mm Aluminum Alloy Security Screen With Anti Rust Light Weight High Strength

  • 11 Mesh × 0.9 Mm Aluminum Alloy Security Screen With Anti Rust Light Weight High Strength
  • 11 Mesh × 0.9 Mm Aluminum Alloy Security Screen With Anti Rust Light Weight High Strength
  • 11 Mesh × 0.9 Mm Aluminum Alloy Security Screen With Anti Rust Light Weight High Strength
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Strength, No Rupture. Product Name Aluminum Alloy Security Screen
Material Aluminum Wire Hole Shape Square Hole
Mesh Counts 11 Mesh × 0.9 Mm. Wire Diameter 0.3 Mm - 1.2 Mm.
Color Black, White, Gray And Silver. Width 750 Mm, 800 Mm, 900 Mm, 1000 Mm, 1200 Mm, 1500 Mm.
Length 2000mm 2400mm 3000mm, 20 M, 30 M, 50 M Or At Your Requests. Application Screen For Window And Doors
High Light

11 Mesh Aluminum Alloy Security Screen

,

High Strength Aluminum Alloy Security Screen

,

Light Weight Aluminum Alloy Security Screen
Leave a Message
Product Description

11 Mesh × 0.9 Mm Aluminum Alloy Security Screen With Anti Rust Light Weight High Strength Features



Introduction:



Aluminum alloy security screen with square holes is also called aerometal mesh, and the wire is black powder coated for better corrosion resistant. With the new elements of aluminum, magnesium, zinc, titanium, etc, aluminum alloy security screen is never rust. And with different mesh sizes, it is often used for window or door insect screens to prevent entering of mosquitoes and other pests. Aluminum alloy security screen is coastal people's anti-mosquitoes "angel".



Weave Type: Plain Weave


Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum


Specifications:



Material: aluminum alloy wire with new elements magnesium, zinc, titanium, etc.
Common mesh size: 11 mesh × 0.9 mm.
Other mesh sizes: 10 mesh × 0.9 mm, 10 mesh × 1.2 mm, 12 mesh × 0.8 mm, 12 mesh × 0.7 mm, 14 mesh × 0.7 mm, 14 mesh × 0.6 mm, 16 mesh × 0.6 mm.
Surface treatment: black powder coated.
Color: only black color.
Panel width: 750/900/1200/1500 mm.
Panel length: 2000/2400/3000 mm.
Package: waterproof paper covered, then wooden case or pallet packaged.





Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
8 0.80 2.375 55.95 2.56
10 0.90 1.640 41.68 4.05
10 0.50 1.740 46.92 3.20
12 0.70 1.416 44.79 2.94
14 0.60 1.214 44.79 2.52
14 0.50 1.314 52.47 1.75



Mesh/Inch Wire Diameter Aperture Open Area Weight
Inch Inch % Kgs/㎡
8 0.0314 0.0935 55.95 2.56
10 0.0354 0.0645 41.68 4.05
10 0.0314 0.0685 46.92 3.20
12 0.0275 0.0557 44.79 2.94
14 0.0236 0.0478 44.79 2.52
14 0.0196 0.0517 52.47 1.75


Features:



Never rust.
High strength, no rupture.
Corrosion resistance.
Anti-oxidation, antioxidant life expectancy is 13 years.
High temperature resistance.
Low temperature resistance.
Light weight.



11 Mesh × 0.9 Mm Aluminum Alloy Security Screen With Anti Rust Light Weight High Strength 1
A sheet of black window screen gives a clear vision for outside scenery.


Application:

Window screens.
Door screens.

Mountain areas, field, suburbs - anti mosquito and rodent.
Beautiful resident buildings or business district needs unified management - beautiful appearance.
Furthermore, aluminum alloy window screen is also suitable for office buildings, houses, villas, resorts, hospitals, schools, nursing homes and other living areas.

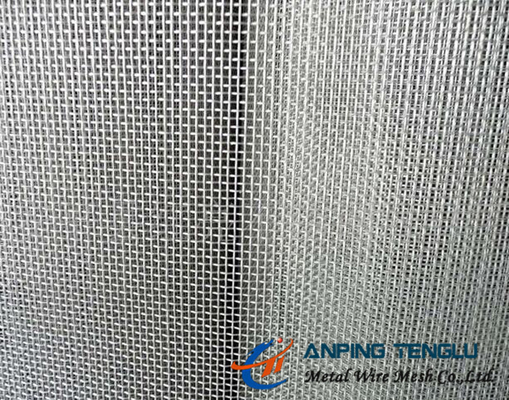

11 Mesh × 0.9 Mm Aluminum Alloy Security Screen With Anti Rust Light Weight High Strength 3The details of black powder coated aluminum alloy security screen with 11 mesh 0.9 mm wire.

Security Window and Door Screen Mesh Product List:


Stainless Steel Security Door Screens
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh

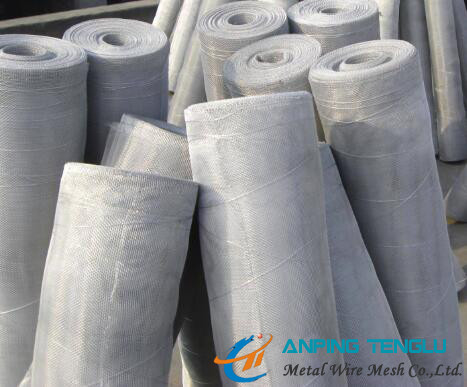

Packing:



11 Mesh × 0.9 Mm Aluminum Alloy Security Screen With Anti Rust Light Weight High Strength 5



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
