0.086mm To 1.2mm Thickness Stainless Steel Dutch Wire Mesh For Effective Liquid Filtration

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details warp with plastic film and waterproof pater, then in pallets or wooden cases
Delivery Time one month
Payment Terms 30% TT in advance, balance before delivery
Supply Ability 1000rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Other Metals Including Brass, Copper And Other Alloy Materials. Width 0.2m, 0.5m, 0.9m, 1m, 1.2m, 1.5m, 2.0m, Etc
Surface Treatment Pickling And Passivation, Polishing. Application Mainly Used To Filter And Separate Liquid And Slurry Products
Mesh Count Up To 325/2300 Weave Type Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch
Wire Diameter 0.90X0.71mm To 0.036X0.024mm Aperture 4um To 350um
High Light

stainless steel dutch wire mesh 0.086mm

,

stainless steel dutch wire mesh 1.2mm

,

effective liquid filtration dutch wire mesh

Leave a Message
Product Description

Product Description:

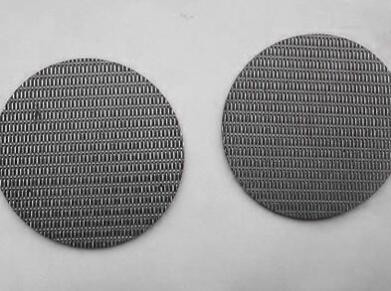

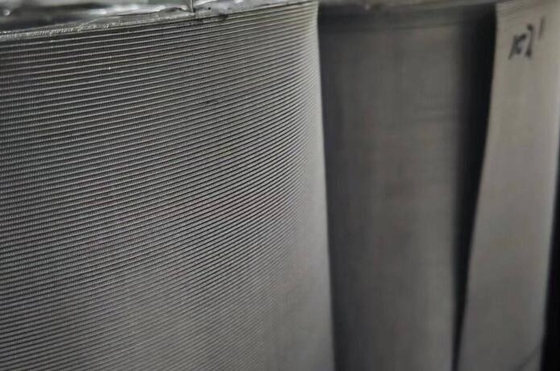

Stainless Steel Dutch Wire Mesh

Stainless Steel Dutch Wire Mesh is a type of woven wire mesh that is made of high-quality stainless steel material. It is known for its durability, strength, and corrosion resistance, making it suitable for various industrial and commercial applications. The mesh is available in different weave types, including Plain Dutch Weave, Twill Dutch Weave, and Reverse Dutch Weave, allowing for different levels of filtration and strength.

Packing

Stainless Steel Dutch Wire Mesh is packed using high-quality materials to ensure its protection during transportation and storage. It is first wrapped in waterproof paper and then covered with a layer of plastic film. Finally, it is placed in sturdy wooden cases for added protection against damage.

Weave Types

Stainless Steel Dutch Wire Mesh is available in three different weave types, each with its own unique characteristics. The Plain Dutch Weave offers excellent strength and filtration capabilities, making it suitable for heavy-duty applications. The Twill Dutch Weave provides a tighter mesh structure, making it ideal for fine filtration requirements. The Reverse Dutch Weave has a coarser mesh structure, making it suitable for high-pressure applications.

Width

Stainless Steel Dutch Wire Mesh is available in various widths to meet different application requirements. The widths range from 0.2m to 2.0m, providing flexibility in terms of size and coverage. This makes it suitable for different types of machinery and equipment.

Other Metals

In addition to stainless steel, Stainless Steel Dutch Wire Mesh can also be made from other metals like brass, copper, and other alloy materials. This allows for more options in terms of strength, corrosion resistance, and cost-effectiveness, depending on the specific application.

Weight

The weight of Stainless Steel Dutch Wire Mesh varies depending on the weave type and the metal used. The weight can range from 0.43kgS/m2 to 6.45KGS/M2, making it suitable for different load-bearing requirements without compromising its strength and durability.

In conclusion, Stainless Steel Dutch Wire Mesh is a versatile and durable product that offers excellent filtration and strength capabilities. Its various weave types, packaging, width, and compatibility with other metals make it a popular choice for a wide range of industrial and commercial applications.



Features:

  • Product Name: Stainless Steel Dutch Wire Mesh
  • Weave Type: Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch
  • Weight: 0.43kgS/m2 To 6.45KGS/M2
  • Wire Diameter: 0.90X0.71mm To 0.036X0.024mm
  • Other Metals: Brass, Copper And Other Alloy Materials
  • Surface Treatment: Pickling And Passivation, Polishing


Technical Parameters:

Width Type Other Metals Length Thickness Mesh Count Application Packing Aperture Surface Treatment
0.2m, 0.5m, 0.9m, 1m, 1.2m, 1.5m, 2.0m, Etc Dutch Wire Mesh Brass, Copper And Other Alloy Materials 10m, 20m, 30m, 50m Or Customized 0.086mm To 1.2mm Up To 325/2300 Mainly Used To Filter And Separate Liquid And Slurry Products Waterproof Paper And Plastic Film, Then In Wooden Cases 4um To 350um Pickling And Passivation, Polishing
Filtration Industry: This product is widely used in the filtration industry, specifically in liquid and slurry filtration processes. Plain Dutch Weave: This type of Dutch wire mesh is characterized by a tightly woven pattern with a smooth surface, making it ideal for fine filtration applications. Twill Dutch Weave: This type of Dutch wire mesh has a twill pattern, allowing for more space between the wires and a higher flow rate. It is commonly used in applications where a high flow rate is necessary. Reverse Dutch Weave: This type of Dutch wire mesh has a reverse pattern, with larger wires on the top and smaller wires on the bottom. This allows for better support and strength, making it suitable for heavy-duty filtration processes. Other Metals: In addition to stainless steel, this Dutch wire mesh can also be made with other metals such as brass, copper, and other alloy materials to meet specific filtration needs. Length: The standard length options for this product are 10m, 20m, 30m, and 50m, but it can also be customized to fit specific requirements. Thickness: This Dutch wire mesh comes in a range of thicknesses from 0.086mm to 1.2mm, allowing for versatility in its use for different filtration processes. Mesh Count: The mesh count for this product can go up to 325/2300, providing a wide range of options for different filtration needs. Application: The main application of this product is for filtering and separating liquid and slurry products in various industries. Packing: To ensure the product's safety during transportation, it is packed with waterproof paper and plastic film, then placed in wooden cases. Aperture: The aperture size for this Dutch wire mesh can range from 4um to 350um, providing precise filtration capabilities for different products. Surface Treatment: The Dutch wire mesh is treated with pickling and passivation, followed by polishing to enhance its corrosion resistance and improve its surface finish.

Applications:

Stainless Steel Dutch Wire Mesh - Your Ultimate Solution for Filtration Industry

Brand Name: QIANPU

Place of Origin: Anping of China

Certification: ISO

Minimum Order Quantity: 10 Rolls

Price: Negotiable

Packaging Details: Warp with plastic film and waterproof paper, then in pallets or wooden cases

Delivery Time: One month

Payment Terms: 30% TT in advance, balance before delivery

Supply Ability: 1000 rolls per month

Wire Diameter: 0.90X0.71mm to 0.036X0.024mm

Mesh Count: Up to 325/2300

Material: Stainless Steel 304, 304L, 316, 316L, etc.

Type: Dutch Wire Mesh

Thickness: 0.086mm to 1.2mm

Product Description

Stainless Steel Dutch Wire Mesh is a high-quality and durable solution for various industries, especially in the filtration industry. It is made of stainless steel 304, 304L, 316, 316L, etc., which provides excellent resistance to corrosion and high temperatures. This makes it suitable for use in harsh environments and demanding applications.

Applications

Stainless Steel Dutch Wire Mesh is widely used in various industries, including:

  • Chemical processing - It is used for filtration and separation of chemicals, preventing contamination and ensuring product quality.
  • Food processing - With its high corrosion resistance, it is ideal for food-grade applications such as sieving and filtering in the food processing industry.
  • Pharmaceutical industry - The precision and reliability of Dutch Wire Mesh make it a popular choice for pharmaceutical applications, such as tablet coating and filtration of active ingredients.
  • Petrochemical industry - It is highly resistant to corrosion from chemicals and high temperatures, making it suitable for use in petrochemical processing and refining.
  • Mining industry - Stainless Steel Dutch Wire Mesh is used in mining operations for separation and filtration of minerals and ores.
  • Water treatment - It is commonly used in water treatment facilities for removing impurities and contaminants from water.
  • Oil and gas industry - The high strength and durability of Dutch Wire Mesh make it suitable for use in oil and gas exploration and production.
Plain Dutch Weave and Twill Dutch Weave

Stainless Steel Dutch Wire Mesh is available in two types of weaves: plain dutch weave and twill dutch weave. The plain dutch weave has a coarser mesh and is designed for high flow rates and heavy loading. It is suitable for applications that require high strength and durability. On the other hand, twill dutch weave has a finer mesh and is ideal for applications that require a high level of precision, such as in the pharmaceutical industry.

Product Features

Stainless Steel Dutch Wire Mesh from QIANPU offers the following key features:

  • High temperature and corrosion resistance - It can withstand extreme temperatures and corrosive environments, making it suitable for use in various industries.
  • Excellent filtration performance - The precision and uniformity of the mesh ensure efficient filtration and separation.
  • Durable and long-lasting - Made of high-quality stainless steel, it is resistant to wear and tear, ensuring a longer lifespan.
  • Easy to clean and maintain - The smooth surface of the mesh makes it easy to clean and maintain, ensuring consistent performance over time.
  • Customizable - We offer a wide range of wire diameters, mesh counts, and material options to meet your specific requirements.

Choose Stainless Steel Dutch Wire Mesh from QIANPU for your filtration needs and experience the highest level of quality and performance. Contact us today to learn more and place your order.



Customization:

Stainless Steel Dutch Wire Mesh - Customized Service
Brand Name: QIANPU
Place of Origin: Anping of China
Certification: ISO
Minimum Order Quantity: 10 Rolls
Price: Negotiable
Packaging Details: Warp with plastic film and waterproof paper, then in pallets or wooden cases
Delivery Time: One month
Payment Terms: 30% TT in advance, balance before delivery
Supply Ability: 1000 rolls per month
Material: Stainless Steel 304, 304L, 316, 316L, etc.
Weight: From 0.43kg/m2 to 6.45kg/m2
Mesh Count: Up to 325/2300
Length: 10m, 20m, 30m, 50m or customized
Other Metals: Brass, Copper and other Alloy Materials


Packing and Shipping:

Packaging and Shipping

Stainless Steel Dutch Wire Mesh is carefully packaged and shipped to ensure its safe delivery to our customers.

The mesh is first wrapped in plastic film to protect it from moisture and dust. It is then placed in a sturdy wooden case or pallet, depending on the size and quantity ordered.

For international shipments, the mesh is packed in compliance with all relevant regulations and standards to ensure hassle-free customs clearance.

We work with trusted and reliable shipping partners to deliver the mesh to our customers in a timely manner. The shipping method and carrier can be chosen by the customer or recommended by our team based on their specific needs and location.

Our team carefully tracks each shipment and provides customers with tracking information and updates. We also offer insurance options for added protection during transit.

With our efficient packaging and shipping process, customers can be confident that their order of Stainless Steel Dutch Wire Mesh will arrive in perfect condition and on time.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name is QIANPU.
  • Q: Where is this product made?
  • A: This product is made in Anping of China.
  • Q: Does this product have any certification?
  • A: Yes, this product is certified by ISO.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity is 10 rolls.
  • Q: Is the price negotiable for this product?
  • A: Yes, the price is negotiable.
  • Q: How is this product packaged?
  • A: This product is wrapped with plastic film and waterproof paper, then placed in pallets or wooden cases.
  • Q: How long does it take for this product to be delivered?
  • A: The delivery time for this product is one month.
  • Q: What are the payment terms for this product?
  • A: The payment terms are 30% TT in advance and the balance before delivery.
  • Q: What is the supply ability for this product?
  • A: The supply ability for this product is 1000 rolls per month.
