0.01 Mm - 5 Mm Dia Wire Mesh Filter Disc For Petroleum Industry

  • 0.01 Mm - 5 Mm Dia Wire Mesh Filter Disc For Petroleum Industry
  • 0.01 Mm - 5 Mm Dia Wire Mesh Filter Disc For Petroleum Industry
  • 0.01 Mm - 5 Mm Dia Wire Mesh Filter Disc For Petroleum Industry
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5000Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Tensile Force Product Name Filter Disc
Material Stainless Steel Wire, Brass Wire, Nickel Wire, Aluminum Wire. Weaving Plain Weave, Twill Weave, Dutch Weave
Shape Round, Rectangular, Square, Crescent And Semicircle, Etc. Layers Single Layer Or Multiple Layers.
Mesh 80 Mesh - 500 Mesh Thickness 0.1mm - 6mm.
Wire Dia. 0.01 Mm - 5 Mm. Disc Diameter 5 Mm - 600 Mm (custom Size: 8 Mm - 3800 Mm).
Filtration Accuracy 0.2 µm - 100 µm. Application Water Filtration, Gas Filtration, Petroleum Industry
Highlight

0.01mm dia wire mesh filter disc

,

petroleum industry wire mesh filter disc

,

5mm dia stainless steel mesh discs
Leave a Message
Product Description

Stainless Steel Filter Disc With Corrosion Resistance Single Layer Or Multiple Layers



Stainless Steel Filter Disc Introduction:



Filter disc is a type of woven wire filter products which is manufactured from stainless steel wire, brass wire, nickel wire and other materials. It is woven into a continuous meshes through plain weave, twill weave and dutch weave. Then the meshes is cut into different shapes, such as round, oval, rectangular, ring and other irregular shapes. They can also be wrapped with edges and some of discs are spot welded into multi-layers.

Filter disc has smooth surface and fine meshes, which can ensure the outstanding filtration performance.



Specification


*Thickness: 0.1mm - 6mm.

*Mesh size: 80 mesh - 500 mesh.

*Weaving type:
Plain weave.
Twill weave.
Dutch weave.

*Material of filter disc
Stainless steel wire. 430, 321, 301, 302, 304, 304L, 316, 316L.
Brass wire.
Nickel wire.
Aluminum wire.

*Disc sizes:
Round shape: Diameter 44mm - 600mm.
Ring shape:
Inner diameter: 18mm - 250mm.
Outer diameter: 50mm - 350mm.
Rectangular shape:
Width: 50mm - 100mm.
Length: 60mm - 400mm.

*Filter disc has various types
Single layer without edge.
Single layer with edge.
Dutch weave filter disc.
Spot welded edge type.
Spot welded without edge type.

*Filter disc with different shapes:
Round shape.
Oval shape.
Ring shape.
Rectangular shape.
Irregular shape.

Stainless steel wire mesh: plain weave specification
Mesh Wire Diameter (mm) Aperture (mm) Material (AISI)
7 × 7 1 2.63 SUS304 SUS316
10 × 10 0.6 1.94
12 × 12 0.5 1.62
16 × 16 0.4 1.19
16 × 16 0.35 1.24
18 × 18 0.35 1.06
20 × 20 0.4 0.87
24 × 24 0.26 0.8
30 × 30 0.3 0.55
35 × 35 0.17 0.56
40 × 40 0.23 0.4
50 × 50 0.2 0.31
60 × 60 0.15 0.27
70 × 70 0.12 0.24
80 × 80 0.13 0.19
90 × 90 0.12 0.16
100 × 100 0.1 0.15
120 × 120 0.09 0.12
150 × 150 0.063 0.11
180 × 180 0.053 0.09
200 × 200 0.053 0.07

Stainless steel wire mesh: twill weave specification
Mesh Wire Diameter. (mm) Aperture (mm) Material (AISI)
250 × 250 0.04 0.063 SUS316
300 × 300 0.04 0.044
325 × 325 0.035 0.043 SUS316L
350 × 350 0.03 0.042
400 × 400 0.03 0.033
450 × 450 0.028 0.028
500 × 500 0.025 0.026

Stainless steel wire mesh: dutch weave specification
Mesh Wire Diameter (mm) Material (AISI)
12 × 64 0.58 × 0.40 SUS304 or SUS316
24 × 110 0.36 × 0.25
14 × 88 0.50 × 0.33
30 × 150 0.23 × 0.18
40 × 200 0.18 × 0.13
50 × 250 0.14 × 0.11
80 × 700 0.10 × 0.08
165 × 800 0.071 × 0.040
165 × 1400 0.06 × 0.04
200 × 1800 0.05 × 0.032
825 × 2300 0.035 × 0.025 SUS316L
Other specifications as your requests.



Features:



Acid and alkali resistance.
Rust resistance.
Wear resistance.
High temperature resistance.
High tensile strength.
Outstanding filtration performance.
Various shapes are suitable for different equipment.
Multi-layer filter disc for better filtration performance.
Spot welded and wrapped edges for durability and stability.



Applications:



The filter disc is widely used in filtering of gas and liquid in the field of petroleum, chemical industry, chemical fiber, rubber production, metallurgy, medicine and food industry.

Stainless steel filter discs with high acid and alkali resistance can be used in very hash conditions.

Water filtration: sewage water treatment and distribution, etc.
Gas filtration: aerospace hydraulic, high temperature gas, gas distribution system, etc.
Petroleum industry: oil sands separation, lubricating oil, hydraulic start oil filter, etc.
Metallurgy: acid cleaning mesh in electric plating industry, etc.
Other fields: high pressure filter medium, chemical industry, pharmacy, machinery, dust removal, fluidized, etc.

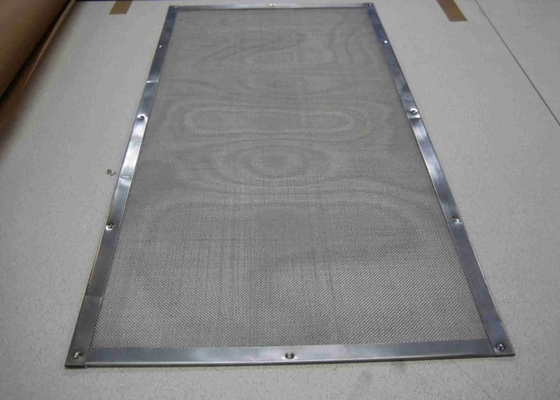

0.01 Mm - 5 Mm Dia Wire Mesh Filter Disc For Petroleum Industry 0

0.01 Mm - 5 Mm Dia Wire Mesh Filter Disc For Petroleum Industry 1

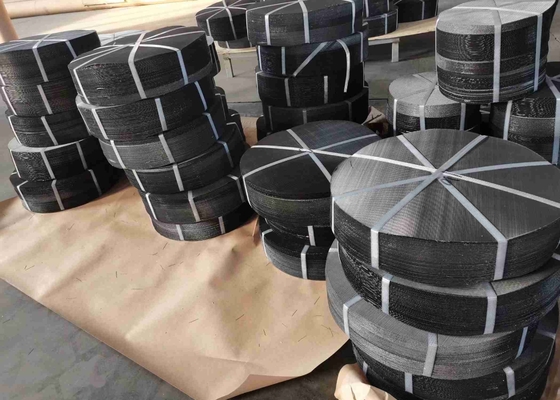

Packing:



Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh
