Ss304 Metal Mesh Security Screens Black Powder Coated 0.19mm Wire 1.4mm Hole

  • Ss304 Metal Mesh Security Screens Black Powder Coated 0.19mm Wire 1.4mm Hole
  • Ss304 Metal Mesh Security Screens Black Powder Coated 0.19mm Wire 1.4mm Hole
  • Ss304 Metal Mesh Security Screens Black Powder Coated 0.19mm Wire 1.4mm Hole
  • Ss304 Metal Mesh Security Screens Black Powder Coated 0.19mm Wire 1.4mm Hole
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Very Light Weight, Good Effect For Insect Prevents, Good Light Transmittance, Good Air Permeability, Good Corrosion Resistance, Fire Resistance Product Name Stainless Steel Fine Wire Mesh Insect Screen
Material Stainless Steel 304 Hole Shape Square Hole
Clear Hole 1.4mm X 1.4mm Wire Diameter 0.19mm
Color Black Width 1m
Length 30m Application Widely Used As The Insect Prevent Material For Doors And Windows In Houses, Office Buildings, Livestock Farms.
Highlight

ss304 metal mesh security screens

,

powder coated metal mesh security screens

,

fine 304 stainless steel security screens
Leave a Message
Product Description

Stainless Steel Fine Wire Mesh Insect Screen SS304 With Black Powder Coated 0.19mm Wire 1.4mm Hole



Introduction:



Stainless steel window screen is a kind of stainless steel woven mesh, it is made of high quality stainless steel wire by woven machine, the product can be provided in rolls or panels.



Stainless steel window screen has stainless steel insect mesh and stainless steel bullet proof mesh two types.



Stainless steel window screens offer exceptional wear resistance and increased visibility due to the finer wire diameter. This insect mesh is much sturdier than standard insect screens, providing excellent airflow and meeting high standards for insect protection.


Stainless steel insect mesh, also called stainless steel mosquito mesh, it is a common type widely used stainless steel mesh screen. The wire diameter of insect mesh is small( below 0.3mm), the mosquito net is very thin and light, easy for cutting and installation. Normally used in windows and doors in the building.

SS304, SS304L, SS316, SS316L, we can also provide iron or galvanized mesh according to clients' requirement.

Weave Type: Plain Weave


Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum



Surface Treatment:


Naturel surface of stainless steel or PVC coating or spray painting, the color is normally in black.


Specifications:



Weave type: plain weave.
Material: stainless steel wire.
Surface treatment: powder coated.
Color: black, gray and white. Other colors are also available at your requests.


Common Specificaitons of Stainless Steel Insect Mesh
Material Mesh Count Wire Diameter(mm) Roll Size
SS304/316L 18 0.16 3'*100'
4'*100'
1*25m
1.2*30m
1.5*25m
20 0.18
20 0.23
20 0.25
22 0.15
22 0.16
24 0.16
24 0.18
Iron Wire
Surface:Galvanized&baking finish(Mostly in Green of Atrovirens)		 10 0.25
14 0.23
16 0.21
18 0.19
18*14 0.19
22 0.16
24 0.16


Features:

Very light weight, Good effect for insect prevents, Good light transmittance, Good air permeability, Good corrosion resistance, Fire resistance.



As an excellent building material, stainless steel mosquito mesh is a type of stainless steel wire mesh with fine wire diameter and low mesh count. Stainless steel mosquito mesh has a very effective mosquito and fly prevention effect, not only for ordinary mosquitoes, flies, and insects but also for very small midges that grow in humid areas.



Due to high temperature resistance, corrosion resistance, and ease of cleaning, stainless steel mosquito net is a superior material for door and window protection compared to typical nylon and wire mesh window screens.



Stainless steel window screens are a better choice as they offer enhanced durability and protection. It also allows good airflow, black finish for superior visibility. Can be ely used with pressure-treated wood.







Application:

Stainless steel insect mesh is widely used as the insect prevent material for doors and windows in houses, office buildings, livestock farms.

Ss304 Metal Mesh Security Screens Black Powder Coated 0.19mm Wire 1.4mm Hole 1



Security Window and Door Screen Mesh Product List:


Stainless Steel Security Door Screens
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh

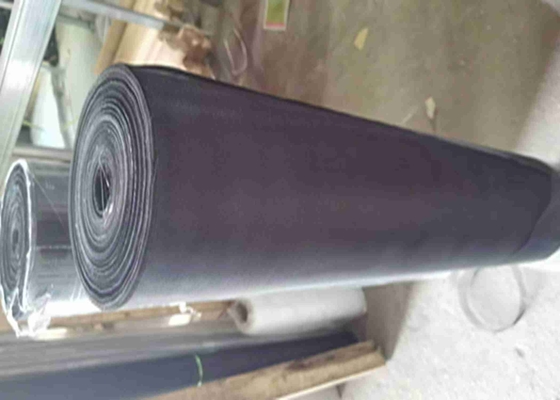

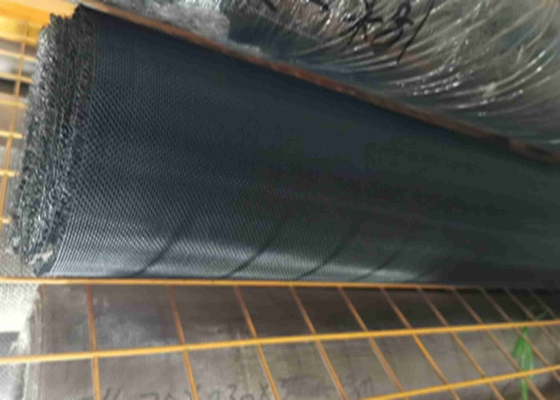

Packing:



Ss304 Metal Mesh Security Screens Black Powder Coated 0.19mm Wire 1.4mm Hole 2

Ss304 Metal Mesh Security Screens Black Powder Coated 0.19mm Wire 1.4mm Hole 3



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
