12.7mm Opening 0.8mm Stainless Weld Mesh 2m Width

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 20Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Features Durable And Strong Material SS304
Color Bright Silver Technique Type Welded
Wire Diameter 0.8mm Clear Opening 12.7mm
Width 2m Length 30m
Application Widely Used In Industry, Agriculture, Construction, Breeding, Transport, Mining Exploitation, Transport, Entertainment Facilities And Other Public Places. Product Name Stainless Steel Welded Wire Mesh
High Light

12.7mm opening stainless weld mesh


0.8mm stainless weld mesh


2m width stainless welded wire mesh

Leave a Message
Product Description

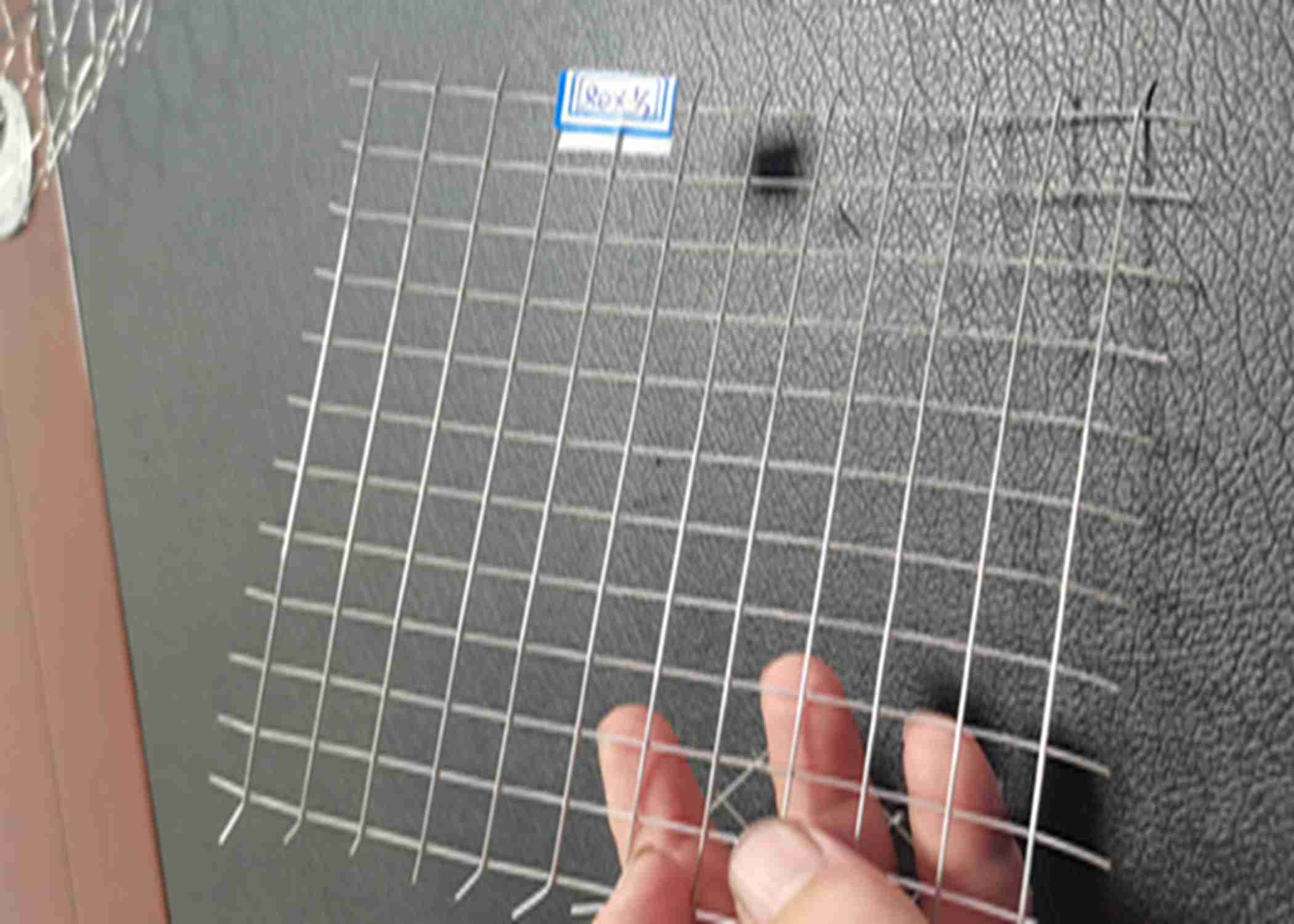

Stainless Steel Mesh 12.7mm Opening 0.8mm Wire 2m Width Welded Metal Mesh


Steel Welded Mesh Introduction


Along with woven wire mesh, welded wire mesh is one of the two main types of wire cloth products. Welded wire mesh is typically the less expensive of the two materials. It consists of a grid pattern featuring a series of parallel longitudinal wires that are welded together at the point where the wires intersect. The strength and thickness of the weld are determined by factors such as weld pressure, time and temperature. Welded wire mesh can also be bent or cut to form a variety of shapes without causing the wires to come apart.


Welded wire mesh’s mat-like design and construction enables it to remain firmly in place even when holding heavy materials such as concrete. It works well in bending applications, as the mat is bent as a single unit instead of a series of pieces. This also minimizes the risk of misplacement. Welded wire mesh offers a cost-effective alternative, as it requires less reinforcement than when using steel bars.


Welded wire cloth is also easier to work with than many other types of metal materials. Welded wire fabric is quick and simple to install and is not easily displaced by workers laying concrete. The ease of use can reduce completion time and help projects remain on budget. Faster construction time also minimizes the exposure of building components to the elements, resulting in higher-quality work.


Specifications US Metric
Mesh Size 1/2” 1.27cm
Wire Diameter 0.0315” 0.8mm
Width 78.74” 2m
Length 100ft 30.5m
Packing: Water-proof paper first then plastic film, in wooden case or pallets.
Nearest Port: Tianjin(By Sea); Beijing(By Air).



Mesh Size Wire Diameter Width
In Inch In MM BWG mm m
1/4" x 1/4" 6.4x6.4 25 0.5 0.914-1.0m
3/8" x 3/8" 10.6x10.6 22 0.71 0.914-1.0m
1/2" x 1/2" 12.7x12.7 21 0.81 0.914-1.5m
5/8" x 5/8" 16x16 20 0.9 0.914-1.5m
3/4" x3/4" 19.1x19.1 20 0.9 0.914-1.5m
1" x 1" 25.4x25.4 19 1.0 0.914-1.5m
1" x 1/2" 25.4x12.7 20 0.9 0.914-1.5m
1.5" x 1.5" 38x38 18 1.22 0.914-1.5m
1" x 2" 25.4x50.8 16 1.65 0.914-1.80m
2" x 2" 50.8x50.8 14 2.0 0.914-1.80m
3" x 3" 75x75 14 2.0 0.914-1.80m
4" x4" 100x100 14 2.0 0.914-1.80m

Width: 3', 4', 5', 6', 7'; Packing, other width, length specification can be at buyer's option.


Others dimensions at your special need.


Material: Stainless Steel 304

304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.



Long term performance
Minimal maintenance
Life cycle costing
Low environmental impact



Bird Aviaries
Louvre Mesh / Bird Proofing
Vermin & Rodent Mesh
Roof Safety Mesh
welded wire mesh railing, welded wire infill panels

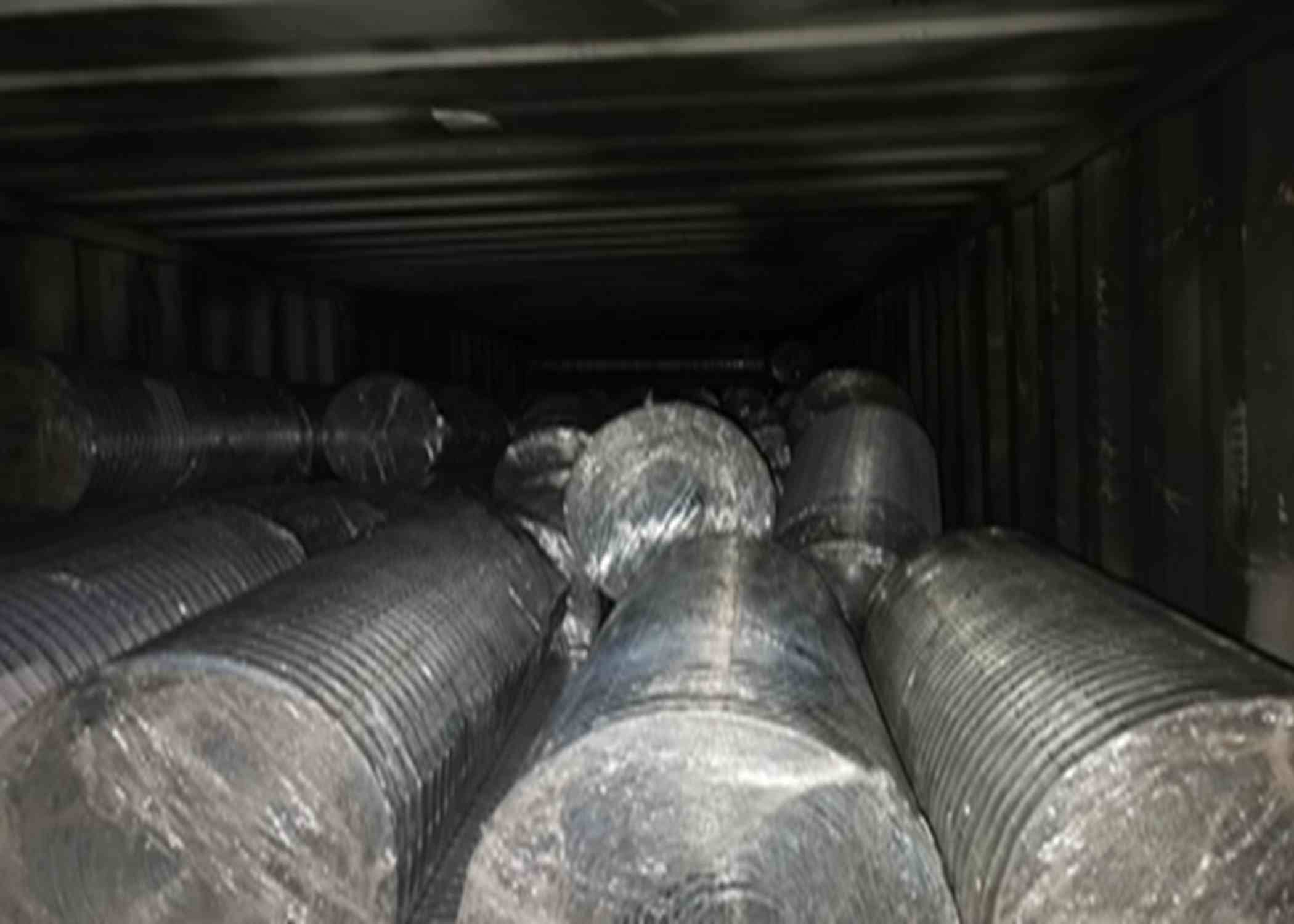

Inside with a paper tube, outside with plastic film or waterproof paper, then pallets.
