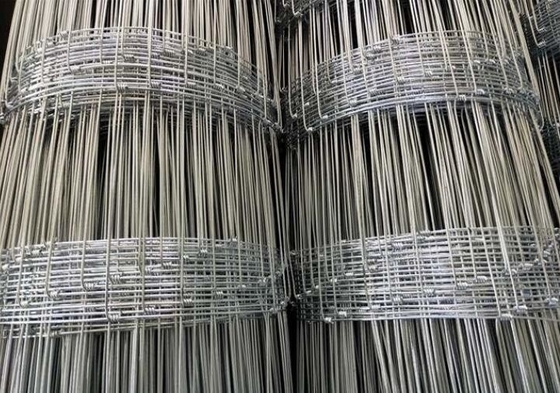

Corrosion Resistance Hinge Joint Wire Mesh Used As Field Fence High Strength
Place of Origin | Anping of China |
---|---|
Brand Name | QIANPU |
Certification | ISO |
Minimum Order Quantity | 50Rolls |
Price | Negotiable |
Packaging Details | Warpped with plastic film, then in wooden case or pallets; ; Or as requirements. |
Delivery Time | 2weeks |
Payment Terms | T/T, Western Union, L/C |
Supply Ability | 3000rolls per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | High Strength Corrosion Resistance | Product Name | Hinge Joint Wire Mesh |
---|---|---|---|
Material | Galvanized Wire | Wire Diameter | 1.0mm To 3.5 |
Stay Wire Spacing | 1/2", 1", 1-1/4", 1-1/2", 2", 3", 4", 5", 6" | Roll Width | 0.8m To 2.5m |
Roll Length | 50m, 100m, 200m | Applications | Field Fence |
Highlight | Corrosion Resistance Hinge Joint Wire Mesh,Hinge Joint Wire Mesh High Strength,hinge joint fence wire High Strength |
Hinge Joint Wire Mesh Used As Field Fence With High Strength Corrosion Resistance
Introduction:

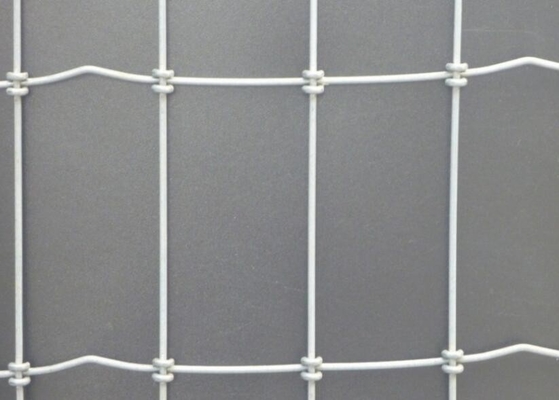

This type of wire fence has four wrap hinge joints, in which two vertical stay wires wrap together to form hinged joint. The knot acts as a hinge that gives under pressure, then springs back into shape. This structure provides easy installation because the hinge "gives" while retaining full height for continuing protection and good looks. Vertical wires are individually cut and wrapped for maximum strength and flexibility.
Hinge joint fencing is the best choice of ranchers for protecting the jumping animals like deers, horses and cows, sheep and goats. The hinge-knot system ensures proper stretching and allows for easier installation over hilly or rough terrain. Uses of our hinge-joint knots allow the fence to give under pressure and spring back into shape. The heavy zinc coating of the wire offers the finished fencing good rust resisting and corrosion.
Common hinged joint fencing is made from galvanized wire with a wire diameter of 2.5 mm and the top and bottom wire are made with wire diameter of 2.8 mm. Fence height is normally from 0.8m to 2m. A variety of heights, hole mesh, spacing and styles are offered for more choices.
Material:
High strength galvanized steel wire, Hot-dipped Galvanized iron wire
Features:
It is simple in structure, easy to maintain, easy to install, less weight, easy for transport and easy ventilation. With reasonable structure, beautiful appearance, tensile strength, high corrosion resistance, etc.
Application:
Hinge joint wire mesh is a kind of mesh fence used in cattle, goat, deer, and pig. It is used for grassland, pastures, protection of ecological projects, protecting grassland, forestry, highway, and environments. Mainly used for grass, pasture fencing, and ecological protection projects.
Specifications
Mesh Wire diameter:1.8mm~2.5mm
Edge wire diameter: 2.0mm~3.5mm
Sizes | Number of Warp Wire | Roll Width | Warp & Weft Wire Diameter | ||
Edge Warp Wire | Middle Weft Wire | Warp Wire | |||
5/70/15 | 5 | 700mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
7/80/15 | 7 | 800mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
8/80/15 | 8 | 800mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
8/90/15 | 8 | 900mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
8/100/15 | 8 | 1000mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
8/115/15 | 8 | 1150mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
9/100/15 | 9 | 1000mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
9/125/15 | 9 | 1250mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
10/120/15 | 10 | 1200mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
10/130/15 | 10 | 1300mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
11/140/15 | 11 | 1400mm | 2.0-3.5mm | 1.8-2.5mm | 1.8-2.5mm |
Item | Specification | The top and bottom wires diameter | The middle wires diameter | Roll diameter |
7/150/813/50 | 102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
8/150/813/50 | 89(75)+89+102+114+127+140+152 | 2.5 | 2.0 | 280 |
8/150/902/50 | 89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
8/150/1016/50 | 102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 |
8/150/1143/50 | 114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
9/150/1245/50 | 102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 |
10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
Note: the item numbers: the first number means the number of wire of width; the second number means distance of horizontal wires (mm); the third number means the height of mesh(mm); the fourth number means length of mesh(m). We can also produce the mesh according to the customers special requirements. |
