Galvanized Stainless Steel Hexagonal Wire Mesh Anti Corrosion 5m To 50m
Place of Origin | Anping of China |
---|---|
Brand Name | QIANPU |
Certification | ISO |
Minimum Order Quantity | 50Rolls |
Price | Negotiable |
Packaging Details | Warpped with plastic film, then in wooden case or pallets; ; Or as requirements. |
Delivery Time | 2weeks |
Payment Terms | T/T, Western Union, L/C |
Supply Ability | 3000rolls per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Anti-Corrosion Anti-Rust | Product Name | Hexagonal Wire Mesh |
---|---|---|---|
Material | Galvanized Wire, Stainless Steel, Pvc Coated, Etc | Wire Diameter | BWG16 17 18 19 20 21 22 23 24 25 26 27 Etc |
Hole Size | 3/8" To 4" | Roll Width | 12" To 96" |
Roll Length | 5m To 50m | Applications | Used For Fence |
Highlight | Hexagonal Wire Mesh Anti Corrosion,Hexagonal Wire Mesh 50m,Galvanized Wire Mesh Anti Corrosion |
Galvanized Or PVC Coated Chain Link Mesh For Fence Of With Rust And Corrosion Resistance
Introduction:

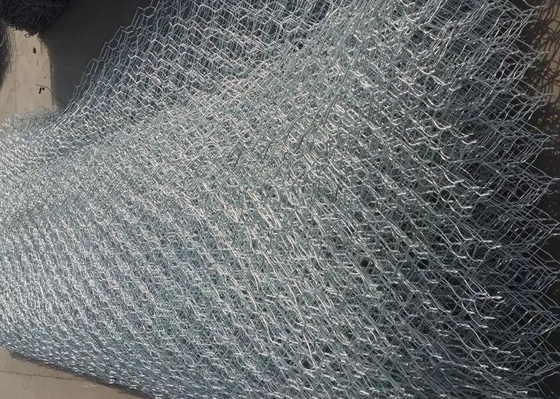

The hexagonal wire mesh has hexagonal holes of the same size. The material is mainly low carbon steel. According to different surface treatments, hexagonal wire mesh can be divided into two types: galvanized metal wire and PVC coated metal wire. The wire diameter of the galvanized hexagonal wire mesh is 0.3 mm to 2.0 mm, and the wire diameter of the PVC-coated hexagonal wire mesh is 0.8 mm to 2.6 mm. Hexagonal net has good flexibility and corrosion resistance, and is widely used as a gabion net to protect slopes. According to different applications, hexagonal wire mesh can be divided into chicken wire and slope protection wire (or gabion net), the former has a smaller mesh.
Twist style: Normal twist, Reverse twist
Material:
Hexagonal wire mesh: hot dipped galvanized after weaving.
Hexagonal wire mesh: hot dipped galvanized before weaving
Hexagonal wire mesh: electro galvanized after weaving.
Hexagonal wire mesh: electro galvanized before weaving.
Hexagonal wire mesh: PVC coated.
Hexagonal wire mesh: in stainless steel
Features:
Easy construction, no special techniques
Strong corrosion resistance and weather resistance
Good stability and not easy collapse
Good flexibility to increase the buffer force of objects
Easy installation and saving transportation costs
A long service life
Application:
Feeding chicken, rabbit, duck, geese, fish and other poultry or small animals.
Protect vegetable, flower or small plant from poultry.
Indoor decoration, window screen, door screen, children play ground fence.
Arts, crafts and sculptures.
Sieve, filter and mold control.
Fruit cage, defense mouse, bird, cat, dog, squirrel and fox.
Gabion basket, gabion sack.
Wall's fix, keep warm and isolate heat.
Prevent rocks and debris from falling onto roads and railways.
Hold plaster, cement on roof, wall, ceiling, floor or tile to reinforce them.
Specifications
Stainless Steel Hexagonal Wire Mesh |
|||
Mesh |
Width |
Wire Gauge(Diameter) BWG |
|
Inch |
mm |
Inch |
|
3/8’’ |
10mm |
12”-36” |
27, 26, 25, 24, 23 |
1/2’’ |
13mm |
12”-96” |
25, 24, 23, 22, 21 |
5/8’’ |
16mm |
12”-96” |
27, 26, 25, 24, 23, 22 |
3/4’’ |
20mm |
12”-96” |
25, 24, 23, 22, 21, 20, 19 |
1’’ |
25mm |
12”-96” |
25, 24, 23, 22, 21, 20, 19, 18 |
1-1/4’’ |
31mm |
12”-96” |
23, 22, 21, 20, 19, 18 |
1-1/2’’ |
40mm |
12”-96” |
23, 22, 21, 20, 19, 18 |
2’’ |
50mm |
12”-96” |
23, 22, 21, 20, 19, 18 |
2-1/2’’ |
65mm |
12”-96” |
21, 20, 19, 18 |
3’’ |
75mm |
12”-96” |
20, 19, 18, 17 |
4’’ |
100mm |
12”-96” |
19, 18, 17, 16 |
Special specification are available according to customer's requirement.
Drawing:

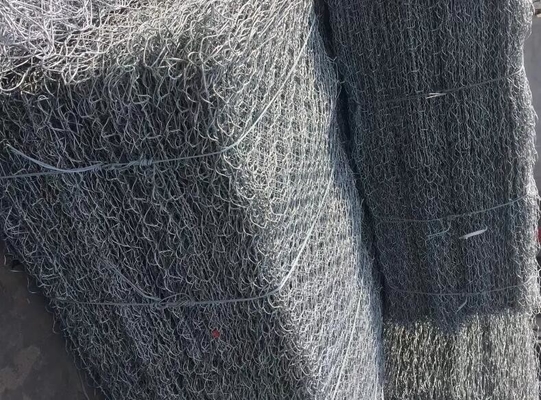

Packing:
