high tensile Fixed Knot Metal Wire Mesh Fence for Horse Sheep Cattle 0.8m to 2.5m

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets; ; Or as requirements.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 3000rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Corrosion Resistance Product Name Fixed Knot Mesh Fence
Material Galvanized Wire Wire Diameter 2.5mm 2.0mm Etc
Stay Wire Spacing 75mm, 220mm, Etc Roll Width 0.8m To 2.5m
Roll Length 50m, 100m, 200m, Etc Applications Farm Fence, Field Fence, Grass Land Fence
High Light

high tensile Metal Wire Mesh Fence

,

high tensile cattle mesh fence

,

Metal Wire Mesh Fence 0.8m

Leave a Message
Product Description

Galvanized Steel Fixed Knot Mesh Fence for Horse Sheep Cattle



Introduction:



Fixed knot fence is a kind of woven wire mesh field fencing with stronger wire fabrics and can be installed quickly with fewer fence posts. This means that fixed knots brings reduced cost and less maintenance compared with other wire structures.


This procedure to establish the technical requirements related to Fixed knot fence, described purchasing offer. Specifications related wire mesh and type of knot required for the fence supplied described.





Material:



Galvanized or HDG hot dipped galvanized high tensile steel wire




Features:



Fixed knot fence locks vertical and horizontal wires together with a smooth, animal-friendly strong knot for an effective, affordable fence for all occasions.



Application:



Fixed knot fence are mainly used in the farm and pastures for animal fencing including deer fences and horse fences.



Specifications



8 Line Wires LAMB FENCING

Diam Top and Bottom wires 2,5 mm
Diam Line Wires 2,5 mm
Diam Stay wires 2,5 mm
Knot wire 2,5 mm
Nominal height 800 mm
Line Wire spacing 152 / 127x4/ 76x2 mm
Stay wire spacing 220 mm



12 Line Wires ‘’HORSE FENCING’’

Diam Top and Bottom wires 2,5 mm
Diam Line Wires 2,5 mm
Diam Stay wires 2,5 mm
Knot wire 2,5 mm
Nominal height 1070 mm
Line Wire spacing 102x9 mm
Stay wire spacing 75 mm



13 Line Wires ‘’DEER FENCING’’

Diam Top and Bottom wires 2,0 mm
Diam Line Wires 2,0mm
Diam Stay wires 2,0 mm
Knot wire 2,0 mm
Nominal height 1900 mm
Line Wire spacing 178x5 /152x5/127x2 mm
Stay wire spacing 220 mm

Other Specifications according to your requirements.

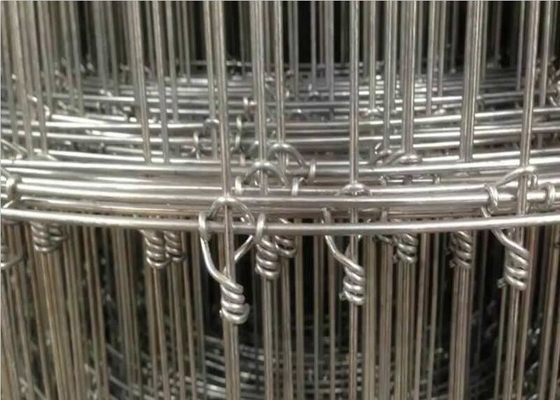

high tensile Fixed Knot  Metal Wire Mesh Fence for Horse Sheep Cattle 0.8m to 2.5m 0

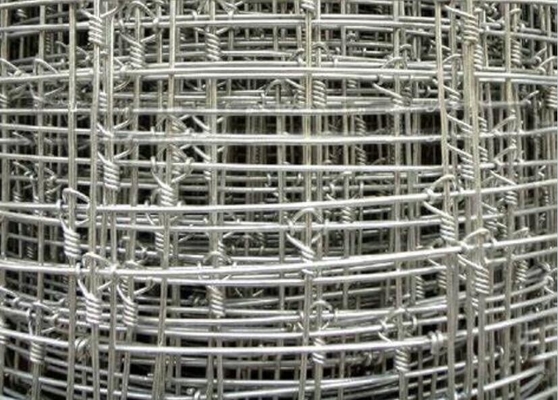

high tensile Fixed Knot  Metal Wire Mesh Fence for Horse Sheep Cattle 0.8m to 2.5m 1

Packing:

high tensile Fixed Knot  Metal Wire Mesh Fence for Horse Sheep Cattle 0.8m to 2.5m 2
