0.0177"X0.0139" Wire Aperture 192μM Plain Dutch Weave Mesh 12.5X76 Mesh

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | High Tensile Strength And Can Operate Under Heavy Pressure. | Product Name | Plain Dutch Wire Mesh |
---|---|---|---|
Material | SS304 SS316 | Surface | Bright Silver |
Mesh Counts | 12.5 X 76 | Wire Dia. | 0.0177"x0.0139" |
Weaving Type | Plain Dutch Weave (PDW) | Roll Width | 1.0m, 1.2m, 1.5m, 1.6m; 36", 48", Etc |
Roll Length | 10m, 20m, 30m, 100', Etc | Application | Absorption, Evaporation And Filtration Process In Petroleum, Chemical, Etc |
Highlight | 192μM Plain Dutch Weave Mesh,Plain Dutch Weave Mesh 12.5X76 Mesh,dutch weave wire mesh 12.5X76 Mesh |

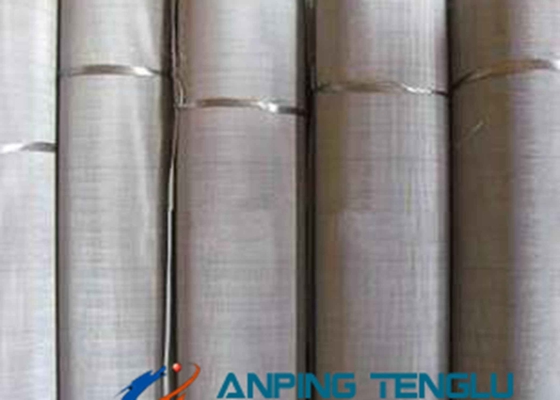

12.5X76 Mesh 0.0177"x0.0139" Wire aperture 192μm Plain Dutch Weave Stainless Steel Dutch Wire Mesh
Plain Dutch Weave Wire Introduction:
In a Plain Dutch Weave, the diameter of the warp wire is larger than the weft. The mesh is formed by weaving a limited number of warps with the maximum number of weft wires woven tightly together, producing a cloth with no readily visible apertures. This mesh is strong and stable, easy to clean and with a good flow rate suitable for high-pressure liquid/solid separation.
12.5X76 mesh plain dutch weave stainless steel wire mesh use 0.45X0.355mm diameter wire, by plain dutch weaving, woven 12.5X76 mesh opening for 192μm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better
Specifications
Mesh Counts | Wire Diameter | Aperture | Weight | ||
mm | Inch | um | kgs/㎡ | lbs/㎡ | |
12.5X76 | 0.45×0.355 | 0.0177"x0.0139" | 192 | 3.02 | 6.64 |
Common Specifications of Plain Dutch Wire Mesh
Mesh Counts warp×weft (Mesh/Inch) |
Wire Diameter warp×weft (mm) |
Aperture Size (μm) |
Weight (kg/㎡) |
Thickness (mm) |
7×40 | 0.9×0.71 | 347 | 6.65 | 2.32 |
7×44 | 0.71×0.63 | 319 | 5.55 | 1.97 |
8×45 | 0.8×0.6 | 310 | 5.7 | 2.00 |
8.5×60 | 0.63×0.45 | 296 | 4.16 | 1.53 |
8×85 | 0.45×0.315 | 275 | 2.73 | 1.08 |
10×90 | 0.45×0.28 | 249 | 2.57 | 1.01 |
10×76 | 0.5×0.355 | 248 | 3.24 | 1.21 |
12×86 | 0.45×0.315 | 211 | 2.93 | 1.08 |
12×64 | 0.56×0.4 | 3.89 | 1.36 | |
12.5×76 | 0.45×0.355 | 192 | 3.26 | 1.16 |
14×100 | 0.40×0.28 | 182 | 2.62 | 0.96 |
14×110 | 0.355×.0.25 | 177 | 2.28 | 0.855 |
14×76 | 0.45×.0.355 | 173 | 3.33 | 1.16 |
16×100 | 0.4×0.28 | 160 | 2.7 | 0.96 |
17×120 | 0.355×0.224 | 155 | 2.19 | 0.803 |
16×120 | 0.28×0.224 | 145 | 1.97 | 0.728 |
20×140 | 0.315×0.20 | 133 | 0.715 | |
20×170 | 0.25×0.16 | 130 | 1.56 | 0.57 |
20×110 | 0.355×0.25 | 126 | 2.47 | 0.855 |
22×120 | 0.315×0.224 | 115 | 2.20 | 0.763 |
25×140 | 0.28×0.2 | 100 | 1.96 | 0.68 |
24×110 | 0.355×0.25 | 97 | 2.60 | 0.855 |
28×150 | 0.28×0.18 | 92 | 1.87 | 0.64 |
30×150 | 0.25×0.18 | 82 | 1.79 | 0.61 |
30×140 | 0.315×0.20 | 77 | 2.21 | 0.715 |
35×190 | 0.224×0.14 | 74 | 1.47 | 0.504 |
35×170 | 0.224×0.16 | 69 | 1.62 | 0.544 |
40×200 | 0.18×0.135 | 63 | 1.24 | 0.43 |
45×250 | 0.16×0.11 | 56 | 1.11 | 0.384 |
50×300 | 0.16×0.09 | 55 | 0.98 | 0.34 |
60×500 | 0.14×0.055 | 51 | 0.70 | 0.252 |
50×270 | 0.14×0.10 | 50 | 0.98 | 0.34 |
70×930 | 0.10×0.03 | 30 | 0.39 | 0.16 |
65×390 | 0.125×0.071 | 42 | 0.78 | 0.267 |
60×300 | 0.14×0.09 | 41 | 0.96 | 0.32 |
80×700 | 0.125×0.04 | 40 | 0.60 | 0.205 |
60×270 | 0.14×0.1 | 39 | 1.03 | 0.34 |
77×560 | 0.14×0.05 | 38 | 0.74 | 0.24 |
80×600 | 0.1×0.045 | 37 | 0.53 | 0.19 |
70×390 | 0.112×0.071 | 0.74 | 0.254 | |
65×750 | 0.10×0.036 | 36 | 0.43 | 0.172 |
70×340 | 0.125×0.08 | 35 | 0.86 | 0.285 |
80×430 | 0.125×0.063 | 32 | 0.77 | 0.251 |
100×1200 | 0.063×0.023 | 23 | 0.27 | 0.109 |
118×750 | 0.063×0.036 | 0.38 | 0.135 |
Features:
Excellent filtration performance;
Acid resistance;
High temperature resistance;
Tensil and abrasion resistence;
Stability of filtration;
Fine and high precision;
Special filtration performance.
Fine mesh holes give very high filter precision.
High tensile strength and can operate under heavy pressure.
Has a solid structure and a long service life.
Material:
Stainless Steel 304, 304L, 316, 316L, etc.
Weaving methods:
Plain Dutch Weave("Warp×Weft" same meaning to "Warp×Shute")
Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker and arranged wider apart.
Application:
woven wire cloth is mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks. And can be made to extruder screens for melt filtration.

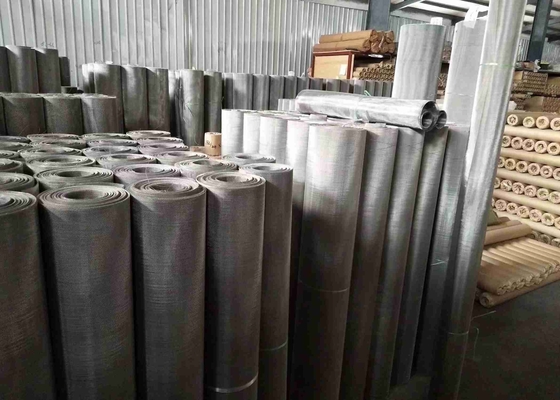

Packing:
Questions: What specs are needed to quote?
Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
