80×600mesh 0.0039"×0.0017" Wire Plain Dutch Weave Stainless Steel Wire Mesh 37um Aperture

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 Roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Outstanding Filtration Performance Product Name Plain Dutch Wire Mesh
Material SS304 SS316 Surface Bright Silver
Mesh Counts 80×600 Wire Dia. 0.0039"×0.0017"
Weaving Type Plain Dutch Weave (PDW) Roll Width 1.0m, 1.2m, 1.5m, 1.6m; 36", 48", Etc
Roll Length 10m, 20m, 30m, 100', Etc Application Separating Filtering Diffusing
High Light

Stainless Steel Wire Mesh 37um Aperture

,

plain dutch weave mesh 37um Aperture

,

80×600mesh Stainless Steel Wire Mesh

Leave a Message
Product Description

80×600 Mesh 0.0039"×0.0017" Wire 37um Aperture Plain Dutch Weave Stainless Steel Wire Mesh





Stainless Steel Plain Dutch Weave Wire Mesh



Woven in an over and under pattern, but warp wires are heavier, larger in diameter than shute wires, which are driven very close to create a high density wire mesh with much lower flow rates and much higher particle retention than plain square weaves.



Characteristics:



1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh



Features:



Excellent filtration performance;

Acid resistance;
High temperature resistance;
Tensil and abrasion resistence;
Stability of filtration;
Fine and high precision;
Special filtration performance.



Material: Stainless Steel 304, 304L, 316, 316L, etc.





Specifications



Roll Width: 0.2m-1.6m

Roll Length: 10m, 20m, 30m; 100ft

Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
80×600 0.10×0.045 0.0039×0.0017 37 0.50 1.10



Common Specifications of Plain Dutch Wire Mesh

Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)

7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135





Weaving methods: Plain Dutch Weave("Warp×Weft" same meaning to "Warp×Shute")



Dutch weave wire mesh also known as “Hollander weave mesh” is ideal for high-pressure filtration as this is stronger and more durable than plain weave wire meshes. The Dutch uses larger diameters and each weave pattern is made up of a limited number of warp wires, which are interwoven with weft wires creating a cloth that can withstand strong pressure. This type of mesh is usually used for liquid filtration for petrochemical, aerospace, pharmaceutical and even on wastewater treatment facilities.



The stainless plain Dutch weave wire mesh is manufactured by using small and big wires together. Small wires, often of micron size, are woven with a bigger warp wire. The small wires are woven as tightly as possible to ensure that the mesh is taut making it ideal for filtration especially when it comes to separating liquid matter from solid materials. When viewed diagonally, one can see a triangular pattern developed due to the uneven and winding weaving motion.





Application:


Mainly used for filtering and sieving, extensively used in petroleum, chemical industry, enviroment protection, mine, airspace, paper-making, electronic, metallurgy etc.

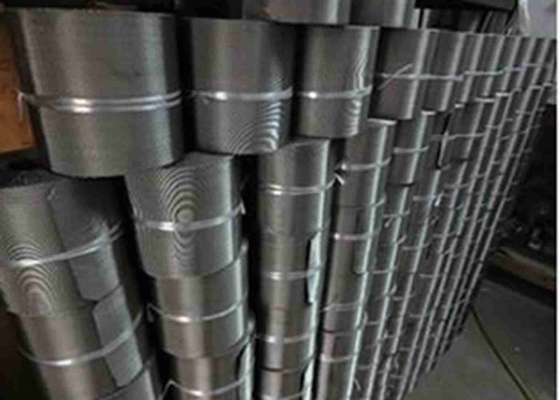

Packing:











Packing:



80×600mesh 0.0039"×0.0017" Wire Plain Dutch Weave Stainless Steel Wire Mesh 37um Aperture 0





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
