Precrimped Type Hard Mesh Decorative Metal Mesh For Building Facade Cladding

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10units
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features With Its Smooth Flat Surface, The Mesh Can Reflect Light And Make The Buildings Become More Bright And Attractive. Name Hard Mesh
Material Stainless Steel 304, 316 Or 316L, Brass, Aluminum, Copper, Aluminum Alloy, Etc. Color Gold, Silver, Copper, Gun-black, Natural Color, Etc.
WeaveType Precrimped Shape Round, Length, Square, Scale Hole, Hexagonal Hole, Plum Blossom And So On.
Weave Type Plain Weave, Twill Weave. Applications Facade Cladding
High Light

Precrimped Decorative Metal Mesh

,

Facade Cladding Crimped Metal Mesh

,

Precrimped hard metal mesh

Leave a Message
Product Description

Hard Mesh PreCrimped Type Widely Used for Building Facade Cladding



Introductioin:



The appearance of hard mesh is similar to cable metal facade mesh and conveyor wire mesh, but it can not be rolled longitudinally or transversely. Because of being manufactured from stainless steel wire, copper wire, brass wire and bronze wire, the hard mesh gains a rigid and durable structure. With its smooth flat surface, the mesh can reflect light and make the buildings become more bright and attractive.



The versatile hard mesh is particularly suitable for exterior facade as well as interior design, such as facade cladding in the office buildings, hospitals, shopping malls, and other high grade buildings. Hard facade wire mesh is also widely used as elevator mesh in the interior or exterior decorations, and handrail and balustrade in the balconies.



Specifications:



Open Area:

48%

18%

Weight in SS:

1.28 lbs/SF; 6.25 kg/m2

3.7 lbs/SF; 18.06 kg/m2

Thickness:

0.182, 4.6 mm

0.225, 5.7 mm

Max Width:

116 inches, 2.94 meters

60 inches, 1.52 meters

Max Length:

50 feet, 15.24 meters

10 feet, 3.05 meters

Width Tolerance:

+/- 0.25 inches, +/- 6 mm

+/- 0.25 inches, +/- 6 mm

Length Tolerance:

+/- 0.5 inches, +/- 13mm

+/- 0.25 inches, +/- 6mm


Special without in the chart is available as your request.


Features:



Strong, durable and flexible construction.
Certain protection and safe.
Never rust and long lasting.
Easy installation.
Low maintenance.
Unique texture effect.
Ventilation, light transmission and sound absorption.
modern design and attractive appearance.
Various sizes and colors.
Elegant, upscale and unique style
Fashion and versatility.



Applications:



Building Facade cladding.
Space divider / partition wall.
Security gates.
Handrail and balustrade.
Wall decoration.
Ceiling decorations.
Staircase wall decoration.

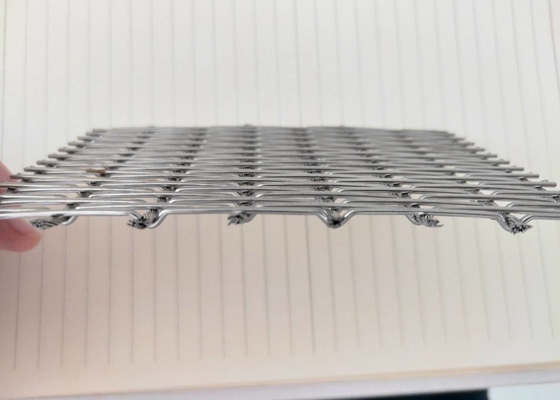

Hard mesh with one weft wire.

Hard mesh with double weft wires.

A piece of hard mesh with flat warp wire and flat weft wire.

A piece of hard mesh with square holes.

Crimped wire mesh with 2mm weft wire.

Precrimped Type Hard Mesh Decorative Metal Mesh For Building Facade Cladding 5



Seaworthy Packing: wrapped with water proof paper or plastic film inside, and packaged with carton, wooden case or on pallet at your requests.

Precrimped Type Hard Mesh Decorative Metal Mesh For Building Facade Cladding 6



Please look at following drawing, we need material, diameter of cable, diameter of rod, width x length and quantity to offer an exact quote.
