6mm Hole 6mm X 1.5mm Robust Flat Wire Woven Metal Mesh Durable

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10units
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Durable Made Of Robust Mesh Product Name Flat Wire Woven Mesh Facade
Material Stainless Steel Wire 304 Color Silver, Brass, Bronze, Gold
Warp Wire Diameter 6mm × 1.5mm. Hole 6mm
Surface Treatment Decorative Plating, Powder Coating, Etc. Application This Type Wire Mesh Facade Can Achieve The Attractive Light Reflection And At The Same Time Establish A New Identity For The Building.
High Light

6mm Hole Woven Metal Mesh

,

Robust Woven Metal Mesh

,

6mm Hole woven steel mesh

Leave a Message
Product Description

6mm Hole 6mm X 1.5mm Flat Wire Woven Mesh SS304 Durable Made Of Robust Mesh



Flat wire woven mesh Introduction



Flat wire woven mesh is also can be used for building facade cladding. But, it can provide big privacy protection and has a quite different look to other meshes. This is because instead of being woven from round wires, the woven wire mesh is made of stainless steel flat wires. The flat wires create a larger surface area which reduce the transparency but provide a very sleek homogeneous appearance. The flat wire woven mesh facade is incredibly strong and robust. And the choice of warp and weft wires as well as the type of weave create a kind of different mesh with specific optics and light effects. With the low open area, the wire mesh is still open enough to provide adequate airflow to allow for natural ventilation. Besides, it can be painted for different colors to attract more attention and the painted mesh is incredibly durable, weather-resistant and virtually no maintenance. We can offer you various sizes of flat wire woven facade mesh to meet your different needs.



Materials:



Stainless steel: 201,202, 304, 316, 321, 410, 430
Copper: brass, pure copper, phosphor bronze
Pure Aluminum & Aluminum Alloy: 1050, 1060, 1100, 5052, 5056

Features



1: The crimped flat wires interlock to prevent slipping.
2: Big variety of colors available: natural colors and plated colors.
3: Beautiful appearance and various color option
4: High durability
5: Easy to install
6: Excellent Aesthetic appeal and functionality
7: Color never fading and paint never dropping
8: Gorgeous and chic elegant appearance



Specifications:





Warp Wire Weft Wire Open Area
W1×T1(mm) P1(mm) W2×T2(mm) P2(mm) (mm) (%)
8.0×2.0 35.0 8.0×2.0 35.0 27.0×27.0 59
8.0×2.0 24.0 8.0×2.0 24.0 16.0×16.0 44
6.4×1.0 13.4 6.4×1.0 13.4 7.0×7.0 32
3.0×1.2 10.0 3.0×1.2 10.0 7.0×7.0 49
3.2×1.6 9.5 3.2×1.6 9.5 6.3×6.3 44
6.0×1.5 12.0 6.0×1.5 12.0 6.0×6.0 25
3.0×0.8 9.0 3.0×0.8 9.0 6.0×6.0 41
2.2×0.8 6.7 2.2×0.8 6.7 4.5×4.5 45
1.7×1.0 6.2 1.7×1.0 6.2 4.5×4.5 52
3.0×1.2 7.2 3.0×1.2 7.2 4.2×4.2 34
1.5×0.8 5.0 1.5×0.8 5.0 3.5×3.5 49
3.4×1.1 6.6 3.4×1.1 6.6 3.2×3.2 43
3.2×1.2 6.4 3.2×1.2 6.4 3.2×3.2 25
10.0×1.0 13.0 10.0×1.0 13.0 3.0×3.0 5
2.4×0.9 5.1 2.4×0.9 5.1 2.7×2.7 25
4.0×1.0 6.5 4.0×1.0 6.5 2.5×2.5 15
7.0×1.0 9.0 7.0×1.0 9.0 2.0×2.0 5
1.0×0.5 2.5 1.0×0.5 2.5 1.5×1.5 36









Application

Canopies, gates, exhibit booths, retail displays, elevator cabs, stairs, balustrades, furnitures, cabinetry, partition screens, cabinets, hutches, bookcases, and more. This robust flat wire is substantial and can be used in applications where strength is needed such as railing infill panels and room dividers.

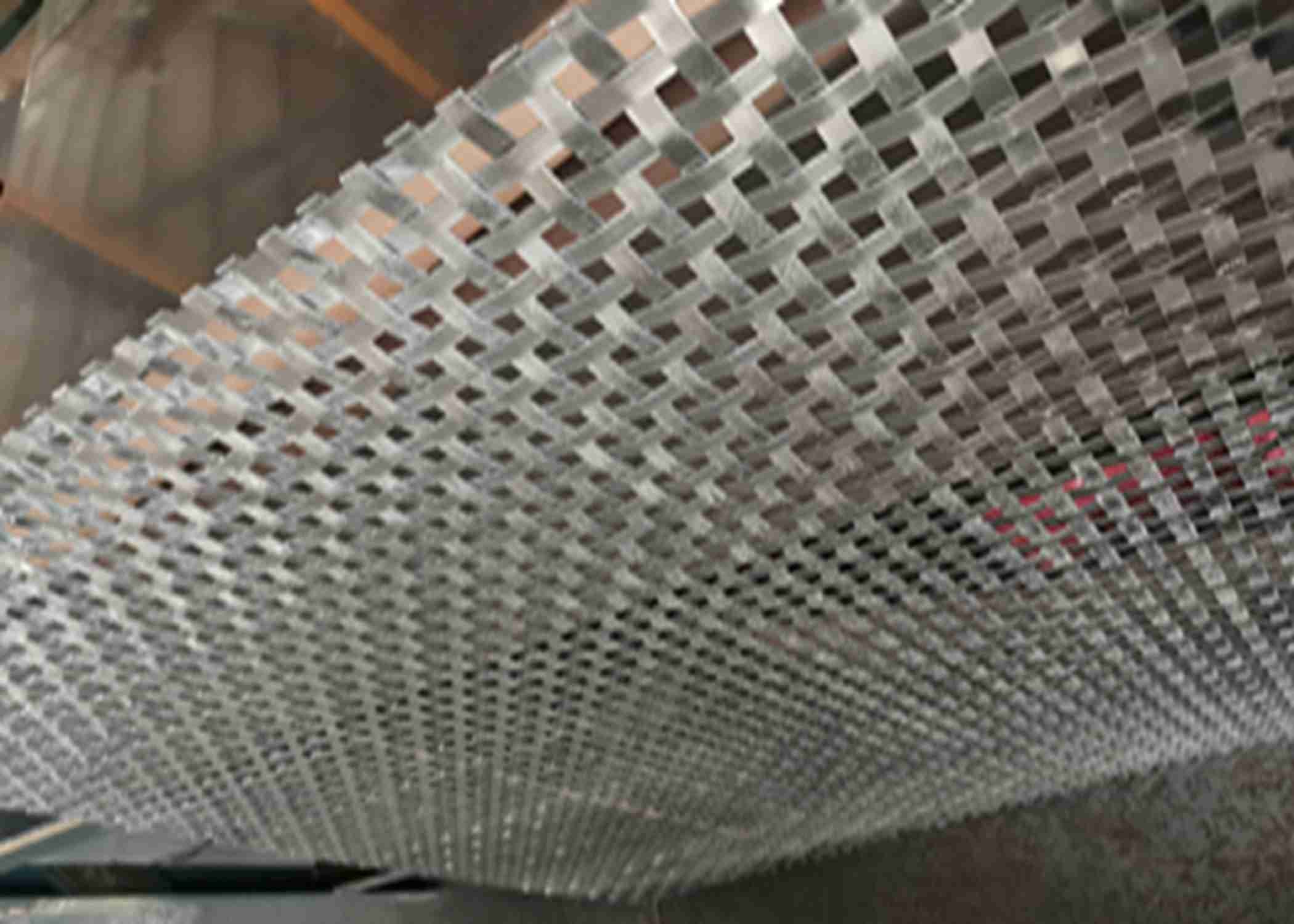

6mm Hole 6mm X 1.5mm Robust Flat Wire Woven Metal Mesh Durable 0

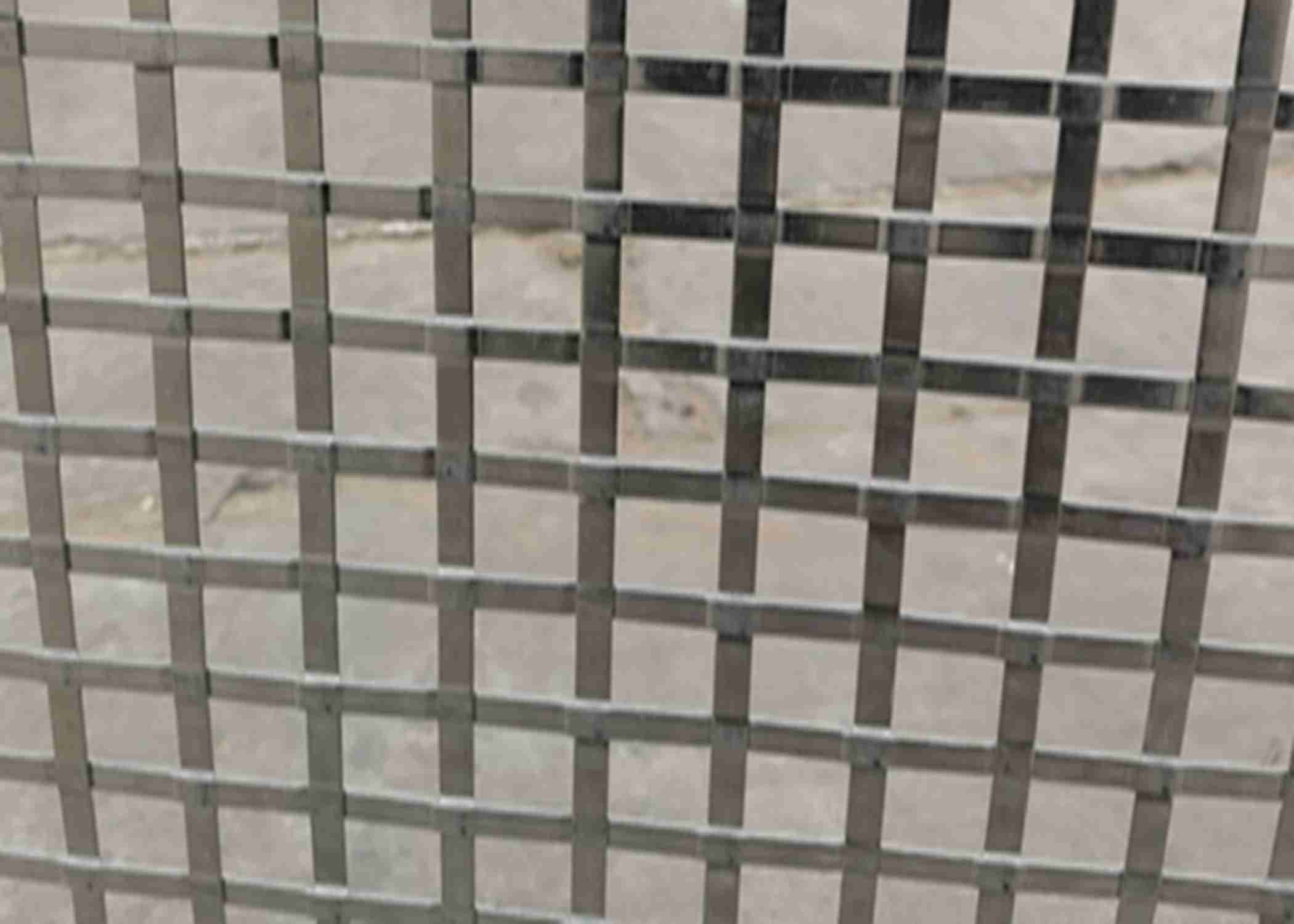

6mm Hole 6mm X 1.5mm Robust Flat Wire Woven Metal Mesh Durable 16mm Hole 6mm X 1.5mm Robust Flat Wire Woven Metal Mesh Durable 2



Packing



6mm Hole 6mm X 1.5mm Robust Flat Wire Woven Metal Mesh Durable 3
