27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance

  • 27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance
  • 27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance
  • 27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10units
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Beautiful Appearance Product Name Flat Wire Woven Mesh Facade
Material Stainless Steel Wire 304 Color Silver, Brass, Bronze, Gold
Warp Wire Diameter 10mm × 1.5mm. Hole 27mm
Surface Treatment Decorative Plating, Powder Coating, Etc. Application Cladding And Casings
Highlight

Flat Metal Mesh SS304

,

27mm Hole Flat Metal Mesh

,

27mm Hole flat wire mesh
Leave a Message
Product Description

27mm Hole 10mm X 1.5mm Flat Wire Woven Mesh SS304 Beautiful Appearance



Flat wire woven mesh Introduction



Flat Wire Decorative Wire Mesh is a kind of architectural mesh. It is mostly made of high-grade stainless steel, copper or brass. Alternative metals are sometimes chosen for specific environment. This product has a wide range of weaving patterns, please see the images below. It is a simple way to give many projects from kitchens to fine furniture a unique style. It is also an exceptional element for architecture decoration; they can easily catch your eyes. Many of our products are produced with inspiration of architects and designers for interior and exterior architectural decoration purpose.



Materials:



Stainless steel: 201,202, 304, 316, 321, 410, 430
Copper: brass, pure copper, phosphor bronze
Pure Aluminum & Aluminum Alloy: 1050, 1060, 1100, 5052, 5056

Features



1: The crimped flat wires interlock to prevent slipping.
2: Big variety of colors available: natural colors and plated colors.
3: Beautiful appearance and various color option
4: High durability
5: Easy to install
6: Excellent Aesthetic appeal and functionality
7: Color never fading and paint never dropping
8: Gorgeous and chic elegant appearance



Specifications:





Warp Wire Weft Wire Open Area
W1×T1(mm) P1(mm) W2×T2(mm) P2(mm) (mm) (%)
8.0×2.0 35.0 8.0×2.0 35.0 27.0×27.0 59
8.0×2.0 24.0 8.0×2.0 24.0 16.0×16.0 44
6.4×1.0 13.4 6.4×1.0 13.4 7.0×7.0 32
3.0×1.2 10.0 3.0×1.2 10.0 7.0×7.0 49
3.2×1.6 9.5 3.2×1.6 9.5 6.3×6.3 44
6.0×1.5 12.0 6.0×1.5 12.0 6.0×6.0 25
3.0×0.8 9.0 3.0×0.8 9.0 6.0×6.0 41
2.2×0.8 6.7 2.2×0.8 6.7 4.5×4.5 45
1.7×1.0 6.2 1.7×1.0 6.2 4.5×4.5 52
3.0×1.2 7.2 3.0×1.2 7.2 4.2×4.2 34
1.5×0.8 5.0 1.5×0.8 5.0 3.5×3.5 49
3.4×1.1 6.6 3.4×1.1 6.6 3.2×3.2 43
3.2×1.2 6.4 3.2×1.2 6.4 3.2×3.2 25
10.0×1.0 13.0 10.0×1.0 13.0 3.0×3.0 5
2.4×0.9 5.1 2.4×0.9 5.1 2.7×2.7 25
4.0×1.0 6.5 4.0×1.0 6.5 2.5×2.5 15
7.0×1.0 9.0 7.0×1.0 9.0 2.0×2.0 5
1.0×0.5 2.5 1.0×0.5 2.5 1.5×1.5 36









Application

Canopies, gates, exhibit booths, retail displays, elevator cabs, stairs, balustrades, furnitures, cabinetry, partition screens, cabinets, hutches, bookcases, and more.



Flat wire woven mesh can be used as exterior facade.

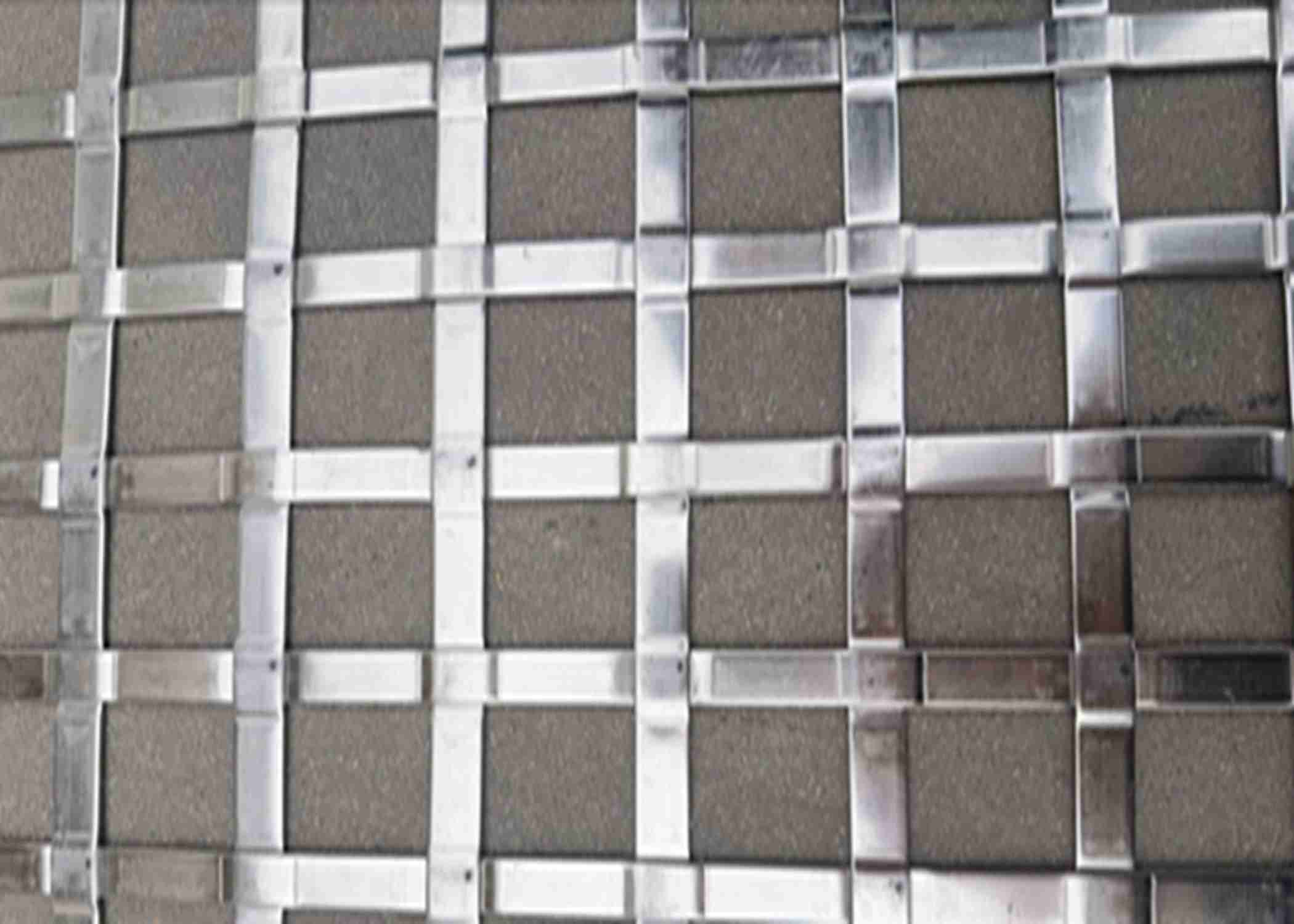

27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance 1

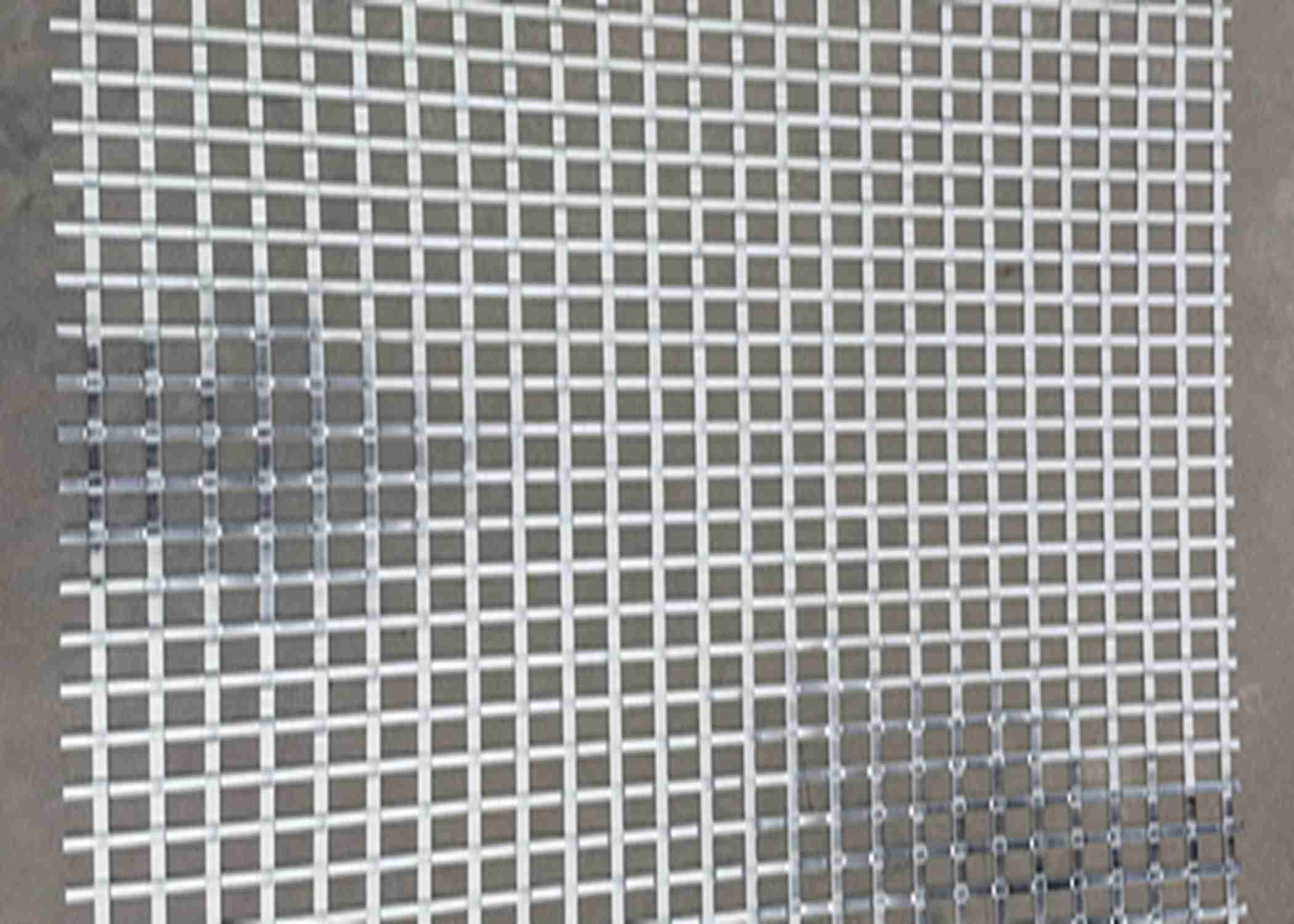

27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance 2



Packing



27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance 3
