16mm Hole 8mm X 2mm Flat Metal Mesh SS304 High Strength And Durable

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | High Strength And Durable | Product Name | Flat Wire Woven Mesh Facade |
---|---|---|---|
Material | Stainless Steel Wire 304 | Color | Silver, Brass, Bronze, Gold |
Warp Wire Diameter | 8mm × 2mm. | Hole | 16mm |
Surface Treatment | Decorative Plating, Powder Coating, Etc. | Application | Cladding And Casings |
Highlight | Flat Metal Mesh High Strength,16mm Hole Flat Metal Mesh,16mm Hole flat steel mesh |

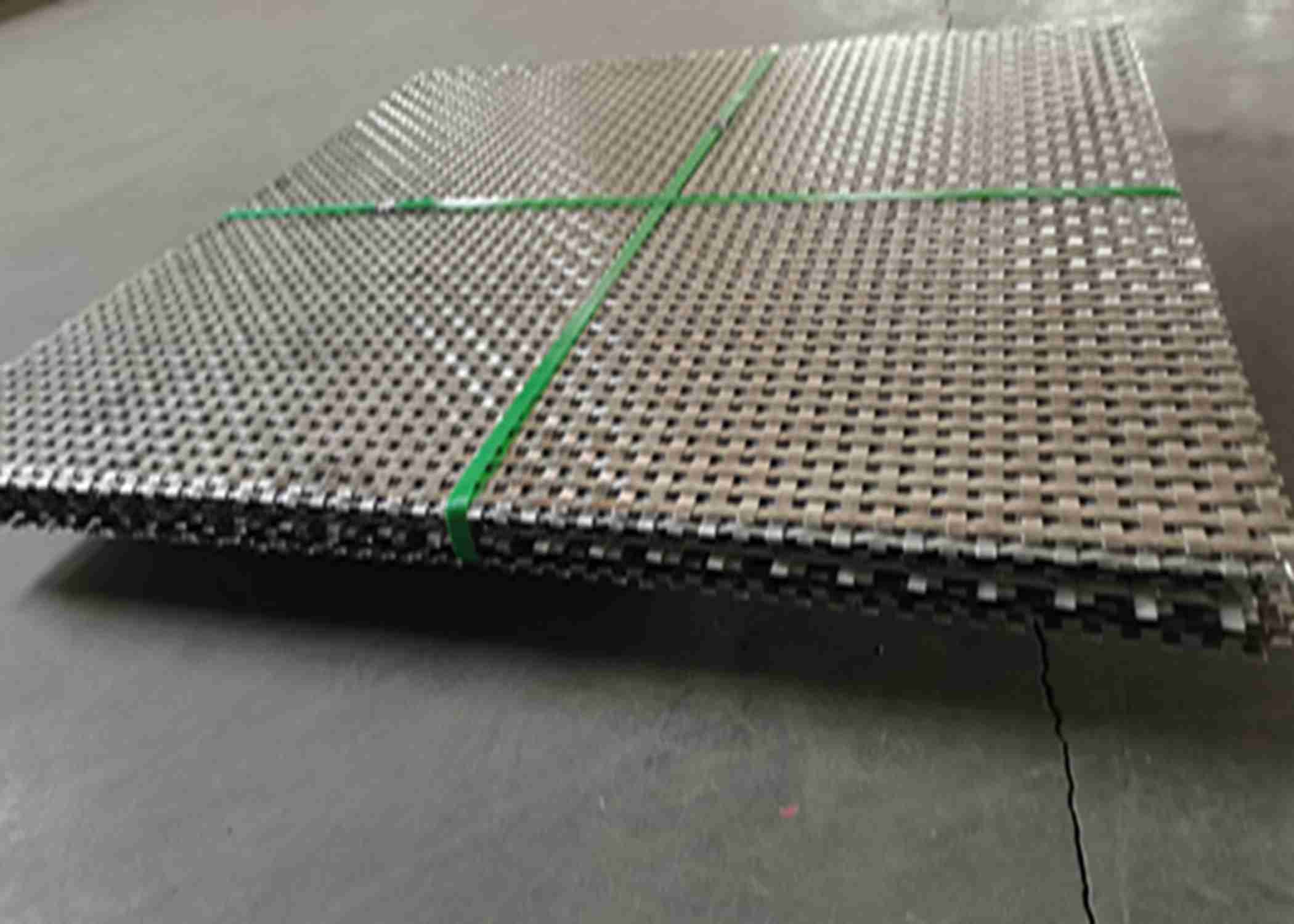

16mm Hole 8mm X 2mm Flat Wire Woven Mesh SS304 High Strength And Durable

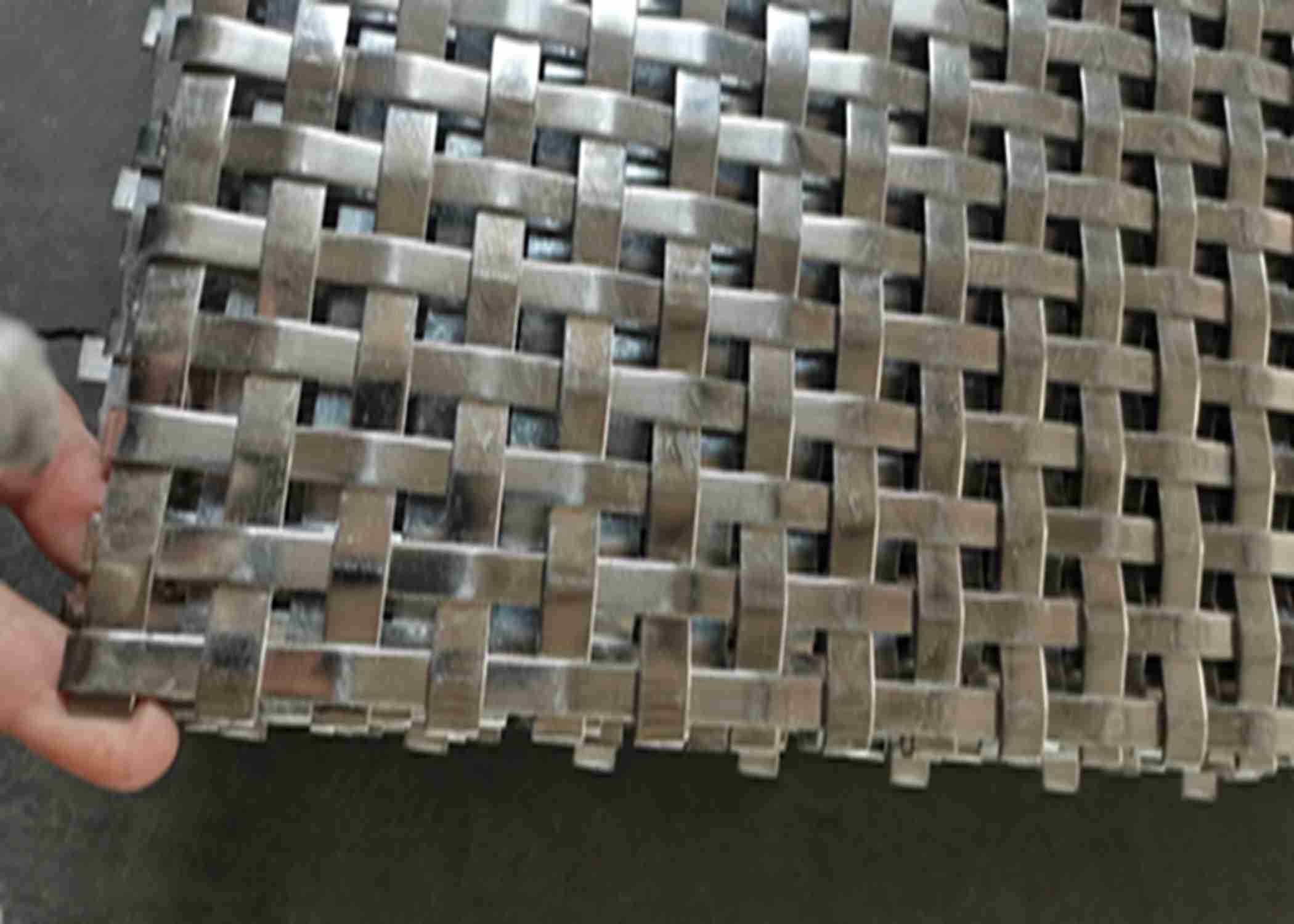

Flat wire woven mesh Introduction
Flat wire decorative metal mesh is produced by special weaving machine by flat wire, the opening is square or rectangular shape, and flat wire create a large smooth surface, that can reduce the transparency. Flat wire mesh is the modern elements of interior and external building design.
WE can offer flat wire mesh in the standard specifications, the opening sizes range from 2 mm to 27 mm, while flat wire sizes range from 1 mm x 0.5 mm to 8.0 mm x 2.0 mm, and manufactured width is up to 1 m. The wire mesh is commonly constructed with materials of stainless steel or brass.
Materials:
Stainless steel: 201,202, 304, 316, 321, 410, 430
Copper: brass, pure copper, phosphor bronze
Pure Aluminum & Aluminum Alloy: 1050, 1060, 1100, 5052, 5056
Features
High strength, and durable;
Allow natural light and air flowing;
A low level of transparency;
Offer protection for the building;
Lightweight, easy to install.
Specifications:
Warp Wire | Weft Wire | Open Area | |||
W1×T1(mm) | P1(mm) | W2×T2(mm) | P2(mm) | (mm) | (%) |
8.0×2.0 | 35.0 | 8.0×2.0 | 35.0 | 27.0×27.0 | 59 |
8.0×2.0 | 24.0 | 8.0×2.0 | 24.0 | 16.0×16.0 | 44 |
6.4×1.0 | 13.4 | 6.4×1.0 | 13.4 | 7.0×7.0 | 32 |
3.0×1.2 | 10.0 | 3.0×1.2 | 10.0 | 7.0×7.0 | 49 |
3.2×1.6 | 9.5 | 3.2×1.6 | 9.5 | 6.3×6.3 | 44 |
6.0×1.5 | 12.0 | 6.0×1.5 | 12.0 | 6.0×6.0 | 25 |
3.0×0.8 | 9.0 | 3.0×0.8 | 9.0 | 6.0×6.0 | 41 |
2.2×0.8 | 6.7 | 2.2×0.8 | 6.7 | 4.5×4.5 | 45 |
1.7×1.0 | 6.2 | 1.7×1.0 | 6.2 | 4.5×4.5 | 52 |
3.0×1.2 | 7.2 | 3.0×1.2 | 7.2 | 4.2×4.2 | 34 |
1.5×0.8 | 5.0 | 1.5×0.8 | 5.0 | 3.5×3.5 | 49 |
3.4×1.1 | 6.6 | 3.4×1.1 | 6.6 | 3.2×3.2 | 43 |
3.2×1.2 | 6.4 | 3.2×1.2 | 6.4 | 3.2×3.2 | 25 |
10.0×1.0 | 13.0 | 10.0×1.0 | 13.0 | 3.0×3.0 | 5 |
2.4×0.9 | 5.1 | 2.4×0.9 | 5.1 | 2.7×2.7 | 25 |
4.0×1.0 | 6.5 | 4.0×1.0 | 6.5 | 2.5×2.5 | 15 |
7.0×1.0 | 9.0 | 7.0×1.0 | 9.0 | 2.0×2.0 | 5 |
1.0×0.5 | 2.5 | 1.0×0.5 | 2.5 | 1.5×1.5 | 36 |
Application
Usage of decorative flat wire mesh includes:
Metal ceilings
Balustrades
Cladding and casings
Furniture
Packing
