10mm Hole 10mm X 1.5mm Flat Wire Woven Mesh 304SS Low Level Transparency

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Low Level Of Transparency. | Product Name | Flat Wire Woven Mesh Facade |
---|---|---|---|
Material | Stainless Steel Wire 304 | Color | Silver, Brass, Bronze, Gold |
Warp Wire Diameter | 10mm × 1.5mm. | Hole | 10mm |
Surface Treatment | Decorative Plating, Powder Coating, Etc. | Application | Decorative |
Highlight | 10mm Hole Flat Wire Woven Mesh,Flat Wire Mesh Low Level Transparency,Flat Wire Woven Mesh 304SS |

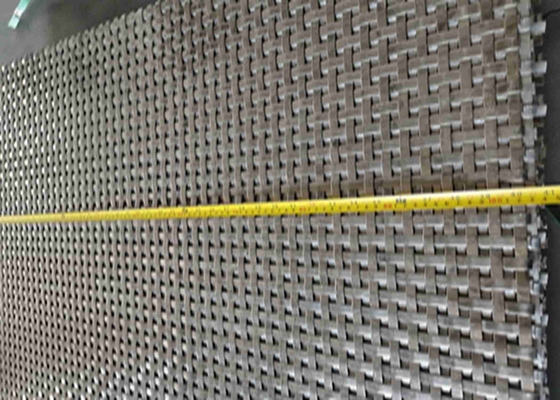

10mm Hole 10mm X 1.5mm Flat Wire Woven Mesh SS304 Low Level Transparency

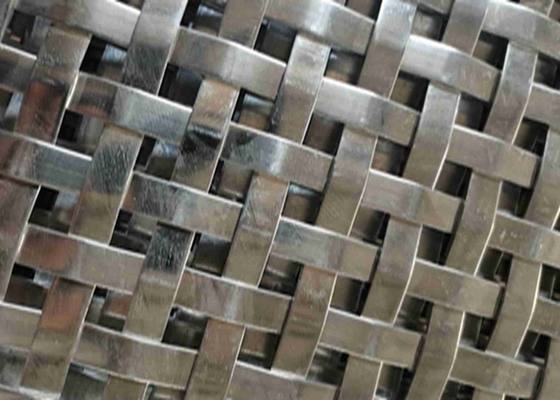

Flat wire woven mesh Introduction
Flat wire Decorative Metal Mesh is produced by special weaving machine by flat wire, the opening is square or rectangular shape, and flat wire create a large smooth surface, that can reduce the transparency. Flat wire mesh is the modern elements of interior and external building design.
The flat wire woven mesh facade is incredibly strong and robust. And the choice of warp and weft wires as well as the type of weave create a kind of different mesh with specific optics and light effects. With the low open area, the wire mesh is still open enough to provide adequate airflow to allow for natural ventilation.
Materials:
Stainless steel: 201,202, 304, 316, 321, 410, 430
Copper: brass, pure copper, phosphor bronze
Pure Aluminum & Aluminum Alloy: 1050, 1060, 1100, 5052, 5056
Features
High strength, and durable;
Allow natural light and air flowing;
A low level of transparency;
Offer protection for the building;
Lightweight, easy to install.
Specifications:
Warp Wire | Weft Wire | Open Area | |||
W1×T1(mm) | P1(mm) | W2×T2(mm) | P2(mm) | (mm) | (%) |
8.0×2.0 | 35.0 | 8.0×2.0 | 35.0 | 27.0×27.0 | 59 |
8.0×2.0 | 24.0 | 8.0×2.0 | 24.0 | 16.0×16.0 | 44 |
6.4×1.0 | 13.4 | 6.4×1.0 | 13.4 | 7.0×7.0 | 32 |
3.0×1.2 | 10.0 | 3.0×1.2 | 10.0 | 7.0×7.0 | 49 |
3.2×1.6 | 9.5 | 3.2×1.6 | 9.5 | 6.3×6.3 | 44 |
6.0×1.5 | 12.0 | 6.0×1.5 | 12.0 | 6.0×6.0 | 25 |
3.0×0.8 | 9.0 | 3.0×0.8 | 9.0 | 6.0×6.0 | 41 |
2.2×0.8 | 6.7 | 2.2×0.8 | 6.7 | 4.5×4.5 | 45 |
1.7×1.0 | 6.2 | 1.7×1.0 | 6.2 | 4.5×4.5 | 52 |
3.0×1.2 | 7.2 | 3.0×1.2 | 7.2 | 4.2×4.2 | 34 |
1.5×0.8 | 5.0 | 1.5×0.8 | 5.0 | 3.5×3.5 | 49 |
3.4×1.1 | 6.6 | 3.4×1.1 | 6.6 | 3.2×3.2 | 43 |
3.2×1.2 | 6.4 | 3.2×1.2 | 6.4 | 3.2×3.2 | 25 |
10.0×1.0 | 13.0 | 10.0×1.0 | 13.0 | 3.0×3.0 | 5 |
2.4×0.9 | 5.1 | 2.4×0.9 | 5.1 | 2.7×2.7 | 25 |
4.0×1.0 | 6.5 | 4.0×1.0 | 6.5 | 2.5×2.5 | 15 |
7.0×1.0 | 9.0 | 7.0×1.0 | 9.0 | 2.0×2.0 | 5 |
1.0×0.5 | 2.5 | 1.0×0.5 | 2.5 | 1.5×1.5 | 36 |
Application
The flat wire decorative metal mesh with square opening is specially developed to do the exterior facade for some projects, which need to reduce transparency. This type wire mesh facade can achieve the attractive light reflection and at the same time establish a new identity for the building. Are widely used as metal ceilings, balustrades, cladding and casings.
