4" Square Opening 0.250inch Wire Stainless Steel Welded Wire Mesh Firm Structure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Firm Structure | Material | SS304 Or SS316 |
|---|---|---|---|
| Color | Bright Silver | Type | Welded |
| Hole Shape | Square Hole | Opening | 2" |
| Wire Diameter | 0.35" 0.177" 0.192" 0.250" | Application | Guarding |
| Highlight | 0.250inch stainless welded wire mesh,0.250inch ss welded wire mesh,stainless welded wire mesh Firm Structure |
||
Product Description

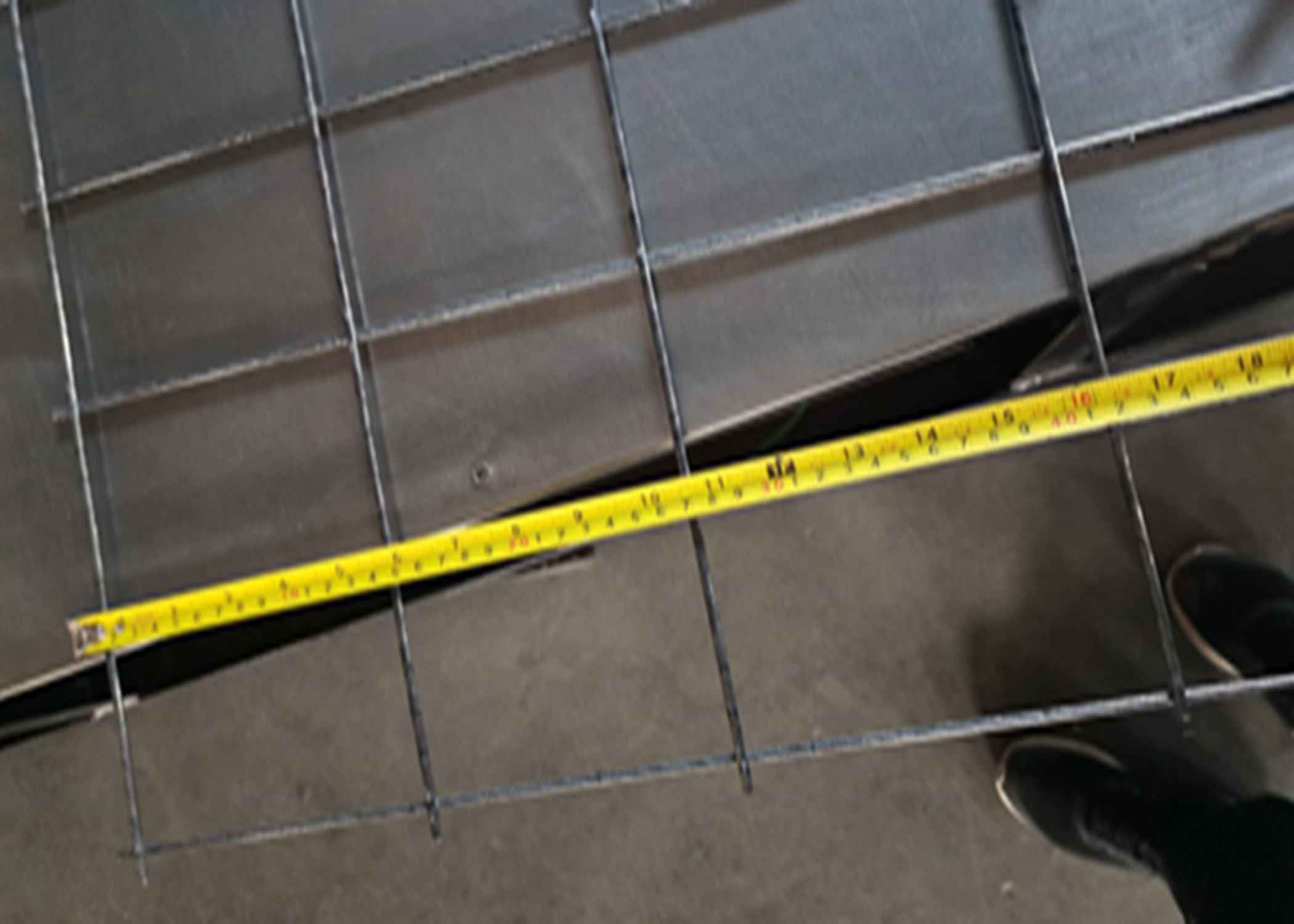

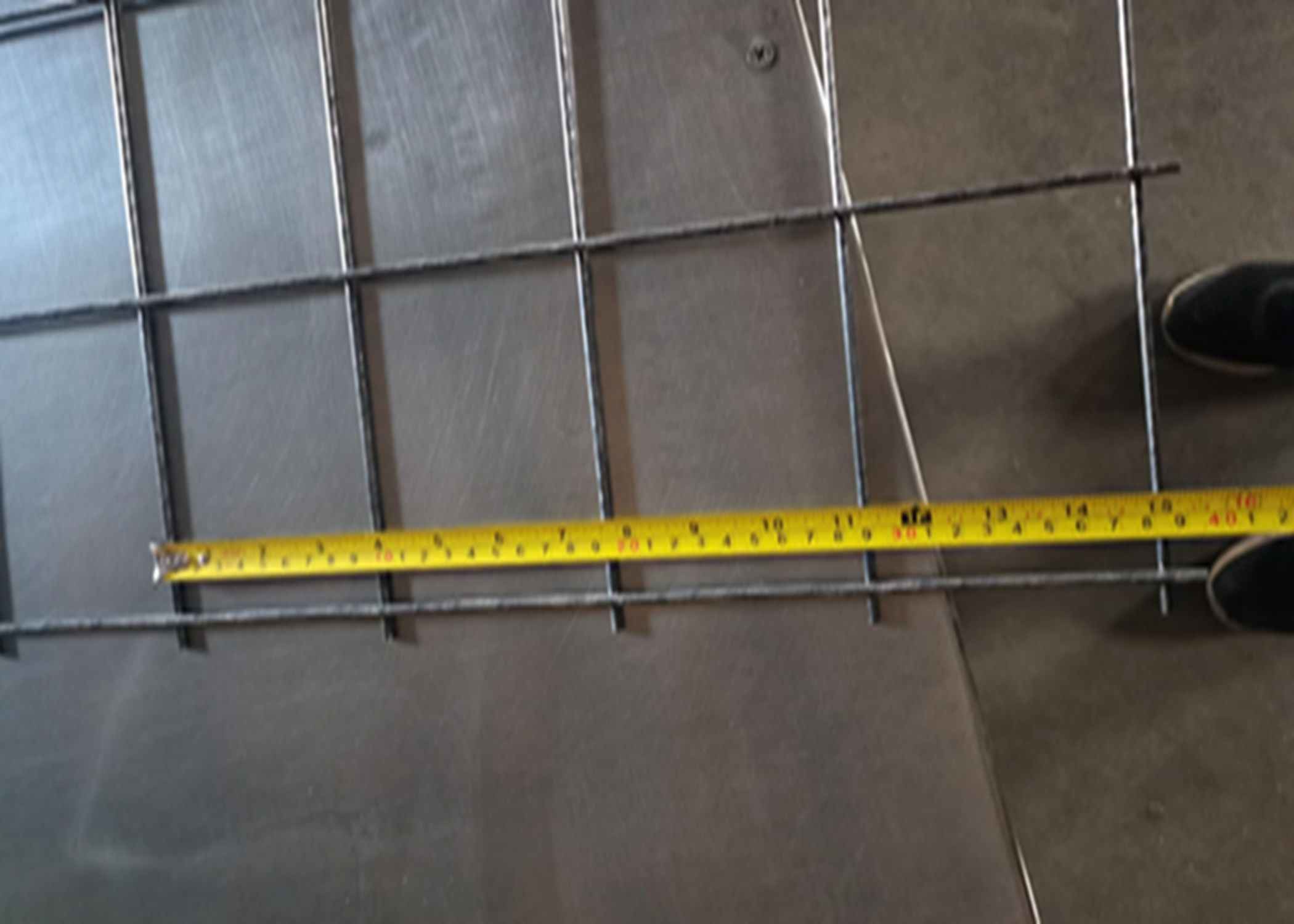

4" Square Opening 0.192" 0.250" Diameter Wire Stainless Steel Welded Wire Mesh
Stainless Steel Welded Wire Mesh
Welded wire mesh specifications are commonly used in a wide array of industrial and non-industrial applications, including animal caging, critter and varmint control, agricultural use, air vents, basket fabrication, food applications, aviary and bird screen, industrial separation fan and machine guards, security retention, basket fabrication, industrial separation and soffit screens.
Residential do-it-yourselfers gravitate towards these specific items because they offer tremendous value and versatility for projects around the home. In most normal environments, stainless steel will have a longer life cycle than a comparable galvanized mesh.
It is important to distinguish between T-304 stainless steel and T-316 stainless steel. T-304 stainless steel is more popular and more widespread in it use, while T-316 stainless steel is generally reserved for marine environments as it offers a higher resistance to corrosion.
Welded wire mesh is available in carbon steel, stainless steel, and various other alloys, when available. Carbon steel welded wire mesh can be supplied as plain (mill) finish, hot-dipped galvanized, and painted certain colors (upon request). This 4" x 4" square mesh opening with a .250 wire diameter is very popular in various applications which include handrail infill and security screens.
Common Material: SS304, SS304L, SS316, SS316L. Stainless steel in other alloy are availble.
Features:
Easy to clean;
Easy to install;
Strong structure;
Beautiful outlook;
Corrosion resistance;
Acid resistance;
Alkali resistance;
Wear resistance;
Flat surface;
Solid structure, strong integrity, even if the cut or in part under pressure not loose or slack.
Specifications:
| Opening Size | Wire Diameter | ||
| Inch | mm | SWG | mm |
| 1/4" × 1/4" | 6.4 mm × 6.4 mm | 22# - 24# | 0.6 mm - 0.7 mm |
| 3/8" × 3/8" | 10.6 mm × 10.6 mm | 19# - 22# | 0.7 mm - 1.0 mm |
| 1/2" × 1/2" | 12.7 mm × 12.7 mm | 16# - 23# | 0.6 mm - 1.6 mm |
| 5/8" × 5/8" | 16 mm × 16 mm | 18# - 21# | 0.8 mm - 1.2 mm |
| 3/4" × 3/4" | 19.1 mm × 19.1 mm | 16# - 21# | 0.8 mm - 1.6 mm |
| 1" × 1/2" | 25.4 mm × 12.7 mm | 16# - 20# | 0.9 mm - 1.6 mm |
| 1" × 1" | 25.4 mm × 25.4 mm | 14# - 21# | 0.8 mm - 1.2 mm |
| 1 1/2" × 1 1/2" | 38 mm × 38 mm | 14# - 19# | 1.0 mm - 2.0 mm |
| 1" × 2" | 25.4 mm × 50.8 mm | 14# - 16# | 1.6 mm - 2.0 mm |
| 2" × 2" | 50.8 mm × 50.8 mm | 12# - 16# | 1.6 mm - 2.6 mm |
| 2" × 3" | 50 mm × 75 mm | 13# - 16# | 1.6 mm - 2.3 mm |
| 3" × 3" | 75 mm × 75 mm | 12# - 16# | 1.6 mm - 2.6 mm |
| 2" × 4" | 50 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
| 4" × 4" | 100 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
| 8" × 8" | 200 mm × 200 mm | 13# - 14# | 2.0 mm - 2.3 mm |
Other sizes as your special request.
Applicatioins:
Infill panel & railing systems;
Industrial fan & machine guards;
Security enclosures;
Animal retention (cages);
Small critter control;
Decorative signage;
Room dividers;
Wall cladding;
Ceiling panels;
Air vents & soffit screens;
Basket fabrication;
Food applications;
Racking & storage;
Aviary & bird screen;
Industrial separation.
Packing: in waterproof paper in rolls. Custom packing available at request.
