0.192" 0.250" 316 Stainless Steel Weld Mesh 1" Opening For Guarding Acid Resistance

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Firm Structure | Material | SS304 Or SS316 |
---|---|---|---|
Color | Bright Silver | Type | Welded |
Hole Shape | Square Hole | Opening | 2" |
Wire Diameter | 0.35" 0.177" 0.192" 0.250" | Application | Guarding |
Highlight | 0.192" 316 Stainless Steel Weld Mesh,Stainless Steel Weld Mesh Acid Resistance,stainless welded wire mesh Acid Resistance |

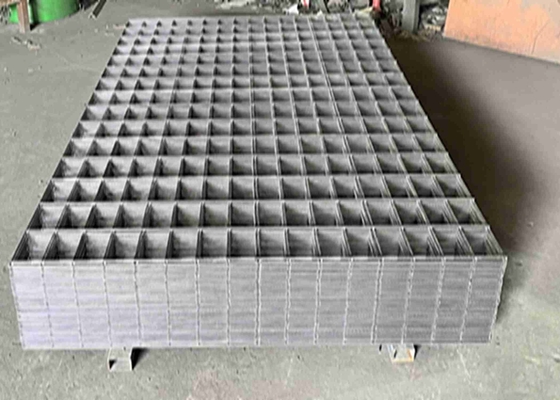

1" Opening Square Hole 0.120" 0.135" 0.192" 0.250" Wire Stainless Steel Welded Wire Mesh
Stainless Steel Welded Wire Mesh
Stainless steel welded wire mesh is an extremely popular and versatile item that many different customers use for many different applications. We specializes in supplying high quality stainless steel welded wire mesh, available in both T-304 stainless steel and T-316 stainless steel. Stainless steel welded wire mesh is corrosion resistant, uniform in appearance and available from stock or through custom manufacturing.
Of course, these specifications are commonly used in a wide array of industrial and non-industrial applications, including animal caging, critter and varmint control, agricultural use, air vents, basket fabrication, food applications, aviary and bird screen and industrial separation.
Welded wire mesh is available in carbon steel, stainless steel, and various other alloys, when available. Carbon steel welded wire mesh can be supplied as plain (mill) finish, hot-dipped galvanized, and painted certain colors (upon request). This 2" x 2" square mesh opening with a .177 wire diameter is very popular in various applications which include handrail infill and security screens.
Common Material: SS304, SS304L, SS316, SS316L. Stainless steel in other alloy are availble.
Features:
Easy to clean;
Easy to install;
Strong structure;
Beautiful outlook;
Corrosion resistance;
Acid resistance;
Alkali resistance;
Wear resistance;
Flat surface;
Solid structure, strong integrity, even if the cut or in part under pressure not loose or slack.
Specifications:
Opening Size | Wire Diameter | ||
Inch | mm | SWG | mm |
1/4" × 1/4" | 6.4 mm × 6.4 mm | 22# - 24# | 0.6 mm - 0.7 mm |
3/8" × 3/8" | 10.6 mm × 10.6 mm | 19# - 22# | 0.7 mm - 1.0 mm |
1/2" × 1/2" | 12.7 mm × 12.7 mm | 16# - 23# | 0.6 mm - 1.6 mm |
5/8" × 5/8" | 16 mm × 16 mm | 18# - 21# | 0.8 mm - 1.2 mm |
3/4" × 3/4" | 19.1 mm × 19.1 mm | 16# - 21# | 0.8 mm - 1.6 mm |
1" × 1/2" | 25.4 mm × 12.7 mm | 16# - 20# | 0.9 mm - 1.6 mm |
1" × 1" | 25.4 mm × 25.4 mm | 14# - 21# | 0.8 mm - 1.2 mm |
1 1/2" × 1 1/2" | 38 mm × 38 mm | 14# - 19# | 1.0 mm - 2.0 mm |
1" × 2" | 25.4 mm × 50.8 mm | 14# - 16# | 1.6 mm - 2.0 mm |
2" × 2" | 50.8 mm × 50.8 mm | 12# - 16# | 1.6 mm - 2.6 mm |
2" × 3" | 50 mm × 75 mm | 13# - 16# | 1.6 mm - 2.3 mm |
3" × 3" | 75 mm × 75 mm | 12# - 16# | 1.6 mm - 2.6 mm |
2" × 4" | 50 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
4" × 4" | 100 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
8" × 8" | 200 mm × 200 mm | 13# - 14# | 2.0 mm - 2.3 mm |
Other sizes as your special request.
Applicatioins:
Infill panel & railing systems;
Industrial fan & machine guards;
Security enclosures;
Animal retention (cages);
Small critter control;
Decorative signage;
Room dividers;
Wall cladding;
Ceiling panels;
Air vents & soffit screens;
Basket fabrication;
Food applications;
Racking & storage;
Aviary & bird screen;
Industrial separation.

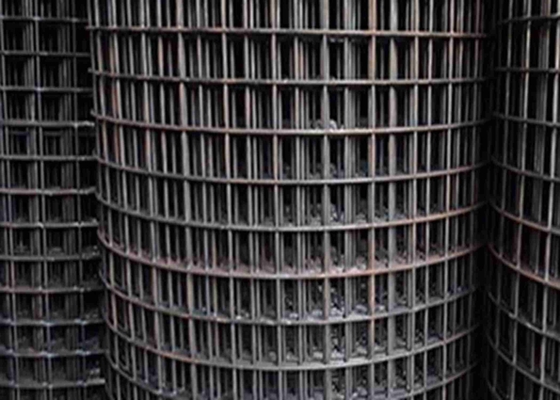

Packing: in waterproof paper in rolls. Custom packing available at request.
