1Mesh/Inch 0.047" 0.063" 0.080" Wire Stainless Steel Welded Mesh Rustproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Firm Structure | Material | SS304 Or SS316 |
---|---|---|---|
Color | Bright Silver | Type | Welded |
Hole Shape | Square Hole | Mesh Counts | 1 Mesh Per Inch |
Wire Diameter | 0.047" 0.063" 0.080" | Width | Up To 2m |
Length | 100' Or Requests | Application | Guarding |
High Light | 0.080" Wire Stainless Steel Welded Mesh,0.063" Stainless Steel Welded Mesh,ss welded wire mesh rustproof |
1Mesh Per Inch 0.047" 0.063" 0.080" Diameter Wire Stainless Steel Welded Wire Mesh
Stainless Steel Welded Wire Mesh

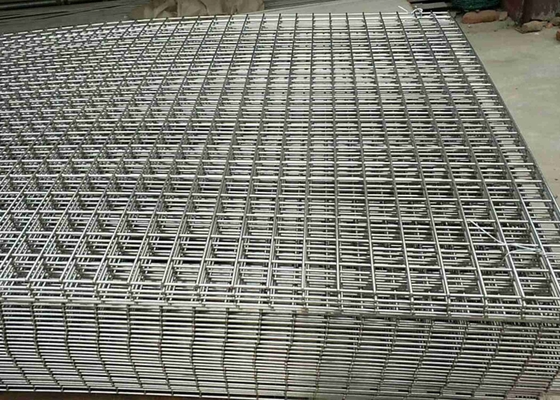

Welded wire mesh is constructed with two orthogonal wires that are joined together at their intersections using a resistance welding process to form a grid. The line wires of the grid are guided through the welder using a pattern board. The machine drops cross wires into place and fuses them together to create the two distinctive planes that form welded wire mesh. The hole shape of welded wire mesh is square or rectangle.
Stainless steel welded wire mesh is an extremely popular and versatile item that use for many different applications by many different customers all over the world. We specialize in producing high quality stainless steel welded wire mesh, both 304 stainless steel and 316 stainless steel are very common in our factory. Stainless steel welded wire mesh is corrosion resistant, uniform in appearance and available from stock or through custom manufacturing.
We generally offer stainless steel welded wire mesh in rolls or panels. As the strong and consistent features of the welds, it is an ideal option for general industrial use, it can be cut down to smaller sizes, such as rectangles, squares, discs or other required shapes.
Aside from stainless steel’s corrosion resistance and clean look, another benefit of selecting a stainless steel welded wire mesh is that because the wires are physically welded at each intersection, the mesh will remain intact and rigid. Strong and consistent welds make stainless steel welded wire mesh an ideal option for general industrial use because welded mesh can be cut down to smaller sizes without fraying, like rectangles, squares or discs.
Common Material: SS304, SS304L, SS316, SS316L. Stainless steel in other alloy are availble.
Features:
Easy to clean;
Easy to install;
Strong structure;
Beautiful outlook;
Corrosion resistance;
Acid resistance;
Alkali resistance;
Wear resistance;
Flat surface;
Solid structure, strong integrity, even if the cut or in part under pressure not loose or slack.
Applicatioins:
Infill panel & railing systems;
Industrial fan & machine guards;
Security enclosures;
Animal retention (cages);
Small critter control;
Decorative signage;
Room dividers;
Wall cladding;
Ceiling panels;
Air vents & soffit screens;
Basket fabrication;
Food applications;
Racking & storage;
Aviary & bird screen;
Industrial separation.
Specifications:
Mesh Size(Center to Center). 1" Mesh = a 1" measurement from center to center of wire.
Stainless Steel Welded Wire Mesh Specifications | ||
Mesh(Center to Center) | Wire Diameter | Opening |
1″×1″ | 0.148″ | 0.852″ |
0.135″ | 0.865″ | |
0.120″ | 0.880″ | |
0.105″ | 0.895″ | |
0.080″ | 0.920″ | |
0.063″ | 0.937″ | |
0.047″ | 0.953″ | |
0.022″ | 0.978″ |
Other "Mesh Size", "Mesh Counts", "Wire Diameter", "Opening" as your requests.

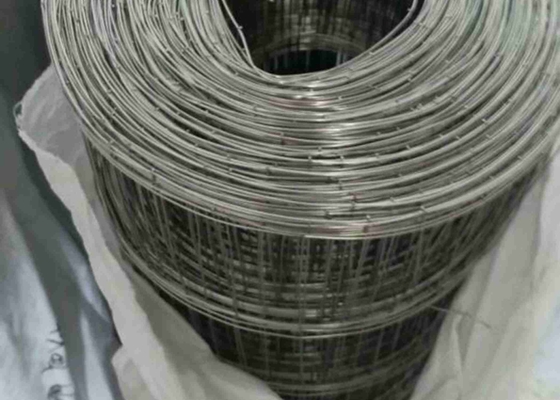

Packing: in waterproof paper in rolls. Custom packing available at request.
