50×250Mesh Stainless Steel Filter Mesh Cloth 30m AISI SUS DIN JIS Standard

  • 50×250Mesh Stainless Steel Filter Mesh Cloth 30m AISI SUS DIN JIS Standard
  • 50×250Mesh Stainless Steel Filter Mesh Cloth 30m AISI SUS DIN JIS Standard
  • 50×250Mesh Stainless Steel Filter Mesh Cloth 30m AISI SUS DIN JIS Standard
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear-resisting, Heat-resisting, Acid-resisting And Corrosion Resisting. Product Name Stainless Steel Dutch Wire Mesh
Material SS304, SS304L, SS316, SS316L Max Counts 50×250
Wire Diameter 0.14mm × 0.112mm Width 0.1 To 2.0m
Length 30m Or Customized Color Silver
Weaving Pattern Plain Dutch, Twill Dutch, Reverse Dutch Application Filtration Industry
High Light

Filter Mesh Cloth AISI Standard

,

Filter Mesh Cloth 30m

,

Stainless Steel Filter Mesh 30m
Leave a Message
Product Description

50×250Mesh Stainless Steel Plain Dutch Weave Filter Cloth AISI SUS DIN JIS Standard

Introduction:



In a Plain Dutch Weave, the diameter of the warp wire is larger than the weft, and the mesh is formed by weaving a limited number of warps with the maximum number of weft wires woven tightly together, producing a cloth with no readily visible apertures. This mesh is strong and stable, easy to clean and with a good flow rate suitable for high pressure liquid/solid separation.



50X250 mesh plain dutch weave stainless steel wire mesh. Using 0.14X0.112mm diameter wire, by plain dutch weaving, woven 50X250 mesh opening for 53μm liquid or gas filter material. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.





Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
50×250 0.14 X 0.112 0.0055×0.0044 53 1.03 2.26


Wire Materials: SS304, SS304L, SS316, SS316L



Characteristics:



1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh

Weaving Patterns:



Plain dutch, twill duth, reverse dutch, five heddle.







Packing:



stainless steel mesh made in small rolls,outside wooden cases.



Main Features:

Stainless Steel Dutch Plain Weave Filter Mesh Screen is made of high quality, high strength stainless steel wire. The mesh has so many advantages,such as advanced equipment and production technology, smooth surface, high hardness,constant mesh, no deformation, high temperature resistance, corrosion resistance, flexible network, with excellent filtration performance.


Applications:

Mining, chemical, food, petroleum, medicine, etc. Mainly used in gas, liquid filtration and other media separation.
1. Petroleum industry
2. Pharmaceutical industry
3. Food industry
4. Water treatment industry
5. Chemical industry
6. Paper making industry
7. Plastic recycling industry



Details sheet:

Specifications

Roll Width: 0.2m-1.6m

Roll Length: 10m, 20m, 30m; 100ft


Common Specifications of Plain Dutch Wire Mesh

Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)
7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135

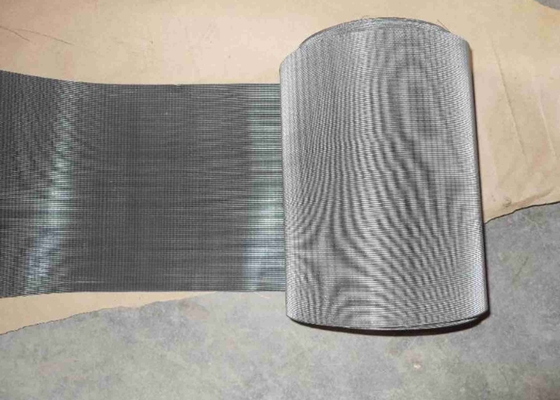

50×250Mesh Stainless Steel Filter Mesh Cloth 30m AISI SUS DIN JIS Standard 0









Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.



Our other products

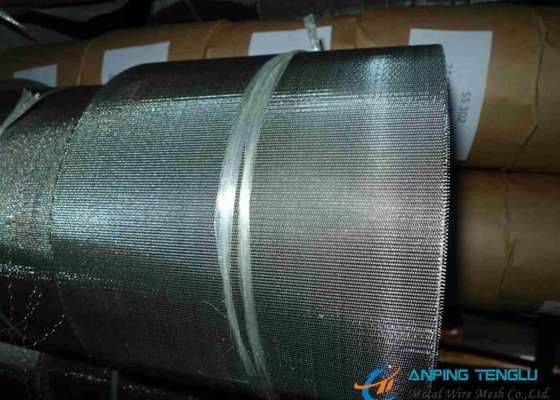

50×250Mesh Stainless Steel Filter Mesh Cloth 30m AISI SUS DIN JIS Standard 1



50×250Mesh Stainless Steel Filter Mesh Cloth 30m AISI SUS DIN JIS Standard 2



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
