ISO9001 100mm-400mm Reversed Twill Dutch Weave Wire Mesh 72×15 132×17 Mesh Counts

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear-resisting, Heat-resisting, Acid-resisting And Corrosion Resisting. Product Name Stainless Steel Dutch Wire Mesh
Material Stainless Steel 304 316 Cert ISO9001
Max Counts 72 × 15, 132 × 17, 152 × 30, 260 × 40 Width 100mm, 150mm, 300mm, 400mm, Etc
Length 30m Or Customized Color Silver
Weaving Pattern Reverse Dutch Application Widely Used For Filtering In Various Industries.
High Light

400mm twill dutch weave wire mesh

,

ISO9001 twill dutch weave wire mesh

,

Dutch Weave Wire Mesh 132×17

Leave a Message
Product Description

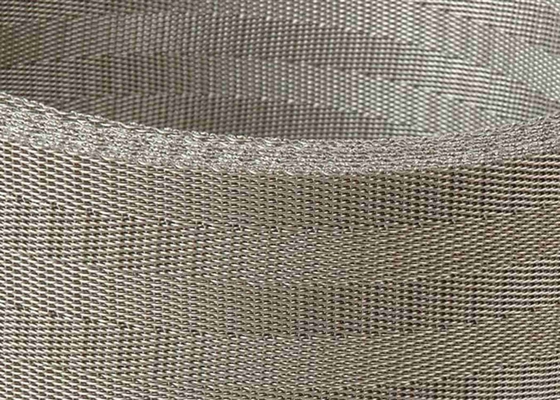

Reversed Dutch Twilled Wire Mesh with 72 × 15 132 × 17 152 × 30 260 × 40 Mesh Counts

Introduction:



Wire mesh filter cloth mainly refers to wire mesh products made with Dutch woven patterns. Our factory is an expert in woven wire mesh, especially custom and special type wire mesh filter cloth Dutch woven. Dutch Woven Wire Cloth can be further divided into mainly four types according to weaving patterns: Wire Mesh Filter Cloth Dutch Plain Woven, Wire Mesh Filter Cloth Dutch Twill Woven, Wire Mesh Filter Cloth Reverse Dutch Woven, Wire Mesh Filter Cloth Five-Heddle Woven.



Reversed Dutch Twilled Weave Wire Mesh is specially designed for filtering. It is mainly made of stainless steel wire, which is chemical resistance, alkali and acid resistance, rust and corrosion resistance. It can ensure the durable filtering performance during the usage.



Using two different sizes of wire diameter, the stainless steel wire is woven into reverse dutch woven wire mesh. Which is widely used as filter disc or other filtration products in petrochemical, aerospace and other field.

Wire Materials:



SUS302, 304, 316, 304L, 316L.



Characteristics:



Smooth surface;
High hardness;
Zero aperture;
Chemical resistance;
Acid and alkali resistance;
Rust and corrosion resistance;
Outstanding filtration performance, etc.



Weaving methods: reversed dutch twilled weave(RDTW).







Packing:



stainless steel mesh made in small rolls,outside wooden cases.



Main Features:


Corrosion resistance.

Anti-acid and alkali.
Anti-high temperature.
Good filter performance.
Long using life


Applications:

Stainless Steel Dutch Woven Wire Cloth and other materials are utilized as filter fittings for chemical industry, medicine, petroleum, telecommunication, scientific research units and so on.



Details sheet:

Width of roll: 67mm, 95mm, 97mm, 127mm, 133mm, 150mm, 157mm,300mm, 400mm, etc.


Reversed Dutch Twilled Weave Wire Mesh
Warp Weft Nominal Micron
72 15 250
132 17 200
152 30 115
260 40 75

Othere specifications according to your requests.





ISO9001 100mm-400mm Reversed Twill Dutch Weave Wire Mesh 72×15 132×17 Mesh Counts 0









Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.



Our other products



ISO9001 100mm-400mm Reversed Twill Dutch Weave Wire Mesh 72×15 132×17 Mesh Counts 1



ISO9001 100mm-400mm Reversed Twill Dutch Weave Wire Mesh 72×15 132×17 Mesh Counts 2



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
