Stainless Steel Knotted Cable Mesh With AISI304 304l 316 316L Cable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cable Knotted Mesh | Material | Stainless Steel Rope |
|---|---|---|---|
| Technique | Knotted Cable Mesh | Weave Type | X-Type |
| Width | 0.2m To 3.0m | Applications | Architecture Applications, For Staircases, Facades And Ceilings. |
| Highlight | AISI304 Knotted Cable Mesh,Stainless Steel Knotted Cable Mesh,304l Knotted Cable Mesh |
||
Product Description
Stainless Steel Cable Knotted Mesh With AISI304 304l 316 316L Cable

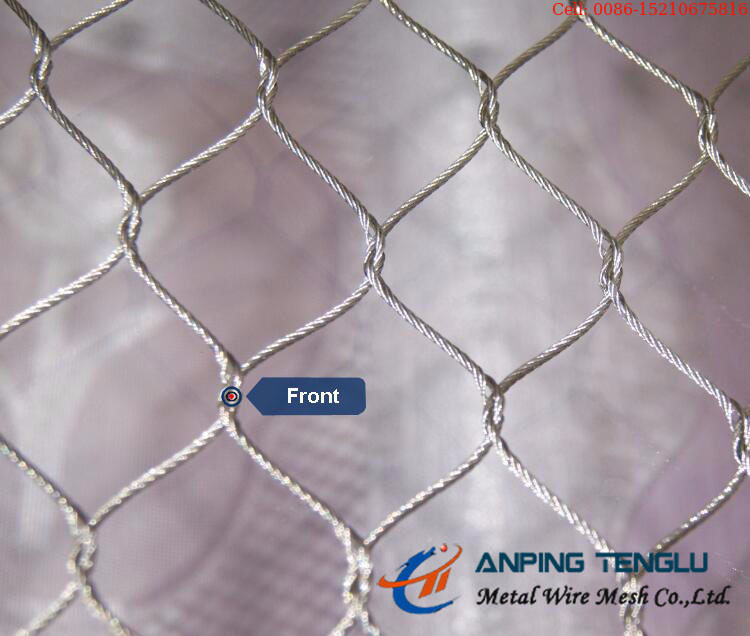

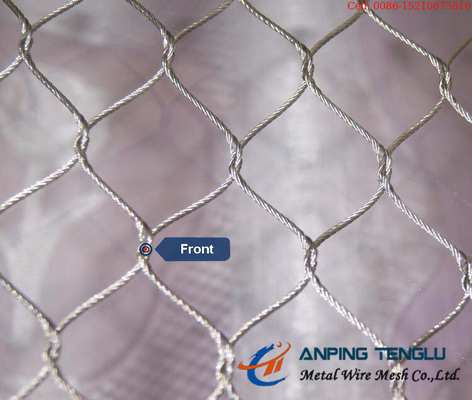

Stainless Steel Rope Mesh(Knotted type)
Cable mesh, its cable material is made of high tensile stainless steel which conforms to AISI 304, 304L, 316, 316L, has different specifications. With easy installation, low maintenance and long life span, cable mesh can be applied to various places such as bridge, stairs, parking garages, zoo, micro-gardens, sports stadium, rail and balcony. It's significant for balustrade netting, bridge balustrade, green facades, zoo mesh, aviary netting, helipad net and stainless steel ety net applications.
Stainless steel cable mesh-knotted type, called knotted mesh or hand-woven mesh, which made through cables weaving, X tend mesh square or diamond when you stretched at 90° or 60°. Knotted mesh is ecomomic using as security fence, zoo enclosures systems.
Specifications:
Structure: 7×7
| Specifications of X-Type Rope Mesh(7×7) | ||||
|
Cable Diameter (mm) |
Opening Size MW×MH (mm) |
Transparency (%) |
Weight (kg/㎡) |
Min. Tensile Strength (KN) |
| 1.0 | 25×43 | 88.4 | 0.91 | 0.63 |
| 1.0 | 30×52 | 90.6 | 0.68 | 0.63 |
| 1.0 | 35×61 | 92.0 | 0.54 | 0.63 |
| 1.0 | 40×69 | 93.3 | 0.44 | 0.63 |
| 1.0 | 50×87 | 94.8 | 0.32 | 0.63 |
| 1.0 | 60×104 | 95.8 | 0.25 | 0.63 |
| 1.0 | 70×121 | 96.4 | 0.20 | 0.63 |
| 1.0 | 80×139 | 96.9 | 0.17 | 0.63 |
| 1.5 | 25×43 | 82.6 | 1.71 | 1.55 |
| 1.5 | 30×52 | 85.9 | 1.31 | 1.55 |
| 1.5 | 40×69 | 89.9 | 0.87 | 1.55 |
| 1.5 | 50×87 | 92.2 | 0.64 | 1.55 |
| 1.5 | 60×104 | 93.7 | 0.50 | 1.55 |
| 1.5 | 70×121 | 94.6 | 0.41 | 1.55 |
| 1.5 | 80×139 | 95.3 | 0.35 | 1.55 |
| 1.5 | 100×173 | 96.3 | 0.27 | 1.55 |
| 1.5 | 120×208 | 97.0 | 0.22 | 1.55 |
| 1.5 | 140×242 | 95.5 | 0.18 | 1.55 |
| 1.5 | 160×277 | 97.8 | 0.15 | 1.55 |
| 1.5 | 180×312 | 98.0 | 0.14 | 1.55 |
| 2.0 | 40×69 | 86.1 | 1.45 | 2.75 |
| 2.0 | 50×87 | 89.3 | 1.07 | 2.75 |
| 2.0 | 60×104 | 91.4 | 0.85 | 2.75 |
| 2.0 | 70×121 | 92.6 | 0.70 | 2.75 |
| 2.0 | 80×139 | 93.6 | 0.60 | 2.75 |
| 2.0 | 100×173 | 95.0 | 0.45 | 2.75 |
| 2.0 | 120×208 | 95.9 | 0.36 | 2.75 |
| 2.0 | 140×242 | 96.6 | 0.30 | 2.75 |
| 2.0 | 160×277 | 97.1 | 0.26 | 2.75 |
| 2.0 | 180×312 | 97.5 | 0.23 | 2.75 |
| 2.0 | 200×346 | 97.8 | 0.20 | 2.75 |
| Note: α=60° | ||||
Structure: 7×19
| Specifications of X-Type Rope Mesh(7×19) | ||||
|
Cable Diameter (mm) |
Opening Size MW×MH (mm) |
Transparency (%) |
Weight (kg/㎡) |
Min. Tensile Strength (KN) |
| 3.0 | 50×87 | 85.2 | 2.48 | 5.12 |
| 3.0 | 60×104 | 87.1 | 1.94 | 5.12 |
| 3.0 | 70×121 | 89.0 | 1.59 | 5.12 |
| 3.0 | 80×139 | 90.5 | 1.34 | 5.12 |
| 3.0 | 100×173 | 92.6 | 1.01 | 5.12 |
| 3.0 | 120×208 | 93.9 | 0.81 | 5.12 |
| 3.0 | 140×242 | 94.9 | 0.68 | 5.12 |
| 3.0 | 160×277 | 95.6 | 0.58 | 5.12 |
| 3.0 | 180×312 | 95.9 | 0.51 | 5.12 |
| 3.0 | 200×346 | 96.3 | 0.45 | 5.12 |
| 4.0 | 200×346 | 95.0 | 0.70 | 5.12 |
| Note: α=60° | ||||
Dimond Opening Sizes: 25mm to 200mm(MW), 43mm to 436mm(MH); 60
Cable Diameters: 1.0 mm to 4.0 mm.
Roll Width: 0.2m, 0.6m, 1.0m, 1.2m, 2.0m, 3.0m.
Roll Length: 2m, 10m, 15m, 30m.
Other specifications according to your requirements.
Materials:
Stainless Steel 201, 202; 304, 304L, 316, 316L, 321; 410, 420, 430. The commonly constructed materials are 304 and 316 stainless steel.
Features:
Versatility. Knotted cable mesh has various applications such as balustrade infill netting, bridge balustrade, green facades, zoo mesh, aviary netting, helipad net and stainless steel ety net.
High security. With flat surface, knotted cable mesh can bring high security for animals.·
Aesthetic appearance. Knotted cable mesh is divided into two types: standard and non-standard angle. Whatever they are, they have a visual beautiful appearance.
Applications:
Architectural: stainless steel balustrade, ss railing, division screen, facade screen, window guard, security infill panels, decoration, etc.
Fencing: garden fencing, bridege e net, pedestrian zone, panorama terraces, observation platform, space guard, rock protection, etc.
Animal enclosure: zoo mesh, aviary netting, monkey enclosing, etc.
Pet cages: dog cage, cat cage, rabbit cage, etc.
Packing: Warpped with plastic film, then in wooden case.
