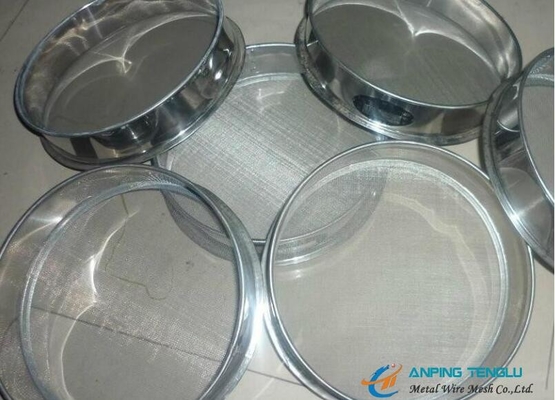

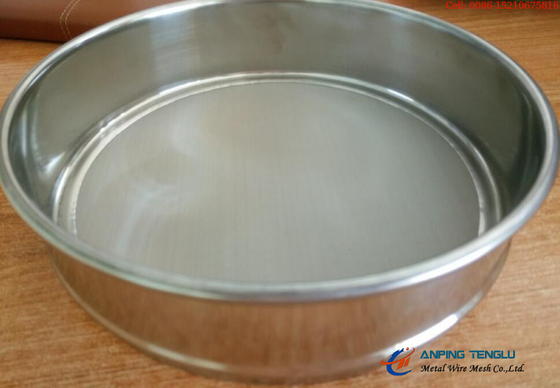

Woven Wire Mesh Used For Test Sieve 20 40 80 100 120 150 200 Mesh

  • Woven Wire Mesh Used For Test Sieve 20 40 80 100 120 150 200 Mesh
  • Woven Wire Mesh Used For Test Sieve 20 40 80 100 120 150 200 Mesh
  • Woven Wire Mesh Used For Test Sieve 20 40 80 100 120 150 200 Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5000Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Precise Wire Mesh Filtration Product Name Woven Wire Mesh Used For Test Sieve
Material Stainless Steel 304, 316, 304L, 316L, Galvanised Mild Steel, Etc Weaving Plain Weave, Plain Crimped, Lock Crimped, Flat Top Crimped
Shape Round, Rectangular, Square, Oval, Also Can Be Customized Layers Single Or Multilayers.
Mesh Counts 20 40 80 100 120 150 200Mesh Length Commonly Is 30m, Other Specs Can Be Customized.
Application Air Jet Sieves, Cement Wet Washing, Coffee Bean Grading, Grain Sieves, Grid Sieves, Garden Sieve, Dry Sieve, Wet Washing Sieve, Etc.
Highlight

Stainless Steel 304 Woven Wire Mesh

,

Test Sieve Woven Wire Mesh

,

Plain Weave Woven Wire Mesh
Leave a Message
Product Description

Woven Wire Mesh Used for Test Sieve With 20 40 80 100 120 150 200Mesh



Stainless Steel Woven Wire Mesh for Test Sieve


Woven wire mesh is a mainly raw material for test sieve, the test sieve is a professional measuring instrument for laboratory sampling, particle size analysis, separates or classify sands, crushed rock, clays, granite, feldspars, coal, soil, a wide range of manufactured powders, grain and seeds etc. High quality metal wire protects against corrosion and simplifies cleaning, and the metal frame prevent contamination of the sieving material. The meshes come in different materials: stainless steel, brass and copper.





Specifications:







Outer Sieves Diameter:

38mm, 100mm, 150mm, 200mm, 250mm, 300mm, 315mm, 400mm, 450mm, 3", 8", 10", 12", 18".

Depth:

1", 1-1/2", 1-5/8", 1.625", 2", 3", 3-1/2", 3.25", 4", 4.25", 6", 8".








Mesh/Inch

Wire Diameter

Aperture

Open Area

Weight

mm

mm

%

Kgs/㎡

20

0.27

1.000

62.00

0.72

20

0.25

1.020

64.50

0.62

80

0.12

0.197

38.69

0.57

80

0.10

0.217

46.92

0.40

100

0.10

0.154

36.75

0.50

100

0.08

0.174

46.92

0.32

120

0.06

0.151

51.34

0.21

150

0.06

0.109

41.68

0.27

200

0.05

0.077

36.75

0.25

Other specifications according to your requirements.



Stainless steel wire:



SU302,304,316,304L,316L,310S,321 ,hastelloy wire, inconel wire, monel wire, incoloy wire, nickel wire etc.



Woven Wire Mesh Used For Test Sieve 20 40 80 100 120 150 200 Mesh 0







Stainless Steel extruder screen Product Features:



Strong corrosion resistance, easy to clean;
High screening precision, high efficiency;
Wear resistance, easy to use and suitable for graded screening;
Low cost, easy to process;
Long service life.



Applications:



Industries: Chemical industries; Pharmaceutical industries; Dyes industries; Soil testing; Cosmetic industries; Sugar,tea & coffee industries; Foundries; Cement industries.



Test Sieve Used as: Air Jet Sieves, Cement Wet Washing, Coffee Bean Grading, Grain Sieves, Grid Sieves, Garden sieve, Dry sieve, Wet washing sieve, etc.





Packing:



Woven Wire Mesh Used For Test Sieve 20 40 80 100 120 150 200 Mesh 1
