Expanded Metal Mesh Mild Steel Raised Type Firm Structure Used As Walkway

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Features Features A Surface Of Diamond-shaped Openings That Are Slightly Raised Relative To A Flat Surface Product Name Expanded Metal Mesh
Material Mild Steel, Low Carbon Steel, Iron Surface Galvanized Or Pvc Coated
Pattern Raised Type Hole Pattern Diamond, Hexagonal, Micro Hole, Oval Hole And Various Decorative Holes.
Thickness 0.5 To 8mm Width 0.6m To 2.2m
Length 30m, 50m, Etc Application Walkways
High Light

Mild Steel Expanded Metal Mesh


Expanded Metal Mesh Raised Type


Walkway Expanded Metal Mesh

Leave a Message
Product Description

Expanded Metal Mesh Mild Steel Raised Type Firm Structure Used As Walkway

Expanded Metal Mesh Mild Steel Raised Type Used As Walkway



Expanded metal mesh has a diverse range of properties, which makes it a versatile material that can be used throughout a variety of industries. All our steel mesh is made from a variety of grades. The most common grades are hot rolled, cold reduced, electro zinc and galvanised steel. All materials can be coated using various applications, i.e. galvanising, painting, powder coating etc. All steel grades supplied conform to the relative quality standards. Mild steel expanded metal mesh comes in two forms: raised mesh and flattened mesh, both of which offer different properties.


Mild steel raised mesh strands are measured from knuckle to knuckle rather than inside the diamond. The strands and bonds are set at a uniform angle to the plane of the sheet, adding strength and rigidity, allowing air circulation and distributing the load of the metal to the supporting frames.


Raised expanded metal mesh is used in the following industries:


Mild steel raised mesh typical applications include:

Speaker grilles
Spark guards
Trailer ramps
Pallets and stillages
Pedestrian Barriers




mesh thickness distance shortm(mm) distance long(mm) strip(mm)
0.5 2.5 45 0.5
0.5 10 25 0.5
0.6 10 25 1
0.8 10 25 1
1 15 25 1.1
1 10 40 1.5
1.2 10 25 1.1
1.2 15 40 1.5
1.5 15 40 1.5
1.5 23 60 2.6
2 18 50 2.1
2 22 60 2.6
3 40 80 3.8
4 50 100 4
4 60 120 4
4 80 180 4
4 100 200 4
4.5 50 100 5
5 50 100 5
5 75 150 5
6 50 100 6
8 50 100 8


Other specifications according to your requirements.


Galvanized Expanded Metal Mesh, SWD4mm*LWD: 8mm diamond shape, Thickness: 0.5mm



Features of steel expanded metal sheet:


Anti-skid qualities.

Grater strength.


Material will not unravel when cut.


Whether resistance.

Sunshine resistance.

Corrosion Resistance.

Simple to install, difficult to breach.

Low maintenance.

Cost effective.

Ideal for secondary operations.


Applications of steel expanded metal sheet:


Access walkways-Bridges, Leisure Centares, Industrial areas.

Gantry platforms in Stadiums, Container Ports, Security Areas.

Marine Applications. i.e. marina pontoons.

High security compound fencing.

Car Transporter ramps.

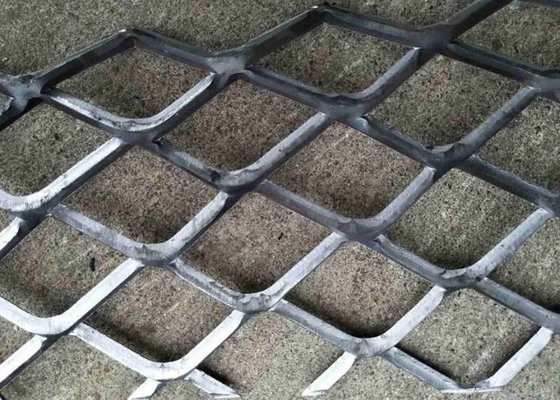

Expanded Metal Mesh Mild Steel Raised Type Firm Structure Used As Walkway 1






Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type

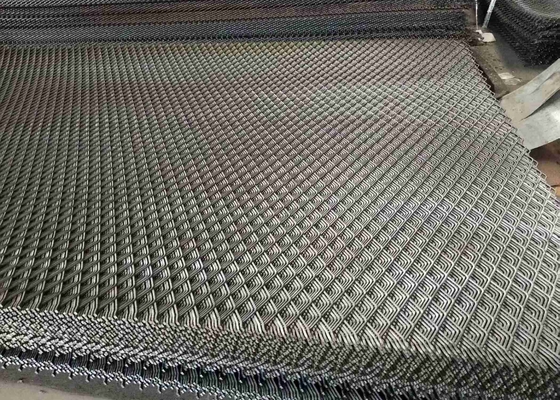

Expanded Metal Mesh Mild Steel Raised Type Firm Structure Used As Walkway 2
