Mild Steel Expanded Metal Flattened Mesh Used In Construction

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Features Features A Surface Of Diamond-shaped Openings That Are Slightly Raised Relative To A Flat Surface Product Name Expanded Metal Mesh
Material Mild Steel, Low Carbon Steel, Iron Surface Galvanized Or Pvc Coated
Pattern Flattened Pattern Hole Pattern Diamond, Hexagonal, Micro Hole, Oval Hole And Various Decorative Holes.
Thickness 0.5 To 8mm Width 0.6m To 2.2m
Length 30m, 50m, Etc Application Agriculture Construction Manufacturing Security
High Light

8mm flattened expanded metal


8mm flattened expanded metal mesh


mild steel flattened expanded mesh

Leave a Message
Product Description

Mild Steel Expanded Metal Flattened Mesh Used In Construction




Flattened expanded mild steel mesh which has been pressure rolled. By flattening the sheets, the bonds and strands are turned down to produce a smooth and flat surface and resulting in strands which are on the same plane as the sheet.


Flattened expanded metal mesh is use in the following industries:


Mild steel flattened mesh typical applications include:

Animal flooring
Bird guarding
Machine guards
Electromagnetic screens




mesh thickness distance shortm(mm) distance long(mm) strip(mm)
0.5 2.5 45 0.5
0.5 10 25 0.5
0.6 10 25 1
0.8 10 25 1
1 15 25 1.1
1 10 40 1.5
1.2 10 25 1.1
1.2 15 40 1.5
1.5 15 40 1.5
1.5 23 60 2.6
2 18 50 2.1
2 22 60 2.6
3 40 80 3.8
4 50 100 4
4 60 120 4
4 80 180 4
4 100 200 4
4.5 50 100 5
5 50 100 5
5 75 150 5
6 50 100 6
8 50 100 8


Other specifications according to your requirements.


Galvanized Expanded Metal Mesh, SWD4mm*LWD: 8mm diamond shape, Thickness: 0.5mm



Features of steel expanded metal sheet:


Steel expanded metal sheet is much cheaper than the aluminum expanded metal sheet or stainless steel expanded metal sheet.
Good corrosion and rust resistance. Galvanized and PVC coated surface treatment supplies outstanding corrosion and rust resistance performance.
Various colors for choice. PVC coated steel expanded metal sheet can be coated for various colors for your choice.
Durable. The chemical stability and corrosion resistance performance make steel expanded metal sheet a long service life.
Wide range applications. The steel expanded metal sheet is the most widely used type in protective, decorative and other applications.


Applications of steel expanded metal sheet:


Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded carbon steel can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.

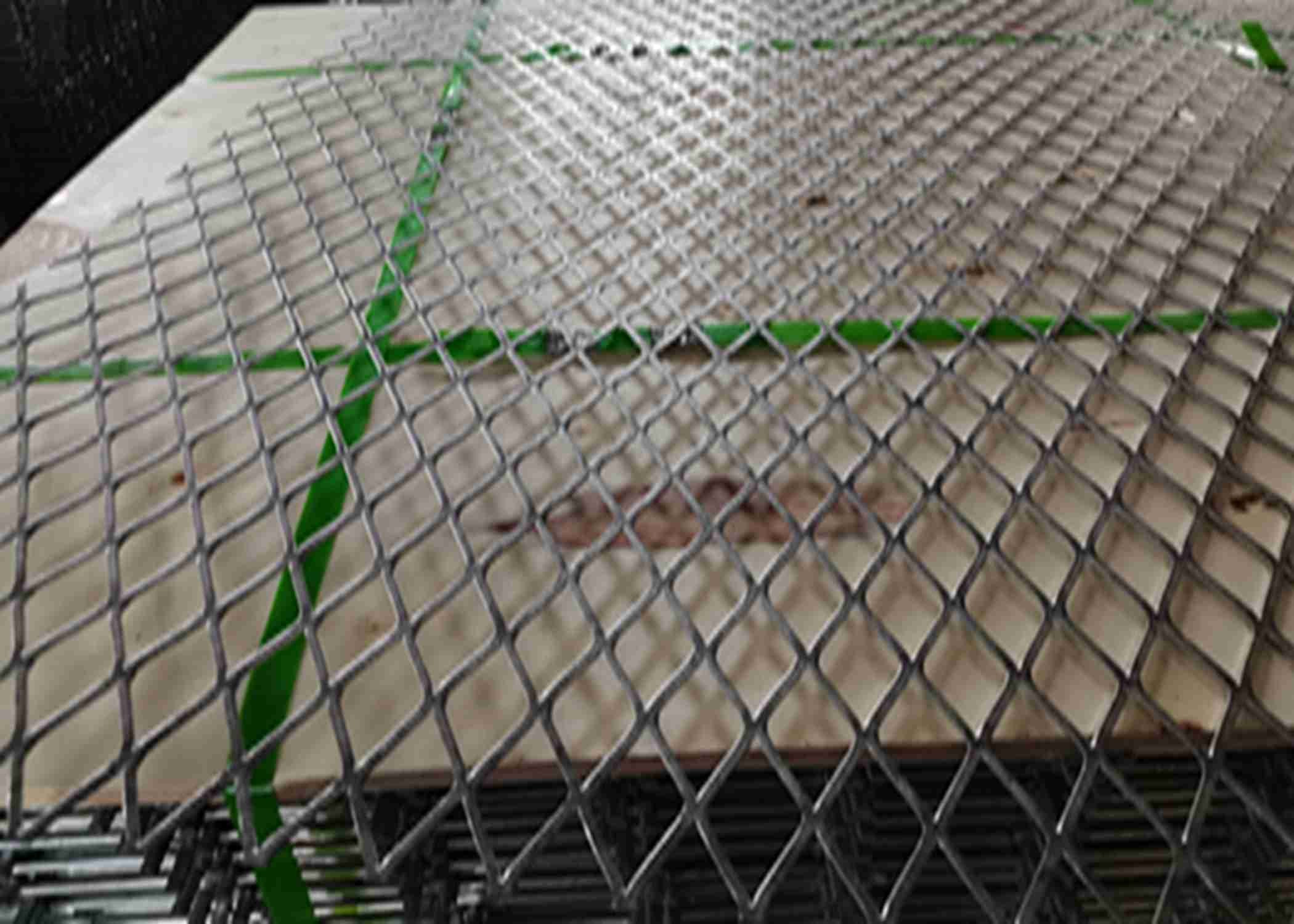

Mild Steel Expanded Metal Flattened Mesh Used In Construction 1






Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type

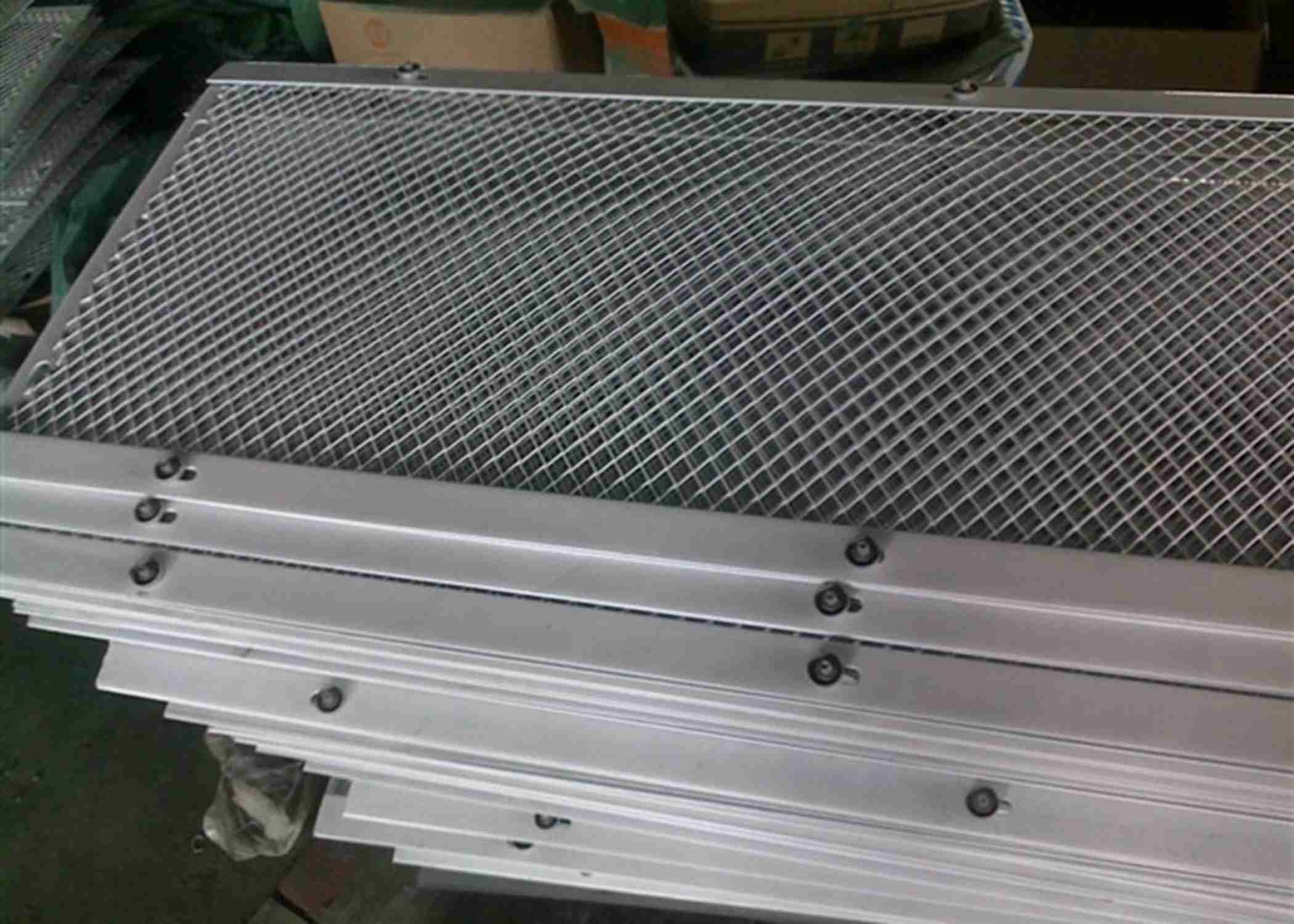

Mild Steel Expanded Metal Flattened Mesh Used In Construction 2
