Aluminium Raised Expanded Metal Mesh Used In Manufacturing

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Features Remarkable Strength Easy To Use Weather Resistant Product Name Expanded Metal Mesh
Material Pure Aluminum Plate, Aluminum Alloy Plate(1050, 5052, 5056) Surface Bright Silver
Pattern Raised Type Hole Diamond
Thickness 0.5 To 8mm Width 600mm To 2000mm
Length 600mm To 4000mm Application Security, Sifting, Machinery Guards, Flooring, Walkways, Window Protection, Etc.
High Light

Aluminium Raised Expanded Metal Mesh


8mm Raised Expanded Metal Mesh


Raised Expanded Metal Aluminium

Leave a Message
Product Description

Aluminium Raised Expanded Metal Used In Manufacturing & Construction Industries

Aluminium Flattened Expanded Metal Used In Manufacturing & Construction Industries


Aluminum expanded metal Mesh Introduction:


Aluminum raised expanded metal sheet, also known as grating, is an excellent candidate for most processing techniques for both interior and exterior applications. This material is light weight, has a raised surface, and is susceptible to being hammered or pressed out of shape without cracking. Common applications include walkways, screens, safety guards, and ramps. With above average corrosion resistance, this is an excellent choice wherever strength is required.


Aluminium raised mesh, worked from one sheet of metal. Strands are measured from knuckle to knuckle rather than inside the diamond. The strands and bonds are set at a uniform angle to the plane of the sheet, adding strength and rigidity, allowing air circulation and distributing the load of the metal to the supporting frames.





Specification of Expanded Metal Mesh
Sheet Thickness Opening in Width Opening in Length Stem Roll Width Roll Length Weight
mm mm mm mm kg/m2
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26


Other specifications as your requests.




Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)


Features of aluminum expanded metal sheet:


Lightweight. It is the most important feature of aluminum expanded metal sheet. The lightweight expanded metal sheet is widely used in the decorative applications.
Rigid and solid. Though the aluminum expanded metal is lightweight, but it is still solid no matter in the structure or in the service life.
Corrosion and rust resistance. The aluminum expanded metal sheet will form a layer of oxidation film, which can prevent expanded metal sheet from corrosion and rust.
Economical. The aluminum expanded metal sheet has better corrosion and rust resistance but the cost is lower than the stainless steel expanded metal sheet, so it is the economical choice.
Various colors for choice. The aluminum expanded metal sheet can be coated in various colors, including red, white, golden and any other colors you want. This make it be used in more applications.


Applications of expanded metal sheet:


Aluminium raised mesh is used in the following industries:

Manufacturing & construction
Automotive & transport
Design & DIY

Aluminium raised mesh is used in the following applications:

Radiator grilles
Car body repairs
Arts & crafts

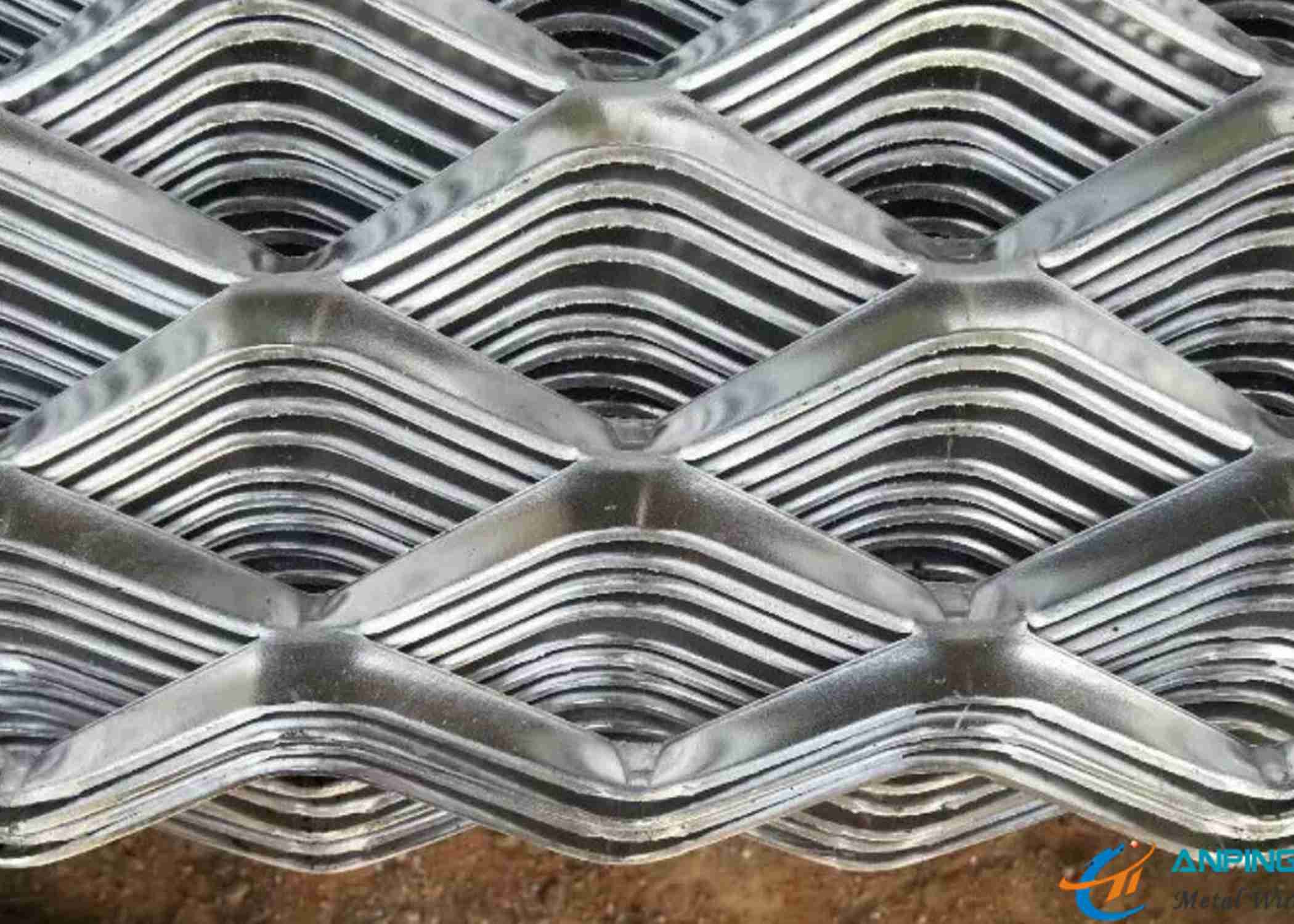

Aluminium Raised Expanded Metal Mesh Used In Manufacturing 0

Aluminium Raised Expanded Metal Mesh Used In Manufacturing 1

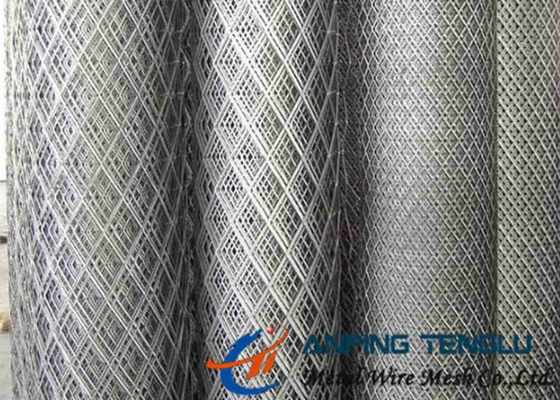

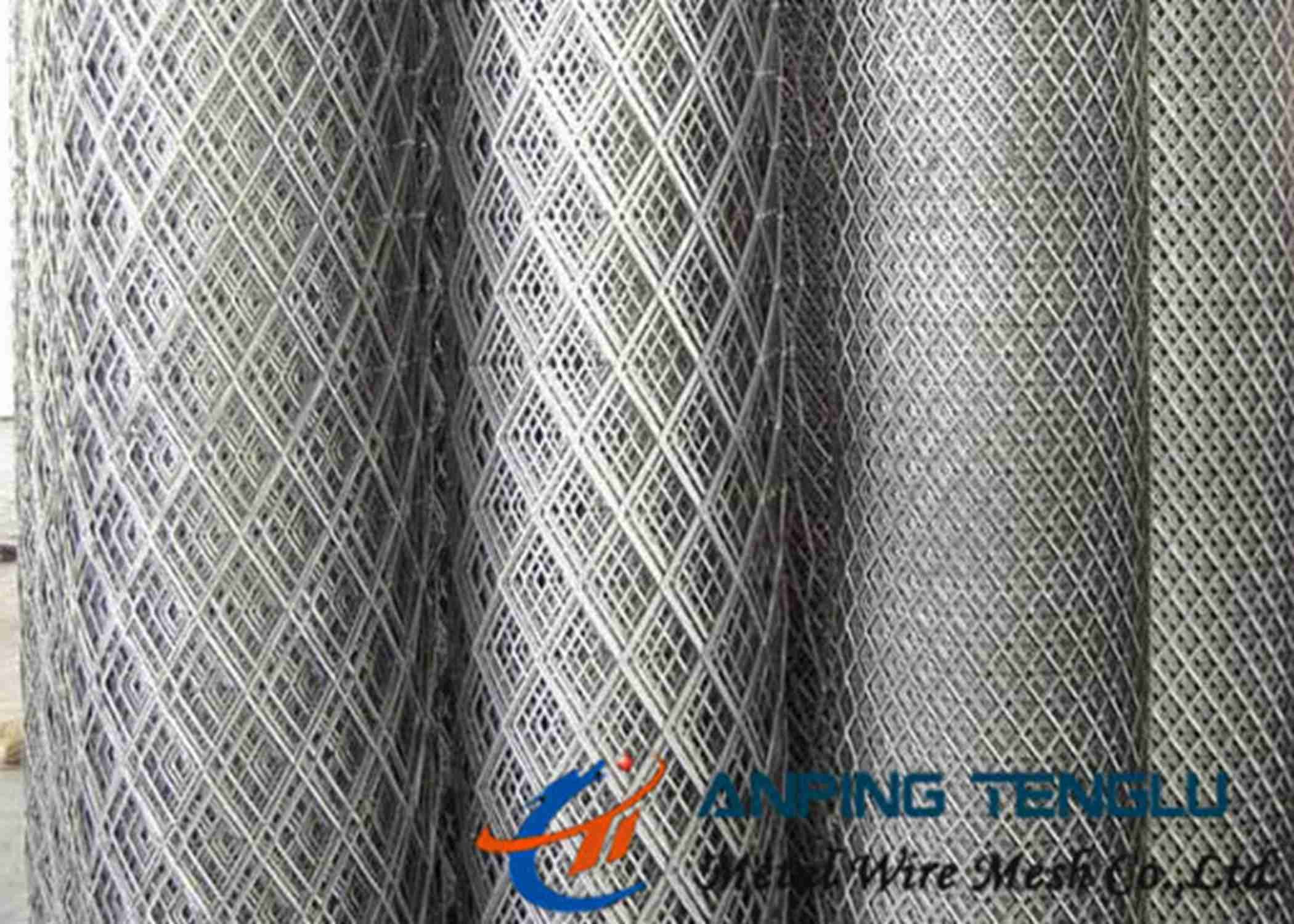

Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type


Aluminium Raised Expanded Metal Mesh Used In Manufacturing 2
