Aluminium Flattened Expanded Metal Used In Construction Industries

  • Aluminium Flattened Expanded Metal Used In Construction Industries
  • Aluminium Flattened Expanded Metal Used In Construction Industries
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features It Has Light Weight For Easy Transportation. Product Name Expanded Metal Mesh
Material Pure Aluminum Plate, Aluminum Alloy Plate(1050, 5052, 5056) Surface Bright Silver
Pattern Flattened Type Hole Diamond
Thickness 0.5 To 8mm Width 600mm To 2000mm
Length 600mm To 4000mm Application Bird Guards, Gutter Guards, Greenhouse Staging, Etc
High Light

Bright Silver Aluminium Expanded Metal

,

Flattened Expanded Metal

,

Bright Silver Expanded Metal
Leave a Message
Product Description

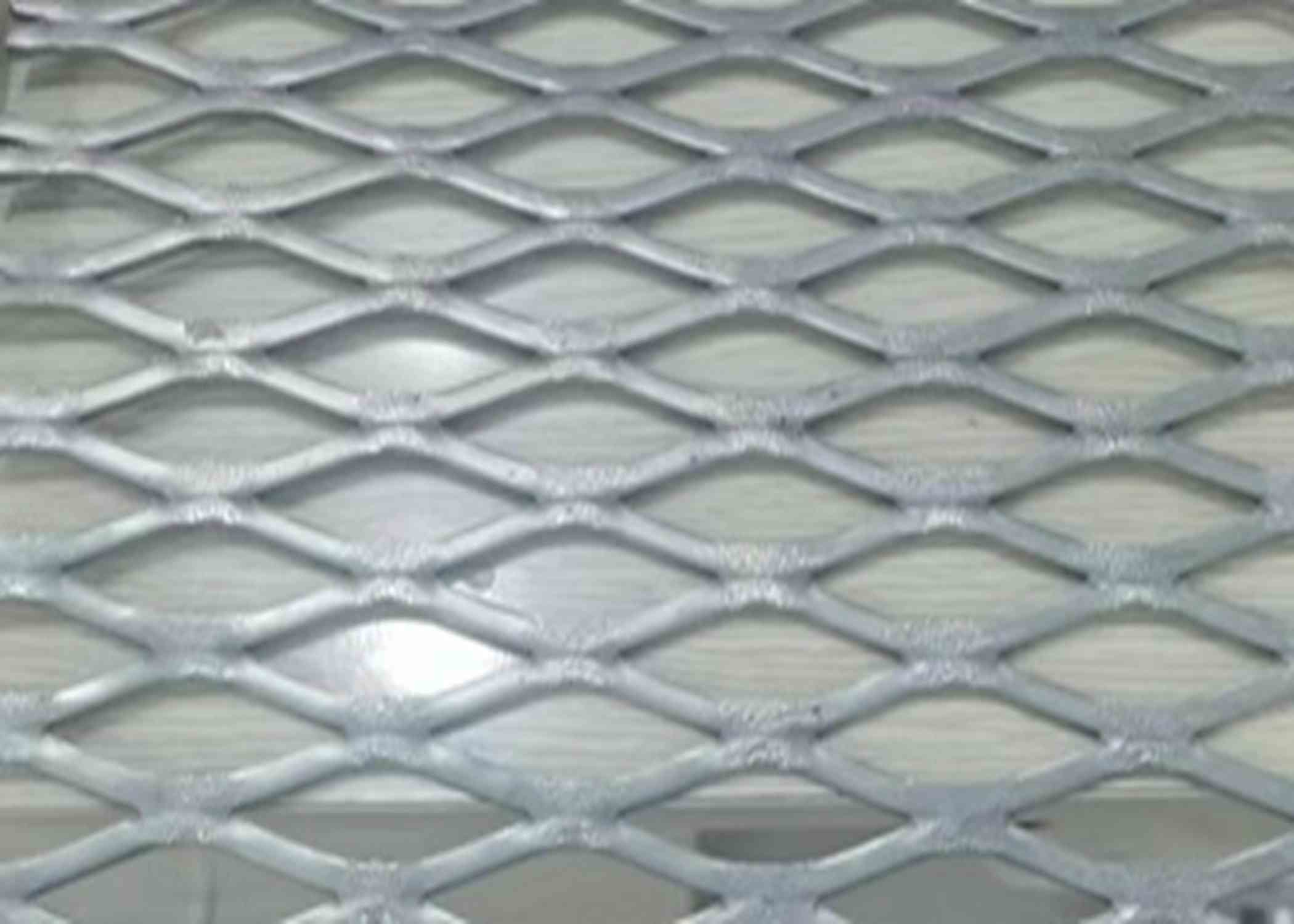

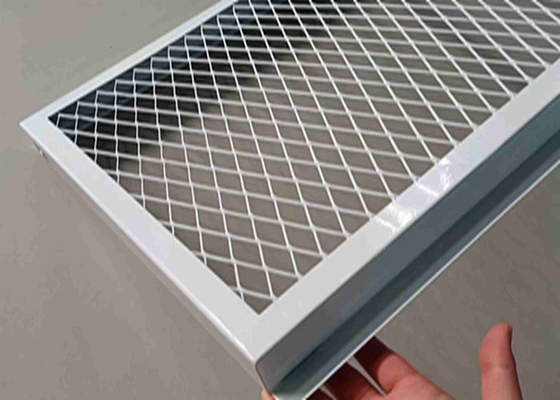

Aluminium Flattened Expanded Metal Used In Manufacturing & Construction Industries



Aluminum expanded metal Mesh Introduction:



Aluminium expanded aluminium mesh which has been worked from one sheet of metal and pressure rolled. By flattening the sheets, the bonds and strands are turned down to produce a smooth and flat surface and resulting in strands which are on the same plane as the sheet.



Aluminium flattened mesh is used in the following industries:

Manufacturing & construction
Automotive & transport
Design & DIY


Aluminium flattened mesh typical applications include:

Bird guards
Gutter guards
Greenhouse staging



Specifications:



Specification of Expanded Metal Mesh
Sheet Thickness Opening in Width Opening in Length Stem Roll Width Roll Length Weight
mm mm mm mm kg/m2
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26



Other specifications as your requests.




Materials:



Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)




Features of aluminum expanded metal sheet:



Lightweight. It is the most important feature of aluminum expanded metal sheet. The lightweight expanded metal sheet is widely used in the decorative applications.
Rigid and solid. Though the aluminum expanded metal is lightweight, but it is still solid no matter in the structure or in the service life.
Corrosion and rust resistance. The aluminum expanded metal sheet will form a layer of oxidation film, which can prevent expanded metal sheet from corrosion and rust.
Economical. The aluminum expanded metal sheet has better corrosion and rust resistance but the cost is lower than the stainless steel expanded metal sheet, so it is the economical choice.
Various colors for choice. The aluminum expanded metal sheet can be coated in various colors, including red, white, golden and any other colors you want. This make it be used in more applications.



Applications of expanded metal sheet:



Machinery guarding, Security mesh
Decorative panels for architectural use
Bird proofing, Trays, benches, gratings, Non-slip surfaces
Strengthening and reinforcing material for concrete and plastic products
Car grilles, Screening, Shelving
Ventilation, Racks, Animal cages and flooring
Correctional facilities & transport
Sun screens, Privacy screens, Plant supports
Anti-glare screens, Building cladding
Display stands, Street furniture
Filters, Fire screens, Ceiling panels, Grilles





Aluminium Flattened Expanded Metal Used In Construction Industries 0

Aluminium Flattened Expanded Metal Used In Construction Industries 1









Packing:



Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type



Aluminium Flattened Expanded Metal Used In Construction Industries 2
