Pre Galvanised Expanded Metal Used For Filtration And Agricultural Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Cheaper Than Other Materials | Product Name | Expanded Metal Mesh |
|---|---|---|---|
| Material | Copper, Stainless Steel, Steel, Metal Alloys, Galvanized Steel, Aluminum, Iron | Surface | Galvanized Or Pvc Coated |
| Pattern | Raised Type, Flattened Pattern | Hole Pattern | Diamond, Hexagonal, Micro Hole, Oval Hole And Various Decorative Holes. |
| Thickness | 0.5 To 8mm | Width | 0.6m To 2.2m |
| Length | 30m, 50m, Etc | Application | Filtration And Agricultural Applications |
| Highlight | Pre Galvanised Expanded Metal,Filtration Expanded Metal Mesh,Agricultural Expanded Metal Mesh |
||
Product Description

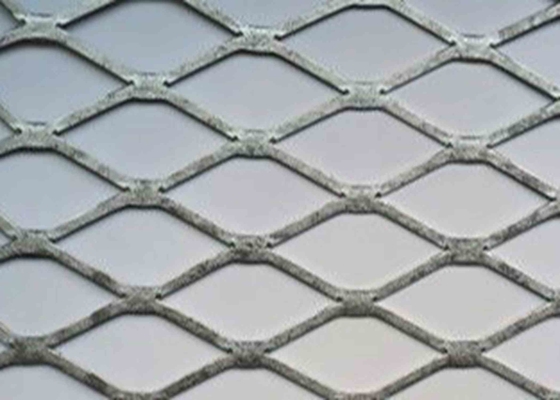

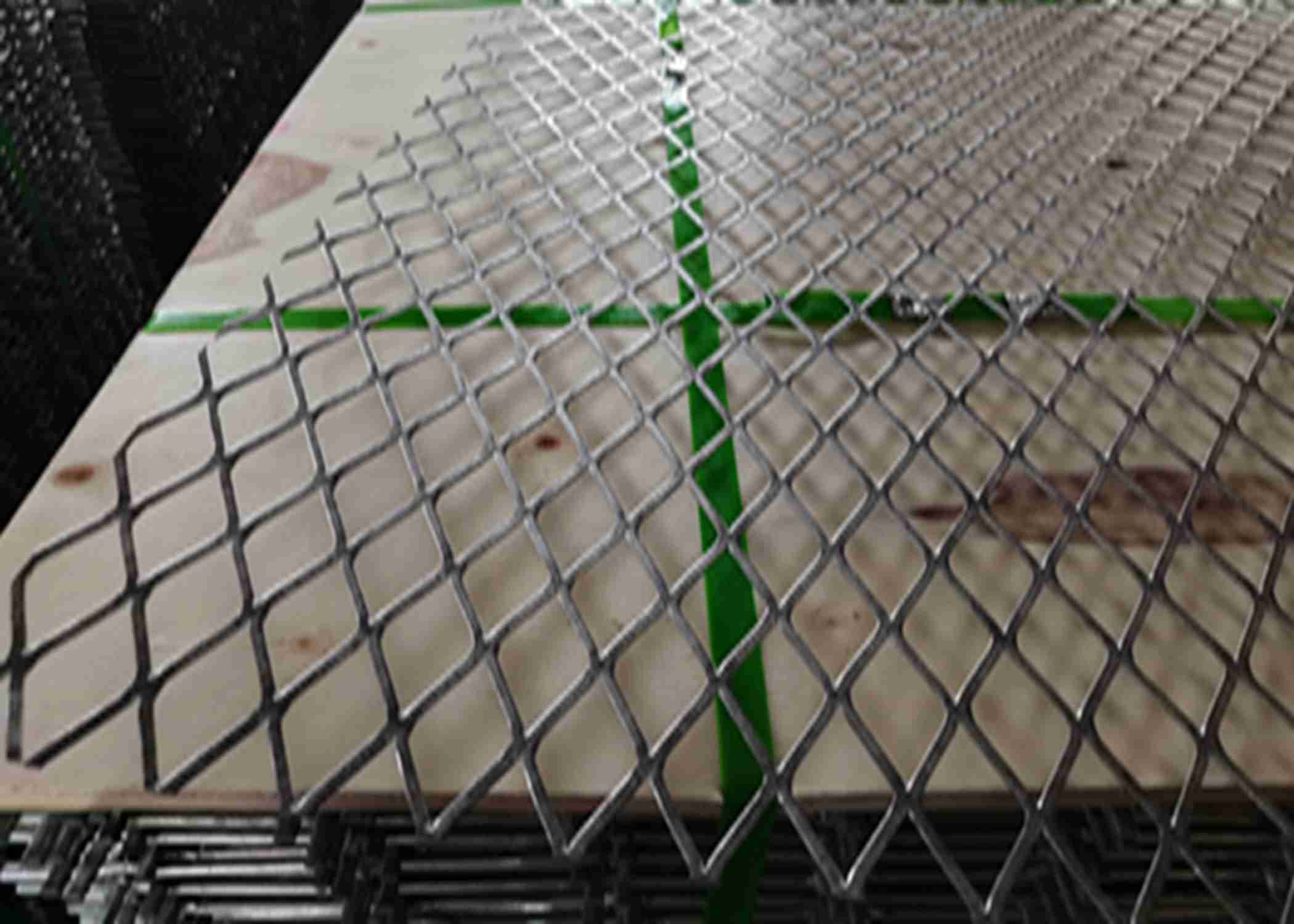

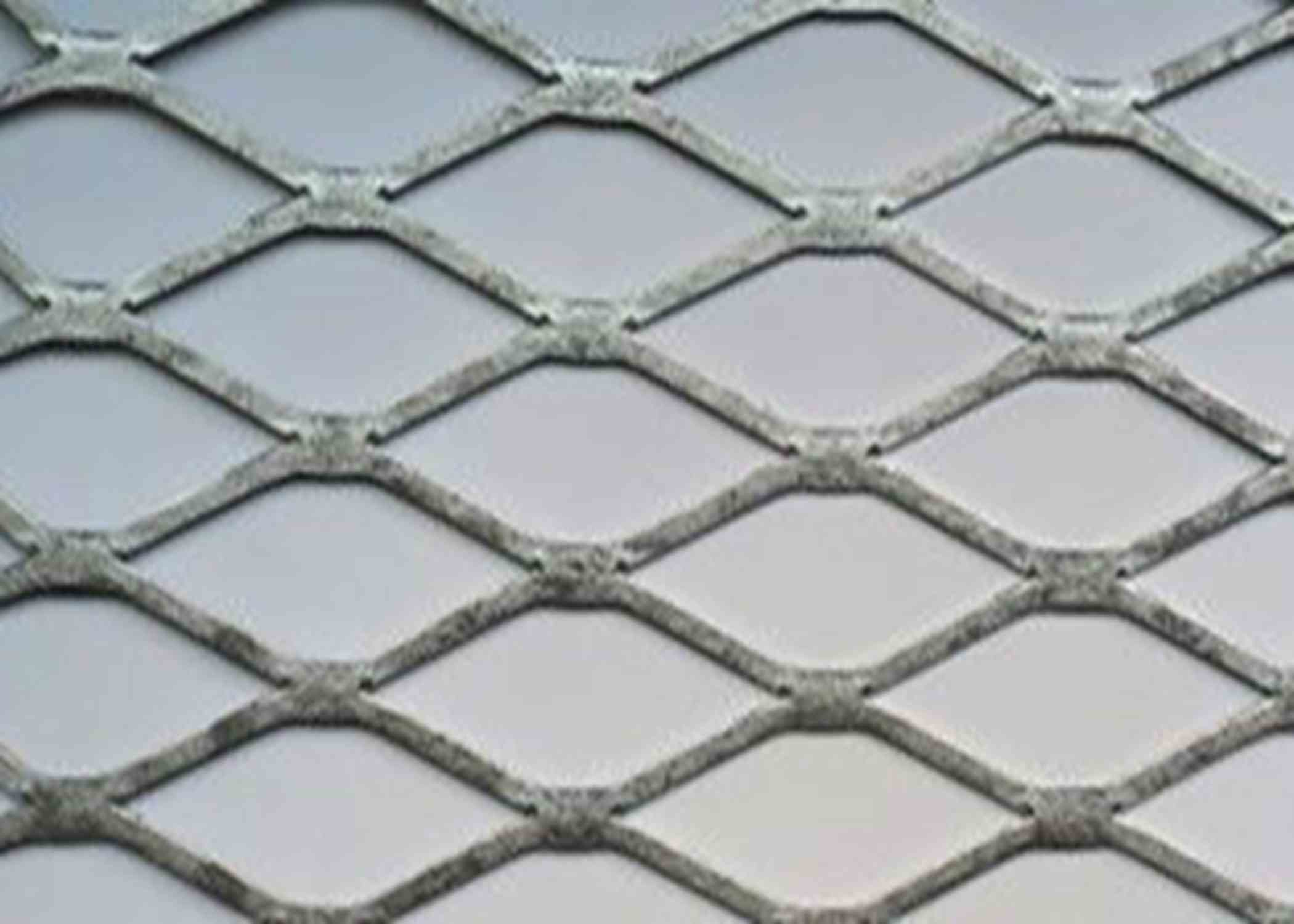

Pre-Galvanised Expanded Metal Used For Filtration And Agricultural Applications
Expanded metal sheet Mesh Introduction:
All our steel mesh is made from a variety of grades. The most common grades are hot rolled, cold reduced, electro zinc and galvanised steel. All materials can be coated using various applications, i.e. galvanising, painting, powder coating etc. All steel grades supplied conform to the relative quality standards.
Pre-galvanised flattened expanded mesh is used for filtration and agricultural applications. Our pre-galvanised steel meshes are available in the following patterns and sizes.
Steel expanded metal sheet has different hole patterns, such as diamond holes, oval holes, hexagonal holes and other decorative holes. As for the mesh surface, it can be divided into raised surface and flattened surface. Different surfaces and hole patterns can be used in different applications, just choose the perfect one according to your requirements.
Specifications:
| mesh thickness | distance shortm(mm) | distance long(mm) | strip(mm) |
| 0.5 | 2.5 | 45 | 0.5 |
| 0.5 | 10 | 25 | 0.5 |
| 0.6 | 10 | 25 | 1 |
| 0.8 | 10 | 25 | 1 |
| 1 | 15 | 25 | 1.1 |
| 1 | 10 | 40 | 1.5 |
| 1.2 | 10 | 25 | 1.1 |
| 1.2 | 15 | 40 | 1.5 |
| 1.5 | 15 | 40 | 1.5 |
| 1.5 | 23 | 60 | 2.6 |
| 2 | 18 | 50 | 2.1 |
| 2 | 22 | 60 | 2.6 |
| 3 | 40 | 80 | 3.8 |
| 4 | 50 | 100 | 4 |
| 4 | 60 | 120 | 4 |
| 4 | 80 | 180 | 4 |
| 4 | 100 | 200 | 4 |
| 4.5 | 50 | 100 | 5 |
| 5 | 50 | 100 | 5 |
| 5 | 75 | 150 | 5 |
| 6 | 50 | 100 | 6 |
| 8 | 50 | 100 | 8 |
Other specifications according to your requirements.
Features of steel expanded metal sheet:
Steel expanded metal sheet is much cheaper than the aluminum expanded metal sheet or stainless steel expanded metal sheet.
Good corrosion and rust resistance. Galvanized and PVC coated surface treatment supplies outstanding corrosion and rust resistance performance. Can be interchanged for perforated metals in multiple applications, giving comparable aesthetics, strength, open area, acoustic and filtration properties. Unlike perforated metal, where holes are punched in the material and the waste is costly, our Experf manufacturing process involves slitting and stretching the material to create holes.
Applications of steel expanded metal sheet:
Medical - hospitals and medical office applications require a e and sterile environment
Vacuum Cleaners - used to pick up small particles and dust
HVAC - to remove particles form the air in residential, commercial and vehicles
Airlines - to reduce the spread of pathogens and viruses in re-circulated air
Cleanroom - when dust and particles cannot be tolerated due to industrial or research processes
Air Purifiers - reduce the amount of airborne viruses within homes and offices
Packing:
Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type
Our expanded metal mesh product list:
Raised Expanded Metal Sheet
Flattened Expanded Metal Sheet
Micro Expanded Metal
Mild Steel Expanded Metal Sheet
Steel Expanded Metal Sheet
Aluminum Expanded Metal Sheet
Stainless Steel Expanded Metal Sheet
Copper Expanded Metal Sheet
Expanded Metal Security Fence
Expanded Metal Isolation Fence
Decorative Expanded Metal Mesh
Expanded Metal Grating
Expanded Metal Grilles
Expanded Metal Filter Element
Expanded Metal Barbecue Grill
Expanded Metal Ceiling
Expanded Metal Chimney Cap
Expanded Metal Brick Mesh
Expanded Metal Corner Bead
Expanded Metal Corn Cage
Expanded Metal Office Supplies
Expanded Metal Facade
Expanded Metal Infill Panels
Trash Can
Cab & Truck Dividers
Machine Guarding
DVA Mesh
Expanded Metal Gate
Expanded Metal Furniture
Expanded Metal Bridge
Plaster Mesh
Interior Decoration
Dehydrator & Drying Rack
Landscape & Utility Trailers
