Expanded Metal Mesh Stainless Steel 304 Raised And Flattened

  • Expanded Metal Mesh Stainless Steel 304 Raised And Flattened
  • Expanded Metal Mesh Stainless Steel 304 Raised And Flattened
  • Expanded Metal Mesh Stainless Steel 304 Raised And Flattened
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Acid And Alkali Resistance. Product Name Expanded Metal Mesh
Material Stainless Steel 304 Surface Bright Silver
Pattern Raised Type, Flattened Type Hole Diamond
Thickness 0.5 To 8mm Width Max 2200mm
Length Customized Application Walkways. Scaffold Gratings, Wall Cladding, Etc
Highlight

Expanded Metal Mesh Stainless Steel 304

,

SS 304 Expanded Metal Mesh

,

Expanded Metal Mesh Flattened
Leave a Message
Product Description

Expanded Metal Mesh Stainless Steel 304 Raised Mesh And Flattened Mesh



Expanded Metal is formed from a single piece of metal which involves slitting and stretching the metal to create holes instead of punching or cutting it out. By expanding metal from its solid sheet form additional strength is added, thus making it ideal for catwalks, ramps, walkways and platforms. Expanded Metal Mesh can be made from a wide range of materials, namely mild steel expanded mesh, galvanized expanded mesh, and stainless steel expanded mesh and other alloys.



Formed from a single piece of metal, expanded metal possesses many properties, making it a very versatile material suitable for applications across many industries including: a wide range of industrial, commercial and domestic applications.



Most of our stainless steel meshes are produced from grade 1.4301 (304SS). Choose below for our choice of flattened and raised stainless steel 304 expanded metal. Stainless steel expanded metal mesh comes in two forms: raised mesh and flattened mesh, both of which offer different properties



Raised expanded metal sheet introduction:



Raised expanded metal sheet is the common type of expanded metal sheet. The raw material sheets are slit and stretched into diamond, hexagonal and other hole patterns. Compared with flattened expanded metal sheet, which has a smooth surface, the raised expanded metal sheet has a slightly raised surface, which can supply better anti-slip performance. Additional, it will add additional strength and rigidity to the expanded metal sheet.





Specifications:



Raised Expanded Metal
Mesh Pitch Mesh Pitch Strand Width(mm) Strand Thickness(mm)

Sheet Size

(mm)

 Material Type
LW (mm) SW (mm)
3 1.9 0.6 0.4 500 x 1000 Mild Steel
5.84 3.5 0.79 0.6 1250 x 1250 Mild Steel
10.24 5.64 1.55 0.9 1250 x 1250 Mild Steel
19.05 7.43 1.7 0.9 1250 x 2500 Mild Steel
19.05 9.5 1.22 1.2 1250 x 1250 Mild Steel
25.4 12.7 1.27 1.2 1250 x 1250 Mild Steel
25.4 13.5 3 0.9 1250 x 2500 Mild Steel
28.58 9.52 1.98 1.2 1250 x 2500 Mild Steel
30.48 11.72 2.36 1.6 2440 x 1220 Mild Steel
30.48 11.72 1.98 1.6 2440 x 1220 Mild Steel
38.1 16.93 3.08 1.6 2440 x 1220 Mild Steel
38.1 16.48 2.25 1.6 2440 x 1220 Mild Steel
50.8 22.58 3.89 3 2440 x 1220 Mild Steel
50.8 22.58 3.12 3 2440 x 1220 Mild Steel & H D Galv
50.8 22.58 2.52 2.5 2440 x 1220 Mild Steel
50.8 22.58 3.05 1.6 2440 x 1220 Mild Steel
76.2 33.87 3.58 3 2440 x 1220 Mild Steel
85.73 40.64 3.18 3 2440 x 1220 Mild Steel
101.6 50.8 5.03 3 2440 x 1220 Mild Steel
101.6 50.8 3.35 3 2440 x 1220 Mild Steel
121.92 31.28 3.5 3 2440 x 1220 Mild Steel
5.84 3.5 0.79 0.6 1250 x 1250 Pre-Galv
5.84 3.5 0.79 0.6 1250 x 2500 Pre-Galv
10.24 5.64 0.79 0.6 1250 x 1250 Pre-Galv
10.24 5.8 2.45 1.5 750 x 1250 Pre-Galv
19.05 9.5 1.22 1.2 1250 x 1250 Pre-Galv
25.4 12.7 1.27 1.2 1250 x 1250 Pre-Galv
30 11.1 1.83 0.9 1250 x 700 Pre-Galv
50.8 23 2.5 0.6 1250 x 2440 Pre-Galv
5.84 3.5 0.79 0.5 1250 x 1250 Aluminium
5.84 3.5 0.79 0.5 1250 x 2500 Aluminium
5.84 3.5 0.79 0.5 1250 x 3000 Aluminium
10.24 5.64 1.17 1.2 1250 x 1250 Aluminium
10.24 5.64 1.55 0.9 1250 x 1250 Aluminium
10.24 5.64 1.55 0.9 1250 x 2500 Aluminium
19.05 12.7 1.1 1.2 1250 x 2500 Aluminium
19.05 7.43 1.7 0.9 1250 x 2500 Aluminium
19.05 9.5 1.22 1.2 1250 x 1250 Aluminium
25.4 11.67 1.27 1.2 1250 x 1250 Aluminium
30.48 11.72 2.36 1.2 1250 x 2500 Aluminium
50.8 22.58 3.12 3 2500 x 1250 Aluminium
5.84 3.39 0.8 0.5 1250 x 1250 Stainless 304
19.05 7.26 1.71 0.9 1000 x 2000 Stainless 304
38.1 16.48 1.91 1.2 2500 x 1250 Stainless 304
50.8 23.44 2.65 1.2 2500 x 1250 Stainless 304
30 10.5 1.5 0.5 2500 x 700 Stainless 304
50.8 22.5 1.6 0.6 1250 x 2440 Stainless 430



Features of ss304 expanded metal sheet:



1. Neat and precise, without bug.
2. Regulate and precise mesh
3. High compressive strength
4. Hot-resistance and rust-resistance
5. Wear-resistance
6. Good moulding



Applications of raised expanded metal sheet:



304 stainless steel is a commercial grade of stainless steel sheet metal and the most widely used stainless steel. 304 stainless steel sheet metal is a versatile, anti-rusting and heat resistant steel for general use. 304 stainless steel sheet metal uses include food equipment, plumbing materials, kitchen sinks, and back splashes. 304 stainless steel expanded metal is austenitic, meaning it will not attract or hold a magnet. If you need expanded metal that attracts a magnet, the galvanized expanded metal would be the choice.

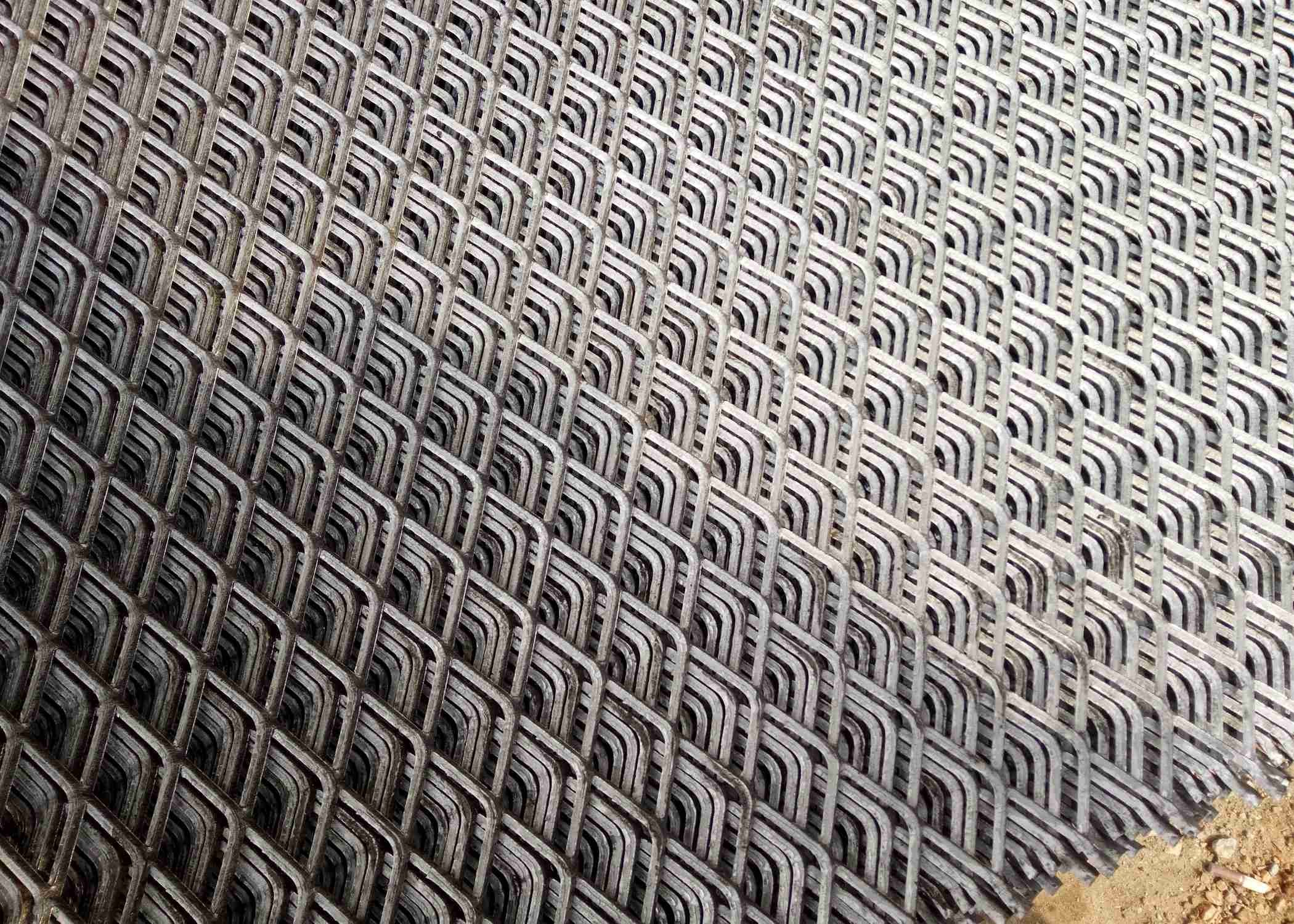

Expanded Metal Mesh Stainless Steel 304 Raised And Flattened 0



Packing:



Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type

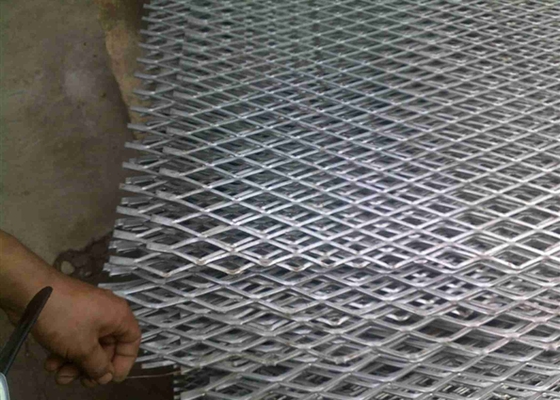

Expanded Metal Mesh Stainless Steel 304 Raised And Flattened 1
