Stainless Steel Perforated Metal Mesh 0.40 - 5.00MM Thickness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Incomparable Mechanical Properties | Product Name | Stainless Steel Perforated Metal Mesh |
|---|---|---|---|
| Material | SS304 SS316, Etc | Hole Shape | Round, Square, Rectangle, Diamond, Star, Triangle, Hexagon, Etc |
| Thickness | 0.5mm To 8.0mm | Hole Pattern | 90°, 45°, 60° |
| Width | 1000mm/ 1220mm / Other Width Upon Requests | Length | 2000mm/ 2440mm/ Other Length Upon Requests |
| Application | Is Suitable Used For Sunshade Panels For High Building And Leisure Place. | ||
| High Light | Stainless Steel Perforated Metal Mesh,Perforated Metal Mesh 0.40MM Thickness,Perforated Metal Mesh 5.00MM Thickness |
||
Product Description
Stainless Steel Perforated Metal Mesh 0.40 ~ 5.00MM Thickness
Stainless Steel 304 316 Grade Round Square Slot Hole Perforated Metal Mesh
Stainless Steel Perforated Metal Mesh Introduction:
Perforated metal is one of the most versatile and popular metal products on the market today. Perforated sheet can range from light to heavy gauge thickness and any type of material can be perforated, such as perforated carbon steel. Perforated metal is versatile, in the way that it can have either small or large aesthetically appealing openings. This makes perforated sheet metal ideal for many architectural metal and decorative metal uses. Perforated metal is also an economical choice for your project. Our perforated metal filters out solids, diffuses light, air, and sound. It also has a high strength-to-weight ratio.
We supply a comprehensive range of stainless steel perforated sheets in a choice of hole sizes, pitches, patterns and sheet thicknesses. Suitable for a range of applications perforated type 304 stainless steel sheets possess many useful qualities including thermal capabilities and corrosion resistance, making perforated stainless steel ideal for many internal and external applications. Perforated stainless steel 304 metal sheets are widely used in the automotive industry, pharmaceutical, medical and petro-chemical sectors. Some applications include filtration, sterilisation, flooring, and architectural infill panels.
Material:
304, 316, 430, 410, 301, 302, 303, 321, 347, 416, 420, 430, 440, etc. Other standards materials are also available as your requirements.
Parts of Specifications:
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
| 3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
| 1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
| 1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
| 3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
Features:
Stainless steel perforated metal is punched into various patterns. It is winding resistant, ageing resistant and corrosion resistant. The surface of the sheet metal is smooth, it is strong and durable.

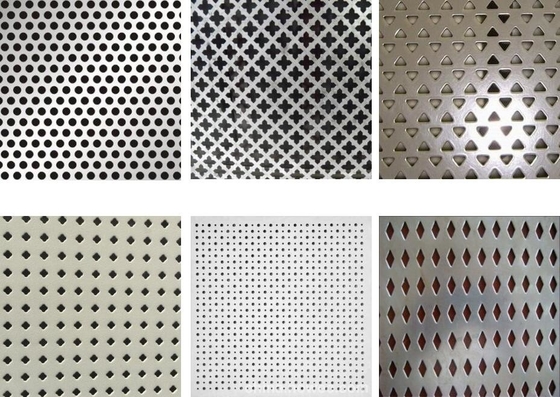

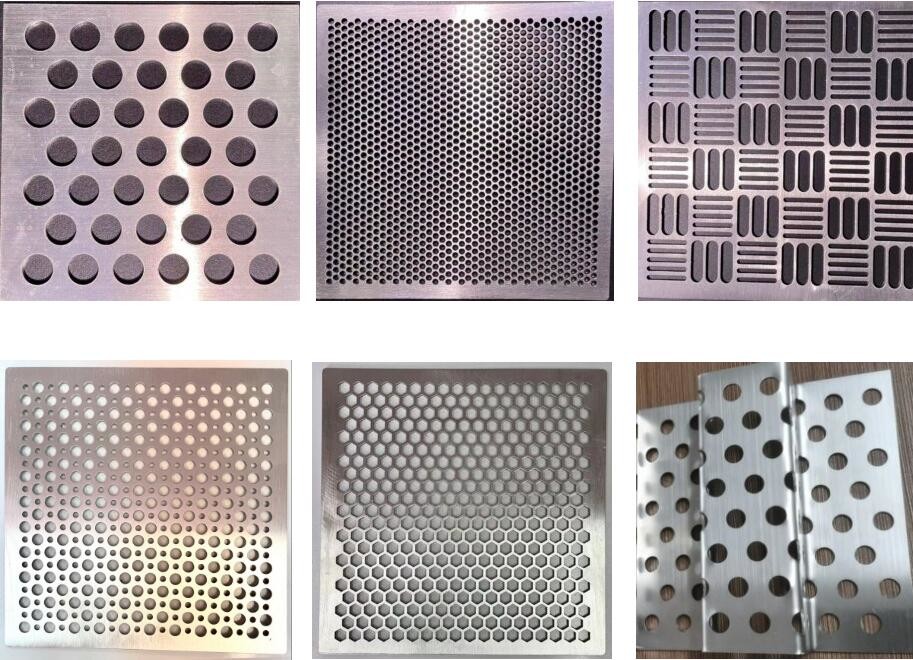

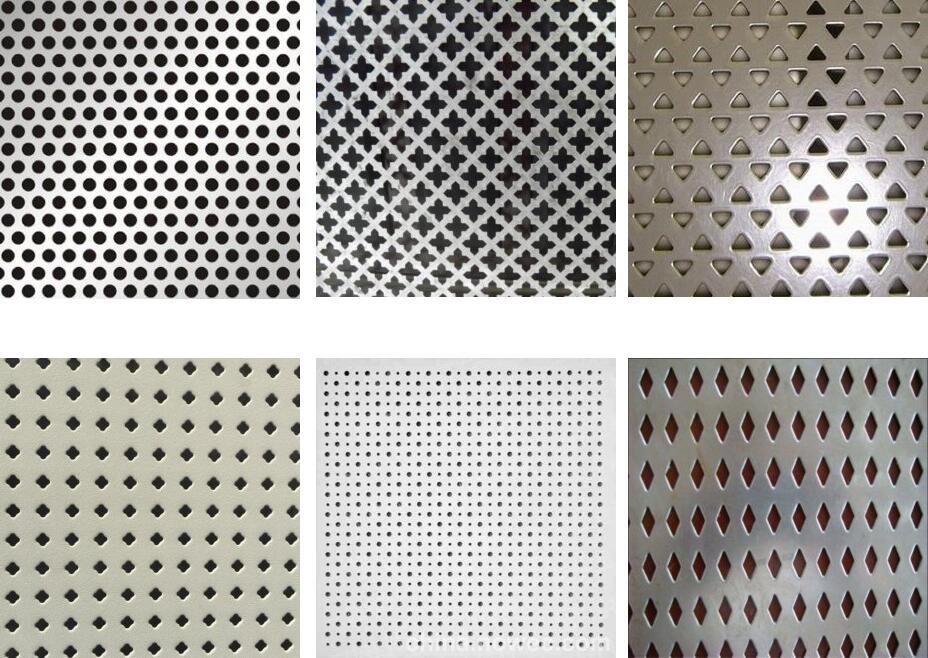

Hole Patterns including:
Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Metal screens
Metal diffusers
Metal guards
Metal filters
Metal vents
Metal signage
Architectural applications
ety barriers
Packing:
When ordering perforated sheet, we ask that you specify the following options:
Material type
Thickness (gauge)
Hole size
Hole shape
Spacing & configuration
Perforated sheet size
Quantity
Our Perforated Metal Mesh List:
Round hole perforated sheet
Square hole perforated sheet
Slot hole perforated sheet
Decorative Perforated Sheet
Embossed sheet
Perforated steel sheet
Perforated stainless steel sheet
Perforated aluminum sheet
perforated copper or brass sheet
Etched plates
Perforated metal noise barrier
Perforated filter form SS, carbon steel, aluminum, or copper sheet
Perforated tube
Perforated sunshade panel
Perforated kinetic facade
Anti-skid stair steps
Hexagonal hole perforated metal
Louver hole perforated metal
Raised Perforated Metal
Nickel perforated metal
Galvanized perforated metal
Carbon steel perforated metal
Perforated metal for filter
Perforated Metal for facade
