Square Staggered Perforated Metal 2mm Hole 6mm Center Disatance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Open Area | Product Name | Square Staggered Perforated Metal |
|---|---|---|---|
| Material | Stainless Steel 304/316, Galvanized, Carbon Steel, Etc | Hole Size | 2mm To 60mm |
| Punched Type | Perforated | Pattern | 90° Straight, Staggered, Diagonal Type |
| Centers | 6mm To 80mm | Width | Up To 4mm |
| Length | 1m, 1.5m, 30m, Etc | Applications | Architectural Applications |
| Highlight | 2mm Hole Perforated Metal Mesh,Staggered Perforated Metal Mesh,Square Perforated Metal Mesh |
||
Product Description
2mm Hole 6mm Center Disatance Square Staggered Perforated Metal

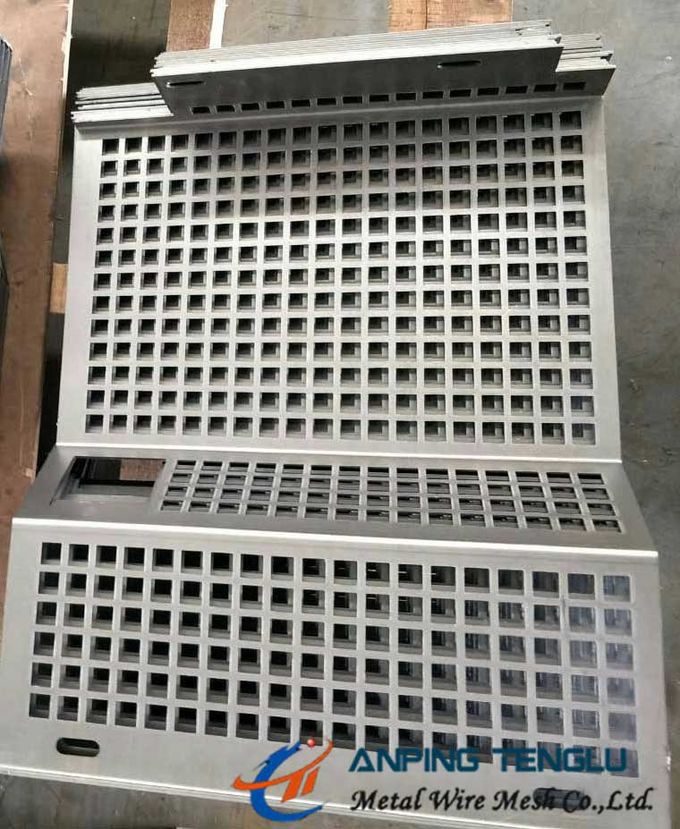

Square Hole Perforated Metal Introduction:
Square hole perforated sheet, punched by a square die, is known as an alternative to traditional round hole perforated sheet. With high open area, the sheet is often used as grilles especially speaker grilles to allow sound pass through easily while protecting the speaker from damage of vibration. Meanwhile, it also is used for shop fitting display offering excellent visibility.
Square Staggered Perforated metal is manufactured by using punches or presses to create a series of holes, slots, bars or decorative patterns in sheet. It has countless applications and can be easily custom manufactured according to requirements.
Material:
Stainless steel plate. Other materials such as carbon steel, nickel, copper or aluminum also available.
| Stainless Steel | 201, 202, 304, 316, 321, 410, 430 |
| Copper | brass, pure copper, phosphor bronze |
| Aluminum | 1050, 1060, 1100, 5052, 5056 |
| Carbon Steel | High Carbon Steel, Mild Carbon Steel, Low Carbon Steel |

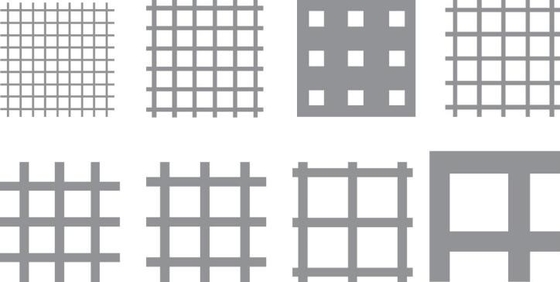

Various hole patterns:
Square hole perforated sheets can be supplied with straight, staggered and diagonal hole arrangements for your application. The most common and widest used type among them is the straight one.
Features:
Mild carbon steel perforated sheet is themost economical material than the aluminum or stainless steel. It can begalvanized for corrosive resistance.
Aluminum perforated sheet, like stainlesssteel perforated sheet, is corrosion resistant. It is, however, much lighterand softer than stainless steel and carbon steel.
Stainless Steel Perforated Sheet - CorrosiveResistance, High temperature resistance, Acid resistance, High strength andhardness, Ease of fabrication and maintenance.
Applications:
The square staggered perforated metal that we manfucture is ideal for many applications ranging from metal screens to metal signage. The most common applications for perforated metal include:
Metal screens
Metal diffusers
Metal guards
Metal filters
Metal vents
Metal signage

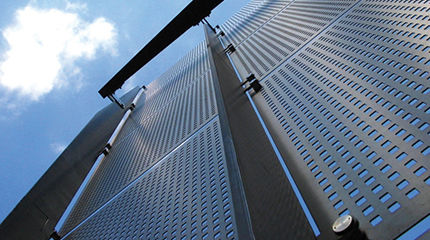

Architectural applications
ety barriers
diffuses light,air, and sound
Specifications:
Material: stainless steel 304/316, galvanized, carbon steel, etc
-Sheet size: 1220mmx2440mm or cut to size
-Quantity: 100sheets or others,
-Hole size: 2mm
-Centers: 6mm
-Orientation: Straight or staggered
| Square Hole 90°Straight Pattern Perforated Metal | ||
| Hole Size | Pitch | Open Area |
| C(mm) | Z1, Z2(mm) | % |
| 3.0 | 5.0 | 36.0 |
| 4.0 | 7.0 | 32.7 |
| 4.0 | 8.0 | 25.0 |
| 5.0 | 8.0 | 39.1 |
| 5.0 | 16.0 | 9.8 |
| 6.0 | 9.0 | 44.4 |
| 7.0 | 10.0 | 49.0 |
| 8.0 | 10.0 | 64.0 |
| 8.0 | 11.0 | 52.9 |
| 8.0 | 12.0 | 44.4 |
| 8.0 | 24.0 | 11.1 |
| 10.0 | 12.0 | 69.4 |
| 10.0 | 13.0 | 59.2 |
| 10.0 | 14.0 | 51.0 |
| 10.0 | 15.0 | 44.4 |
| 15.0 | 20.0 | 56.3 |
| 15.0 | 40.0 | 14.1 |
| 15.0 | 60.0 | 6.3 |
| 20.0 | 30.0 | 44.4 |
| 20.0 | 35.0 | 32.7 |
| 20.0 | 50.0 | 16.0 |
| 25.0 | 30.0 | 69.4 |
| 25.0 | 35.0 | 51.0 |
| 25.0 | 70.0 | 12.8 |
| 30.0 | 60.0 | 25.0 |
| Notes: 1) C stands for length of the side of one square hole 2) Z1, Z2 stand for center to center distance 3) T stands for mesh thickness 4) Open area % is the total area of the holes divided by the total area of the sheet and is expressed as a percent. |
||
Panel Size: 1m*1m, 1m*2m, 1.22m*2.44m, 1m*30m, 1.22m*30m, 1.53m*30m
Other Specifications according to your requirements.
