1.8MM Perforated Aluminium Security Mesh Alu Alloy Grade 5052
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High-Temperature Resistance | Product Name | Perforated Aluminium Security Mesh |
|---|---|---|---|
| Material | Aluminium Alloy Grade 5052 | Hole Shape | Round, |
| Punched | Perforated | Surface | Painted Or Orignal |
| Hole Pattern | 90°, 45°, 60° | Width | 1m, 1.22m, 1.5m To 4m. |
| Length | 15m, 30m To 60m | Application | Security Doors, Front Screen Door That Needs More Privacy And Security. |
| High Light | 1.8MM Perforated Aluminium Security Mesh,5052 Alloy Perforated Metal Mesh,ISO Perforated Aluminium Security Mesh |
||
Product Description

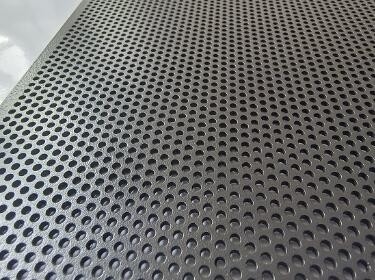

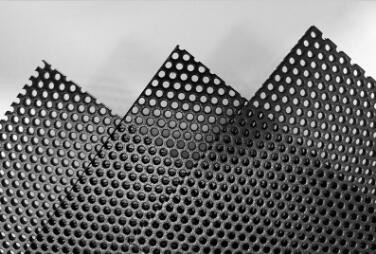

1.8MM Perforated Aluminium Security Mesh Aluminium Alloy Grade 5052
Introduction:
1.8MM Perforated Aluminium Security Mesh utilizes 1.6mm marine-grade 5052 aluminium alloy as its raw material which is then perforated and powder coated to outdoor grade. The thickness will become approx 1.8mm after the sheet is powder coated. Please note that there might be a tiny tolerance during production and measurement.
With a smooth surface and an outstanding staggered round dots appearance, perforated aluminium screen doors attract a lot of customers.
Compare to its stainless steel counterparts, perforated aluminium mesh offers a stronger structure to the screen doors and more privacy for customers' property but at a relatively lower cost.
Perforated Aluminium Sheet is also well corrosion-resistant, marine grade 5052 alloy offers a pretty good weather performance for this material.
1. Material: Aluminium Alloy Grade 5052
2. Pattern: 60°staggered pattern
3. Thickness before powder coated: 1.6mm,
Thickness after powder coated:1.75-1.8mm
4. Hole Dia. / Centers. 2mm/3mm or 2.3mm/3.7mm
5. Opening: 40% or 35%
6. Standard Sheet Sizes:
750 x 2000mm / 750x2200mm / 750x 2400mm
900 x 2000mm / 900x2200mm / 900 x 2400mm
1200 x 2000mm / 1200x2200mm / 1200 x 2400mm
Other sizes can be customized.
7. Finish: Powder Coated Matt Black, other color can be customized.
8. Packing: export standard plywood crate.
9. Application: Security Doors, Front Screen Door that needs more privacy and security.
Parts of Specifications:
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
| 3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
| 1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
| 1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
| 3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
Hole Patterns including:
Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Architecture
Chemical industry.
Offshore industry.
Petrochemical industry.
Petrochemical industry.
Aerospace.
Packing:
Our Perforated Metal Mesh List:
Round hole perforated sheet
Square hole perforated sheet
Slot hole perforated sheet
Decorative Perforated Sheet
Embossed sheet
Perforated steel sheet
Perforated stainless steel sheet
Perforated aluminum sheet
perforated copper or brass sheet
Etched plates
Perforated metal noise barrier
Perforated filter form SS, carbon steel, aluminum, or copper sheet
Perforated tube
Perforated sunshade panel
Perforated kinetic facade
Anti-skid stair steps
Hexagonal hole perforated metal
Louver hole perforated metal
Raised Perforated Metal
Nickel perforated metal
Galvanized perforated metal
Carbon steel perforated metal
Perforated metal for filter
Perforated Metal for facade
