2.0mm Round Hole Perforated Aluminium Security Mesh With Stronger Structure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High-Temperature Resistance | Product Name | Perforated Aluminium Security Mesh |
|---|---|---|---|
| Material | Aluminium | Hole Shape | Round, |
| Punched | Perforated | Thickness | 1.8mm |
| Hole Pattern | 90°, 45°, 60° | Width | 1m, 1.22m, 1.5m To 4m. |
| Length | 15m, 30m To 60m | Application | Chemical Industry, Aerospace, Etc |
| Highlight | Perforated Round Hole Mesh,Perforated Aluminium Security Mesh,2.0mm Perforated Metal Mesh |
||
Product Description

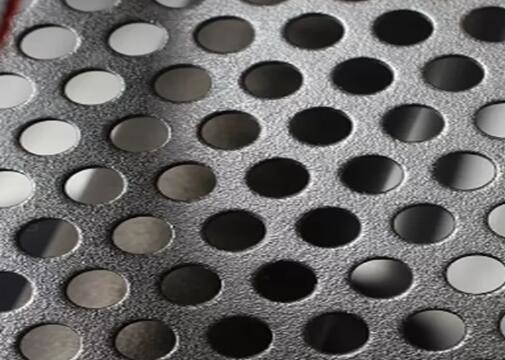

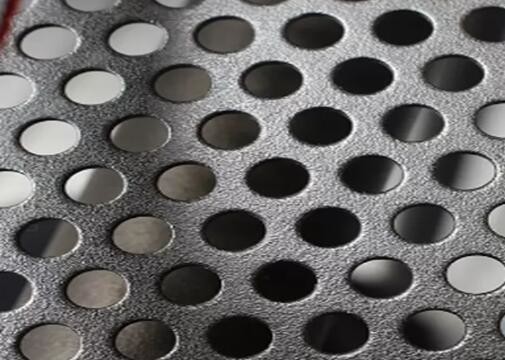

2.0mm Round Hole Perforated Aluminium Security Mesh With Stronger Structure
Introduction:
2.0MM Perforated Aluminium Security Mesh utilizes 1.8mm marine-grade 5052 aluminium alloy as its raw material which is then perforated and powder coated to outdoor grade. The thickness will become approx 2.0mm after the sheet is powder coated. Please note that there might be a tiny tolerance during production and measurement.
With a smooth surface and an outstanding staggered round dots appearance, perforated aluminium screen doors attract a lot of customers.
Compare to its stainless steel counterparts, perforated aluminium mesh offers a stronger structure to the screen doors and more privacy for customers' property but at a relatively lower cost.
Perforated Aluminium Sheet is also well corrosion-resistant, marine grade 5052 alloy offers a pretty good weather performance for this material.
Hole Diameter 2.3mm, Centers 3.7mm, Opening Area: 35%
750 x 2000MM / 750 x 2200MM / 750 x 2400MM
820 x 2000MM / 820 x 2200MM / 820 x 2400MM
900x 2000MM / 900 x 2200MM / 900x2400MM
1200x 2000MM / 1200 x 2200MM / 1200 x 2400MM
Custom sizes are accepted.
Parts of Specifications:
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
| 3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
| 1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
| 1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
| 3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
Hole Patterns including:
Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Architecture
Chemical industry.
Offshore industry.
Petrochemical industry.
Petrochemical industry.
Aerospace.
Packing:
Our Perforated Metal Mesh List:

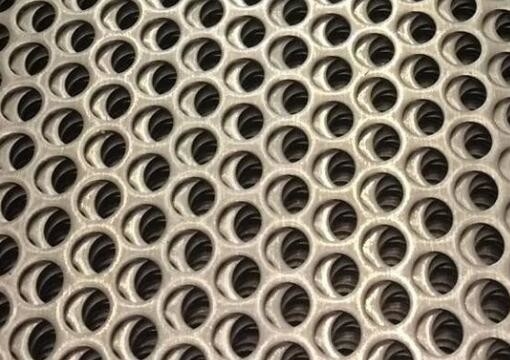

Round hole perforated sheet
Square hole perforated sheet
Slot hole perforated sheet
Decorative Perforated Sheet
Embossed sheet
Perforated steel sheet
Perforated stainless steel sheet
Perforated aluminum sheet
perforated copper or brass sheet
Etched plates
Perforated metal noise barrier
Perforated filter form SS, carbon steel, aluminum, or copper sheet
Perforated tube
Perforated sunshade panel
Perforated kinetic facade
Anti-skid stair steps
Hexagonal hole perforated metal
Louver hole perforated metal
Raised Perforated Metal
Nickel perforated metal
Galvanized perforated metal
Carbon steel perforated metal
Perforated metal for filter
Perforated Metal for facade
