Round 8mm Stainless Steel 316 Wire Uns S31600 / Din 1.4401/ Aisi 316

  • Round 8mm Stainless Steel 316 Wire Uns S31600 / Din 1.4401/ Aisi 316
  • Round 8mm Stainless Steel 316 Wire Uns S31600 / Din 1.4401/ Aisi 316
  • Round 8mm Stainless Steel 316 Wire Uns S31600 / Din 1.4401/ Aisi 316
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 500 kgs
Price Negotiable

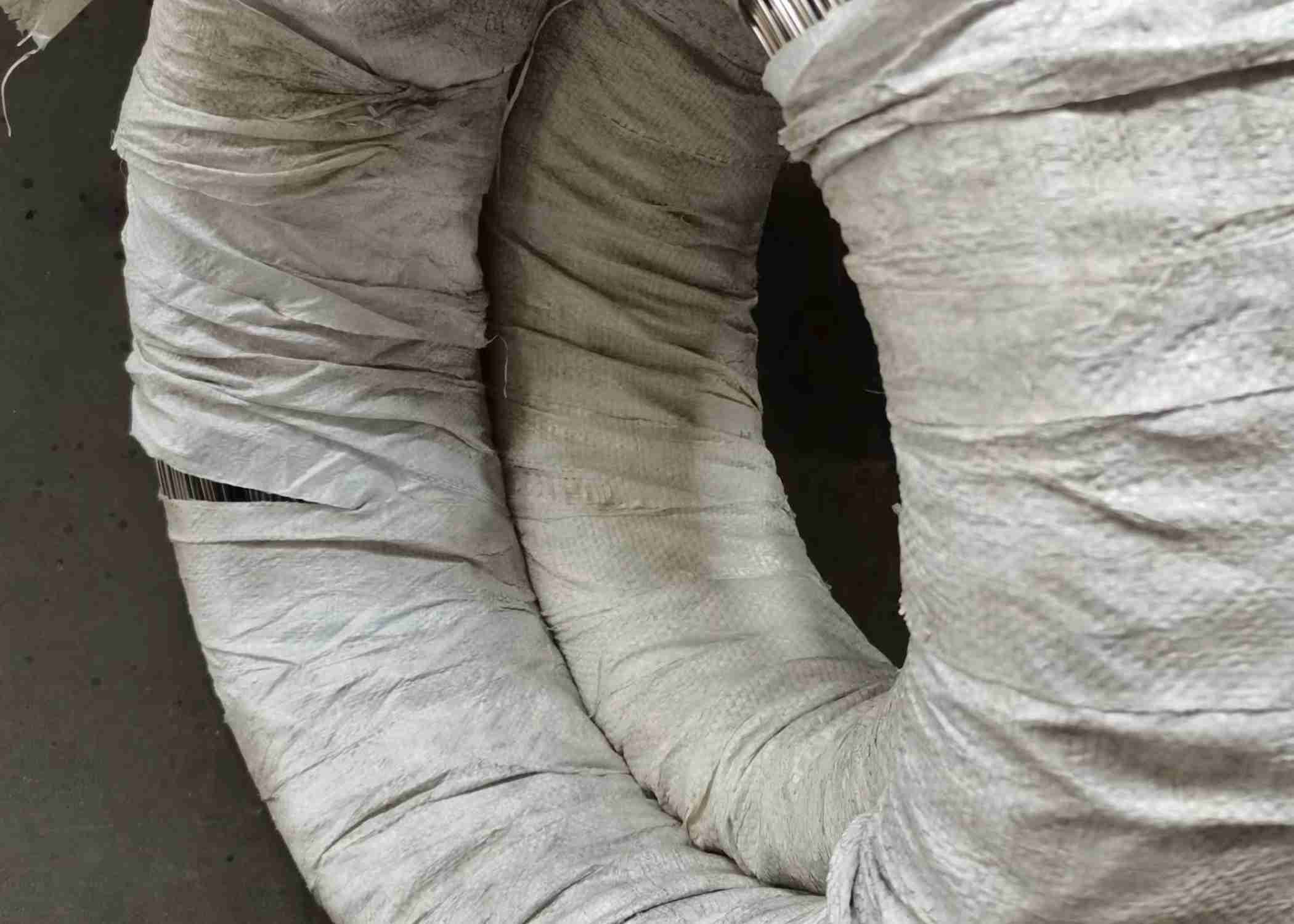

Packaging Details Standard sea-worthy package or as required.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 18000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Better Corrosion Resistance And Non-magnetic Properties Name Stainless Steel 316 Wire
Wire Diameter 0.10mm To 8.00mm Required Size Melting Capacity 18000 Ton/month
Shape Round Wire Length Reuqired
Finish Soft Annealed - ¼ Hard, ½ Hard, ¾ Hard, Full Hard (Matte Or Bright Finish) Application Springs Engineered Components, Wire Mesh
Highlight

round stainless steel 316 wire

,

din stainless steel 316 wire

,

aisi 316 wire
Leave a Message
Product Description

Stainless Steel 316 Wire UNS S31600 / DIN1.4401/ AISI316 Wire

Introduction:



Stainless Steel 316 has slightly better corrosion resistance than 302 and 304, and also has better non-magnetic properties. Stainless Steel 316 shows excellent corrosion and oxidation resistance in a range of atmospheric environments and corrosive media. Stainless Steel 316 is also known as AISI 316.



SS 316 Wire has excellent forming and welding characteristics. Stainless Steel 316 Wire Available are following Specification, Grades and Size.



Type 316 is one of the most commonly used stainless steels, because it contains molybdenum, so corrosion resistance is better than 304. Hightop can provide annealed and cold-drawn 316 stainless steel wire with a wire diameter ranging from 0.002-0.125 inch (0.05-3.2 mm) in accordance with ASTM A478, mainly used for making stainless steel mesh, filter, screen and so on.



Features:



Better corrosion resistance and non-magnetic properties than 302 & 304 stainless.
Better pitting and crevice corrosion resistance than 302 & 304 stainless steel.



Applications:



More suited to Marine, Food and Medical applications than 302 and 304 stainless.
Food processing
Springs
Engineered components
Wire mesh
Wire cloth
Hose braiding



Chemical Composition



Composition, %

Type

C, ≤

Si, ≤

Mn, ≤

P, ≤

S, ≤

Cr

Ni

Mo

N, ≤

316

0.08

1

2

0.045

0.03

16.00-18.00

10.00-14.00

2.00-3.00

0.1

Tensile Strength





Tensile Strength, ksi (MPa), Max

Elongation in 10 in. (254 mm), Min

Diameter, d, mm

Diameter, d, in

Condition

145 (1,000)

30

0.05-0.13

0.002-0.005

Annealed or bright annealed

135 (930)

30

0.13<d≤0.23

0.005<d≤0.009

130 (900)

35

0.23<d≤0.38

0.009<d≤0.015

125 (860)

40

0.38<d≤0.51

0.015<d≤0.020

120 (830)

40

0.51<d≤0.64

0.020<d≤0.025

115 (790)

40

0.64<d≤0.89

0.025<d≤0.035

110 (760)

45

0.89<d≤1.09

0.035<d≤0.043

105 (720)

45

>1.09

>0.043

120 (830)-150 (1030)

15

0.76-3.18

0.03-0.125

Cold drawn

110 (760)- 140 (970)

15

>3.18

>0.125

Specs:

Diameter (mm)
 Tolerance (mm)
0.020-0.049 +0.002, -0.001
0.050-0.074 ±0.002
0.075-0.089 ±0.002
0.090-0.109 +0.003, -0.002
0.110-0.169 ±0.003
0.170-0.184 ±0.004
0.185-0.199 ±0.004
0.200-0.299 ±0.005
0.300-0.310 ±0.006
0.320-0.499 ±0.006
0.500-0.599 ±0.006
0.600-0.799 ±0.008
0.800-0.999 ±0.008
1.00-1.20 ±0.009
1.20-1.40 ±0.009
1.40-1.60 ±0.010
1.60-1.80 ±0.010
1.80-2.00 ±0.010
2.00-2.50 ±0.012
2.50-3.00 ±0.015
3.00-4.00 ±0.020
4.00-5.00 ±0.020





Round 8mm Stainless Steel 316 Wire Uns S31600 / Din 1.4401/ Aisi 316 0



We offer followiong Stainless Steel Wire:


Stainless Steel 304 Wire
Stainless Steel 304L Wire
Stainless Steel 310 Wire
Stainless Steel 310S Wire
Stainless Steel 316 Wire
Stainless Steel 316L Wire
Stainless Steel 317 Wire
Stainless Steel 317L Wire
Stainless Steel 321 Wire
Stainless Steel 321H Wire
Stainless Steel 347 Wire
Stainless Steel 347H Wire
Stainless Steel 446 Wire
