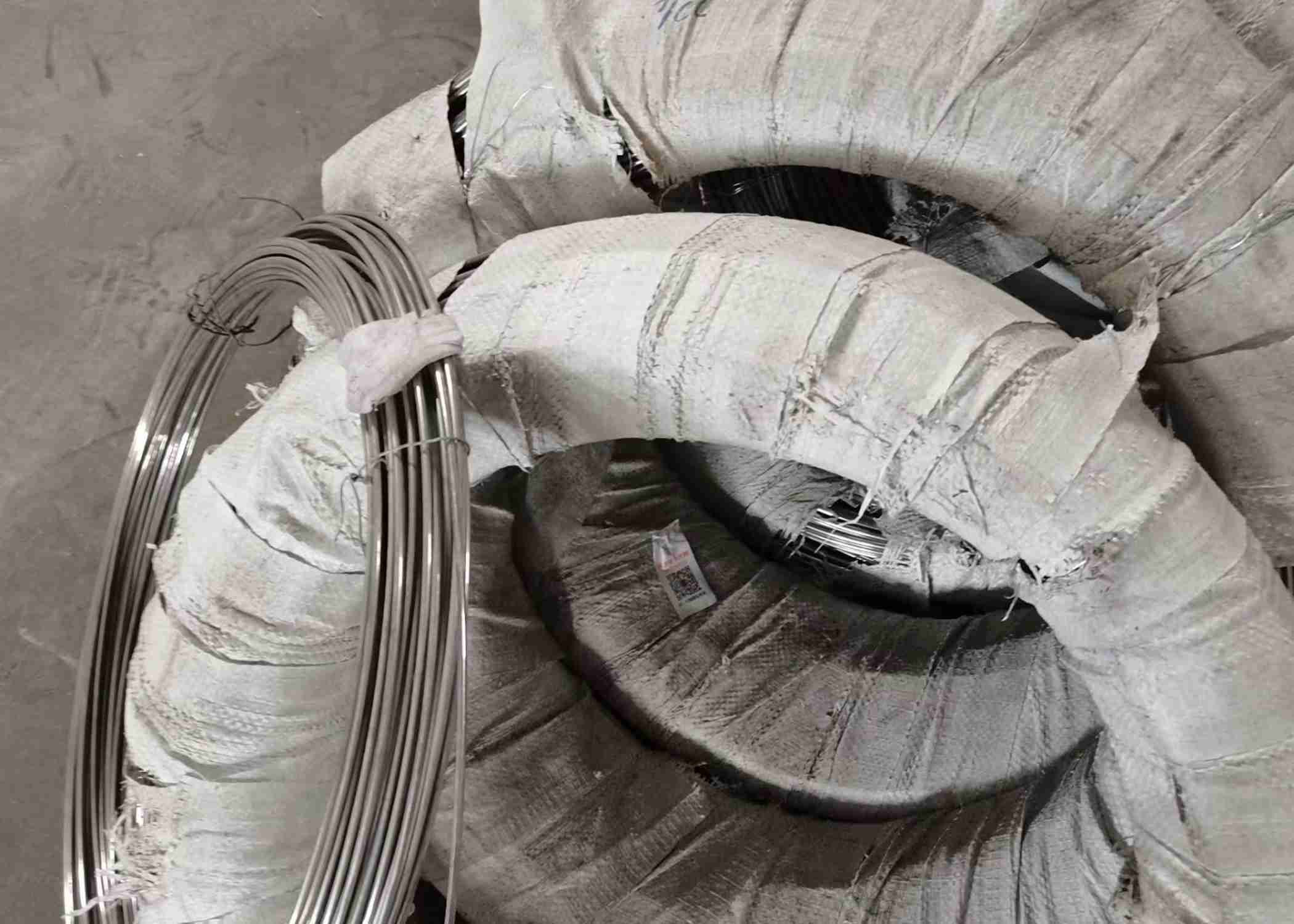

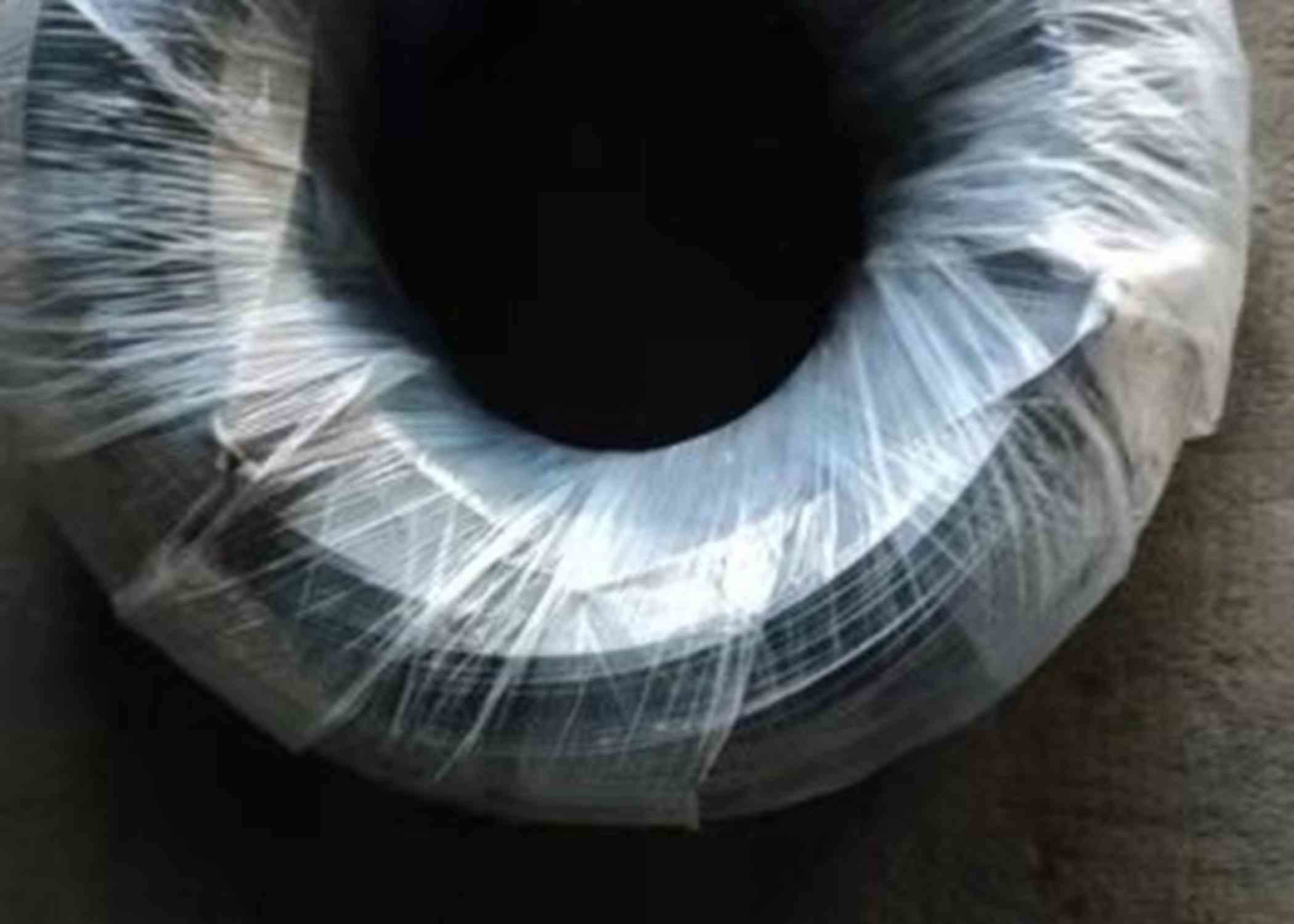

Aisi 304 Stainless Steel Wire Coil 5mm Round

  • Aisi 304 Stainless Steel Wire Coil 5mm Round
  • Aisi 304 Stainless Steel Wire Coil 5mm Round
  • Aisi 304 Stainless Steel Wire Coil 5mm Round
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 500 kgs
Price Negotiable
Packaging Details Standard sea-worthy package or as required.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 18000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stainless Steel 304 Wire Wire Diameter 0.02mm To 5mm
Melting Capacity 18000 Ton/month Shape Round Wire
Length Reuqired Application Springs Engineered Components, Wire Mesh
Highlight

aisi 304 stainless steel wire coil

,

5mm stainless steel wire coil

,

round stainless steel 304 wire
Leave a Message
Product Description

Stainless Steel 304 Wire AISI304 Most Widely Used Material Stainless Steel Wire

Introduction:



Stainless Steel 304 is the most widely used stainless steel, and like 302, it has good mechanical properties and corrosion resistance. This alloy can withstand attack in a range of corrosive media, and its durability makes it easy to sanitise, meaning it is ideal for kitchen and food applications. Stainless Steel 304 is also known as AISI 304.



Our maintains good corrosion resistance in applications where the temperature is between the range of Degree F and Degree F. However, acids and acid solutions containing halide ions can be very aggressive, and the corrosion resistance of our Stainless Steel Filler Wire may possibly be insufficient. Oxidation resistance of this Stainless Steel Electrode is high for continuous service to Degree F, intermittent to Degree F. Often in many product forms, the grain size and carbon content can meet clients’ requirements, where aqueous corrosion resistance is comparable to our Stainless Steel Welding Wire. Heat treatment according to this Stainless Steel Welding Electrode requires a solution anneal at Degree F, and then air cool, further age at Degree F for 16 hours and then air cool. We also offer the same in different grades such as Stainless Steel Wire / Filler / Electrode, Stainless Steel Wire / Filler / Electrode, Stainless Steel Wire / Filler / Electrode, Stainless Steel Wire / Filler / Electrode, Stainless Steel Wire / Filler / Electrode, Stainless Steel Wire / Filler / Electrode, Stainless Steel Wire / Filler / Electrode, Stainless Steel Wire / Filler / Electrode, Stainless Steel Wire / Filler / Electrode, and more.



Stainless Steel 304 offers the following key features:



Good mechanical properties and corrosion resistance.



Applications:



Springs
Engineered components
Wire mesh
Wire cloth
Hose braiding



Chemical Composition

  Chemical Composition, %
Type C, ≤ Si, ≤ Mn, ≤ P, ≤ S, ≤ Cr Ni N, ≤
304 0.08 1.00 2.00 0.045 0.03 18.00-20.00 8.00-10.50 0.10



Tensile Strength



in. mm ksi MPa
d≤0.009 d≤0.23 325-355 2240-2450
0.009<d≤0.010 0.23<d≤0.25 320-350 2205-2415
0.010<d≤0.011 0.25<d≤0.28 318-348 2190-2400
0.011<d≤0.012 0.28<d≤0.30 316-346 2180-2385
0.012<d≤0.013 0.30<d≤0.33 314-344 2165-2370
0.013<d≤0.014 0.33<d≤0.36 312-342 2150-2360
0.014<d≤0.015 0.36<d≤0.38 310-340 2135-2345
0.015<d≤0.016 0.38<d≤0.41 308-338 2125-2330
0.016<d≤0.017 0.41<d≤0.43 306-336 2110-2315
0.017<d≤0.018 0.43<d≤0.46 304-334 2095-2300
0.018<d≤0.020 0.46<d≤0.51 300-330 2070-2275
0.020<d≤0.022 0.51<d≤0.56 296-326 2040-2250
0.022<d≤0.024 0.56<d≤0.61 292-322 2015-2220
0.024<d≤0.026 0.61<d≤0.66 291-320 2005-2205
0.026<d≤0.028 0.66<d≤0.71 289-318 1995-2190
0.028<d≤0.031 0.71<d≤0.79 285-315 1965-2170
0.031<d≤0.034 0.79<d≤0.86 282-310 1945-2135
0.034<d≤0.037 0.86<d≤0.94 280-308 1930-2125
0.037<d≤0.041 0.94<d≤1.04 275-304 1895-2095
0.041<d≤0.045 1.04<d≤1.14 272-300 1875-2070
0.045<d≤0.050 1.14<d≤1.27 267-295 1840-2035
0.050<d≤0.054 1.27<d≤1.37 265-293 1825-2020
0.054<d≤0.058 1.37<d≤1.47 261-289 1800-1990
0.058<d≤0.063 1.47<d≤1.60 258-285 1780-1965
0.063<d≤0.070 1.60<d≤1.78 252-281 1735-1935
0.070<d≤0.075 1.78<d≤1.90 250-278 1725-1915
0.075<d≤0.080 1.90<d≤2.03 246-275 1695-1895
0.080<d≤0.087 2.03<d≤2.21 242-271 1670-1870
0.087<d≤0.095 2.21<d≤2.41 238-268 1640-1850
0.095<d≤0.105 2.41<d≤2.67 232-262 1600-1805
0.105<d≤0.115 2.67<d≤2.92 227-257 1565-1770
0.115<d≤0.125 2.92<d≤3.17 222-253 1530-1745
0.125<d≤0.135 3.17<d≤3.43 217-248 1495-1710
0.135<d≤0.148 3.43<d≤3.76 210-241 1450-1660
0.148<d≤0.162 3.76<d≤4.11 205-235 1415-1620

Specs:

Wire Dia Length / Kg
0.3MM 1785M
0.5MM 620M
0.7MM 320M
0.8MM 250M
1.0MM 150M
1.2MM 110M
1.5MM 70M
2.0MM 38M
2.6MM 23M
3.0MM 18M
4.0MM 10M








Aisi 304 Stainless Steel Wire Coil 5mm Round 0
