Galvanized Window Stainless Steel Security Screen Mesh 0.5mm To 1.2mm

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Ventilative Insect Screen Product Name Galvanized Steel Window Screen
Material Galvanized Steel Wire Hole Shape Square Hole
Mesh Counts 10 Mesh × 10 Mesh, 11 Mesh × 11 Mesh, 12 Mesh × 12 Mesh, 14 Mesh × 14 Mesh And 16 Mesh × 16 Mesh, 18 Mesh × 18 Mesh. Wire Diameter 0.3 Mm - 1.2 Mm.
Color Black, White, Gray And Silver. Width 750 Mm, 800 Mm, 900 Mm, 1000 Mm, 1200 Mm, 1500 Mm.
Length 20 M, 30 M, 50 M Or At Your Requests. Application Suitable For Windows Screen And Doors Screen In Home, Hotels, Office Buildings And Schools.
High Light

galvanized stainless steel security screen mesh

,

0.5mm stainless steel security screen mesh

,

1.2mm stainless steel window screen

Leave a Message
Product Description

Galvanized Steel Window Screen 0.5mm To 1.2mm Wire High Tensile Strength



Introduction:



Galvanized steel mesh screen has 1250 Mpa - 1350 Mpa high tensile strength, so if you have a baby or a child, it can effectively prevent them from climbing or accidentally falling, this aids to ensure the safety of children and babies. Its material galvanized steel wire is wear resistance and high strength that can prevent damage from knives, scissors, hammers and ensures your safety in the house or office. Galvanized steel screen can effectively prevent rodents biting, mosquitoes or pets collision damage. Furthermore, galvanized steel window screen is suitable for suburbs, houses, schools and other living areas.



Weave Type: Plain Weave


Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum


Specifications:



Weave type: plain weave.
Material: galvanized steel wire.
Wire diameter: 0.8 mm. (0.5 mm - 1.2 mm is also available)
Mesh opening: 11 mesh × 11 mesh. (Besides 10 mesh × 10 mesh, 12 mesh × 12 mesh and 14 mesh × 14 mesh, 16 mesh × 16 mesh,18 mesh × 18 mesh.)
Dimensions:
Length: 10 m, 20 m, 30 m or as your requests.
Width: 750 mm, 900 mm, 1000 mm, 1200 mm, 1500 mm.





Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
8 0.80 2.375 55.95 2.56
10 0.90 1.640 41.68 4.05
10 0.50 1.740 46.92 3.20
12 0.70 1.416 44.79 2.94
14 0.60 1.214 44.79 2.52
14 0.50 1.314 52.47 1.75



Mesh/Inch Wire Diameter Aperture Open Area Weight
Inch Inch % Kgs/㎡
8 0.0314 0.0935 55.95 2.56
10 0.0354 0.0645 41.68 4.05
10 0.0314 0.0685 46.92 3.20
12 0.0275 0.0557 44.79 2.94
14 0.0236 0.0478 44.79 2.52
14 0.0196 0.0517 52.47 1.75


Features:



1. Protection against insects and rodents: The mesh openings of galvanized steel window screen is in accordance with standard mesh aperture size of ordinary screen, so its sealing effect is better than ordinary screen, and galvanized steel window screen can effectively prevent rats biting, mosquitoes or pets collision damage.

2. Anti-corrosion: Galvanized steel wire offers excellent anti-corrosion property that can make galvanized steel mesh screen have a long service time.

3. Beautiful appearance: Galvanized steel insect screen is suitable for family doors and windows, its nice shape, firm structure, smooth uniform mesh surface, consistent latitude and longitude meet the needs of most customers.

4. High tensile strength: Galvanized steel wire has 1250 Mpa - 1350 Mpa high tensile strength, so it can effectively resist babies or children climbing or accidentally falling, this aids to ensure the safety of children and babies. And it also prevents clothes, flower pots or other clutter on the balcony from falling onto the ground.

5. Invisible ventilation: Galvanized steel insect screen keeps natural flow of fresh air 24 hours a day and reduces unnecessary air conditioning running, it not only save energy but also keep your house bright.

6. Anti-dust: Galvanized steel window screen can resist flying dust and willow catkin, it can effectively isolate bacteria and dust while filter fresh air into your house.

7. Easy to care: Dust or oil on galvanized steel mesh screen is easy to clean, use a vacuum cleaner or a soft brush to wipe and it can be bright as new.

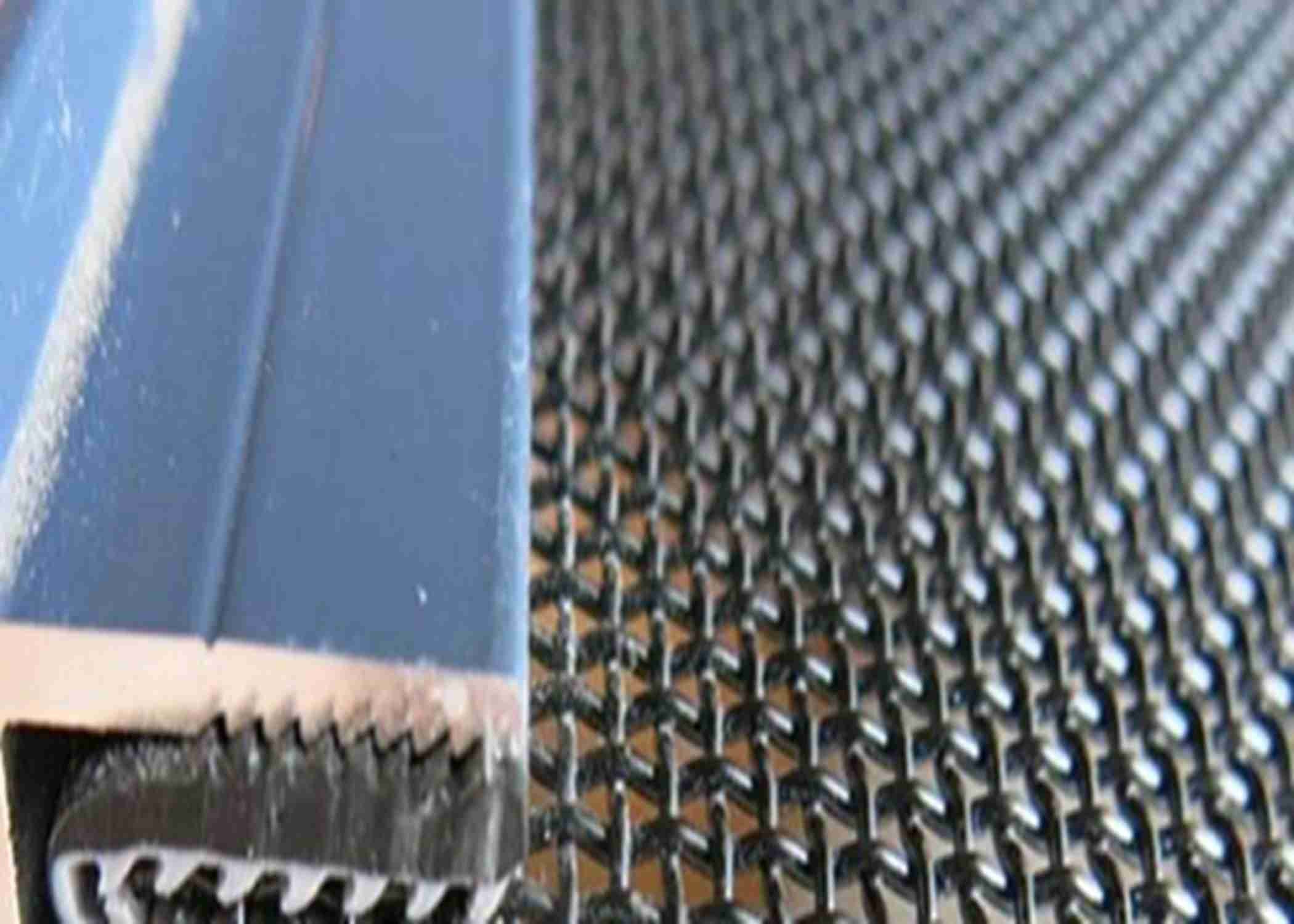

Galvanized Window Stainless Steel Security Screen Mesh 0.5mm To 1.2mm 1

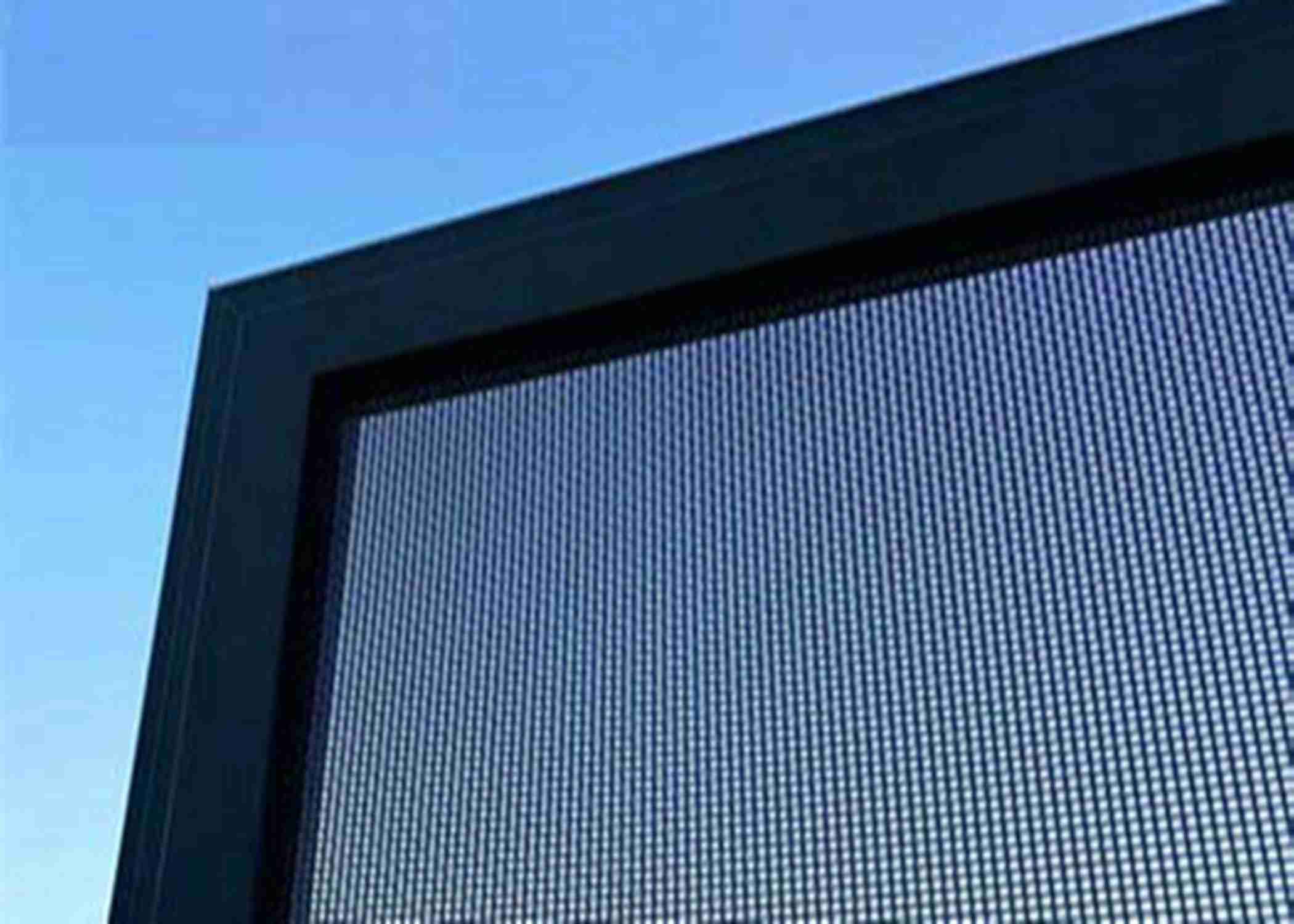

Galvanized Window Stainless Steel Security Screen Mesh 0.5mm To 1.2mm 2


Application:



Galvanized steel insect screen is suitable for windows screen and doors screen in home, hotels, office buildings and schools.
Mountain areas, field, suburbs - anti mosquito and rodent.
Beautiful resident buildings or business district needs unified management - beautiful appearance.
Wet or dry cities - rust resistance and sun proof.
Furthermore, galvanized steel insect screen is also suitable for door screens, sliding door screens, out or inside door screens in schools, nursing homes and other living areas.


Galvanized Window Stainless Steel Security Screen Mesh 0.5mm To 1.2mm 3

Security Window and Door Screen Mesh Product List:


Stainless Steel Security Door Screens
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh

Packing:



Galvanized Window Stainless Steel Security Screen Mesh 0.5mm To 1.2mm 4



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
