Square Hole 10 Mesh × 10 Mesh Aluminum Insect Screen Lightweight Durable High Strength

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Lightweight But Durable And High Strength That Offers A Longer Service Time Product Name Aluminum Insect Screen
Material Aluminum Wire Hole Shape Square Hole
Mesh Counts 10 Mesh × 10 Mesh, 11 Mesh × 11 Mesh, 12 Mesh × 12 Mesh, 14 Mesh × 14 Mesh And 16 Mesh × 16 Mesh, 18 Mesh × 18 Mesh. Wire Diameter 0.3 Mm - 1.2 Mm.
Color Black, White, Gray And Silver. Width 750 Mm, 800 Mm, 900 Mm, 1000 Mm, 1200 Mm, 1500 Mm.
Length 20 M, 30 M, 50 M Or At Your Requests. Application Suitable For Houses, Hotels, Suburbs, Schools And Office Buildings.
High Light

10 mesh × 10 mesh aluminum insect screen

,

square hole aluminum insect screen

,

lightweight aluminum insect screen

Leave a Message
Product Description

Cost-Effective Aluminum Insect Screen Lightweight But Durable And High Strength



Introduction:



Aluminum insect screen is a kind of high cost-effective window screen. Its material aluminum wire is lightweight but durable and high strength that offers a longer service time than ordinary nylon screen. And the structure of aluminum alloy mesh screen is in accordance with standard mesh aperture size of ordinary nylon screens, compared with ordinary nylon screens, its sealing effect, airtight, watertight, and sound insulation effect are better, and aluminum window screen can effectively get rid of mosquitoes, prevent rats biting. Furthermore, do not worry about the cleaning of aluminum alloy screen, dust or oil on the screen is easy to clean, use a vacuum cleaner or a soft brush to wipe and it can be bright as new at once. Aluminum insect screen is suitable for houses, hotels, suburbs, schools and office buildings.



Weave Type: Plain Weave


Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum


Specifications:



Weave type: plain weave.
Material: aluminum wire.
Surface treatment: powder coated or not.
Color: black, white, gray and silver. Other colors are also available at your requests.
Wire diameter: 0.3 mm - 1.2 mm.
Mesh opening: 10 mesh × 10 mesh, 11 mesh × 11 mesh, 12 mesh × 12 mesh, 14 mesh × 14 mesh and 16 mesh × 16 mesh, 18 mesh × 18 mesh. (Non-standard mesh openings are also available at customers' requests.)
Dimensions:
Width: 750 mm, 900 mm, 1000 mm, 1200 mm, 1500 mm.
Roll length: 20 m, 30 m, 50 m or at your requests.





Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
8 0.80 2.375 55.95 2.56
10 0.90 1.640 41.68 4.05
10 0.50 1.740 46.92 3.20
12 0.70 1.416 44.79 2.94
14 0.60 1.214 44.79 2.52
14 0.50 1.314 52.47 1.75



Mesh/Inch Wire Diameter Aperture Open Area Weight
Inch Inch % Kgs/㎡
8 0.0314 0.0935 55.95 2.56
10 0.0354 0.0645 41.68 4.05
10 0.0314 0.0685 46.92 3.20
12 0.0275 0.0557 44.79 2.94
14 0.0236 0.0478 44.79 2.52
14 0.0196 0.0517 52.47 1.75


Features:



1. High strength: Its material aluminum wire is durable and high strength that offer a longer service time than ordinary nylon insect screen.
2. Beautiful appearance: Aluminum insect screen fits for family doors and windows, meets the needs customers. Its nice shape, firm structure, smooth uniform mesh surface, consistent latitude and longitude attract customers.
3. Anti-corrosion: Aluminum wire offers good anti-corrosion property, and its powder coated layer further strengthens this property.
4. Good sealing performance: The structure of aluminum window screen is in accordance with mesh aperture size of ordinary nylon screens, its sealing effect, airtight, watertight, and sound insulation effect are better than ordinary nylon screens, and aluminum screen can effectively prevent mosquitoes and rats biting.
5. Energy saving: Aluminum mesh screen completely uses environmentally friendly materials, pollution-free and reduces waste of resources.
6. Easy to maintenance: Do not worry about the cleaning of aluminum mesh screen, dust or oil on the screen is easy to clean, use a vacuum cleaner, absorbent sponge or a soft brush to wipe screens and it can be bright as new.
7. Anti-dust: Aluminum alloy mesh screen can effectively isolates flying dust and willow catkin while filter fresh air into your house.
8. Ventilation: Aluminum alloy insect screen keeps houses bright, natural flow of fresh air 24 hours a day and reduces unnecessary air conditioning running, it not only save energy but also reduce air conditioning brings sub-health which give you and your family a healthy body and mind.
9. Lightweight material: Aluminum alloy mesh screen is woven by aluminum wire, it is lightweight and convenient to transport.
10. Privacy guarantee: This feature is only for black aluminum alloy window screen, black aluminum alloy window screen can effectively block the sight from outside, but you can see outdoor views clearly. Super privacy effect makes you feel ease at home.

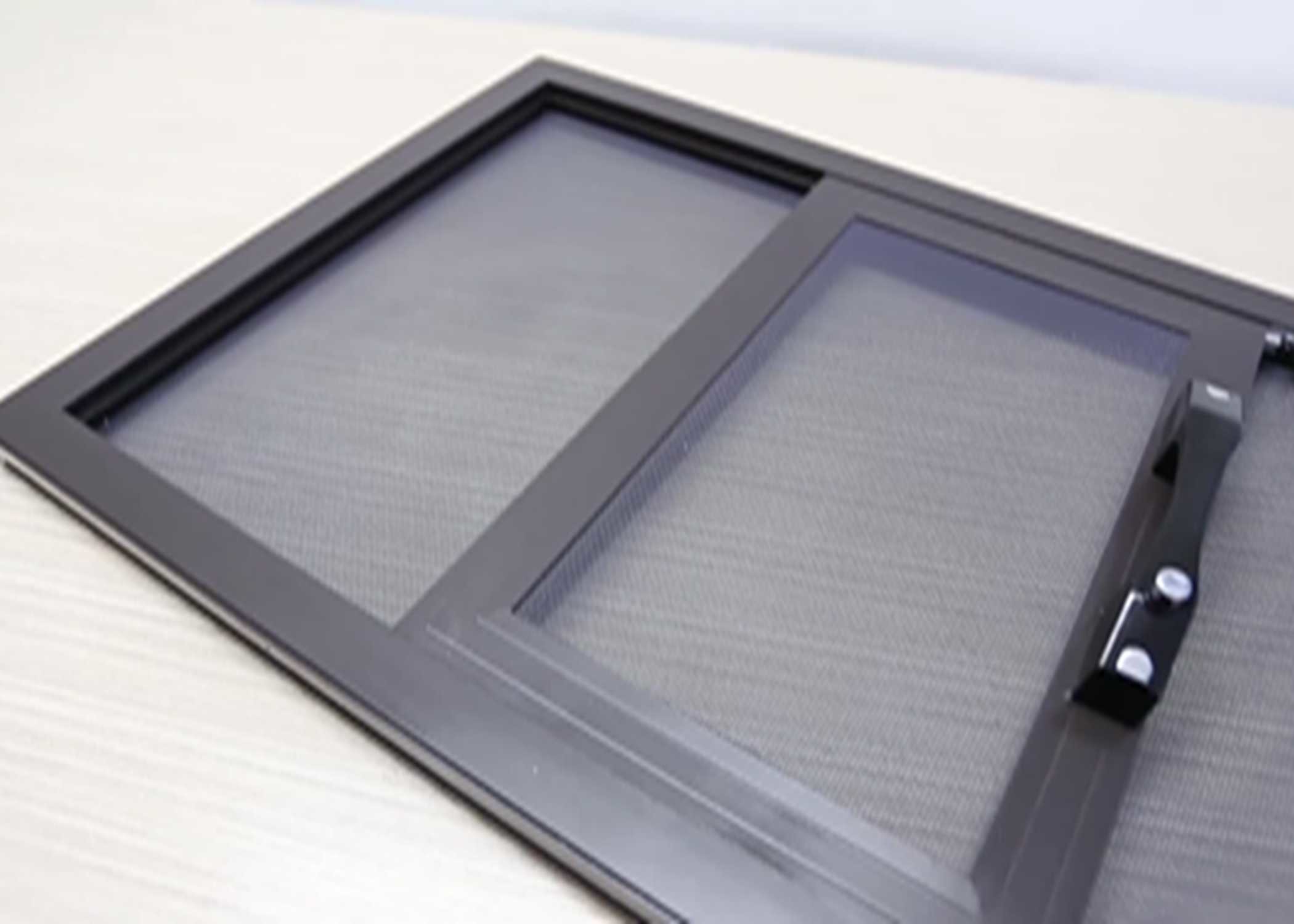

Square Hole 10 Mesh × 10 Mesh Aluminum Insect Screen Lightweight Durable High Strength 1

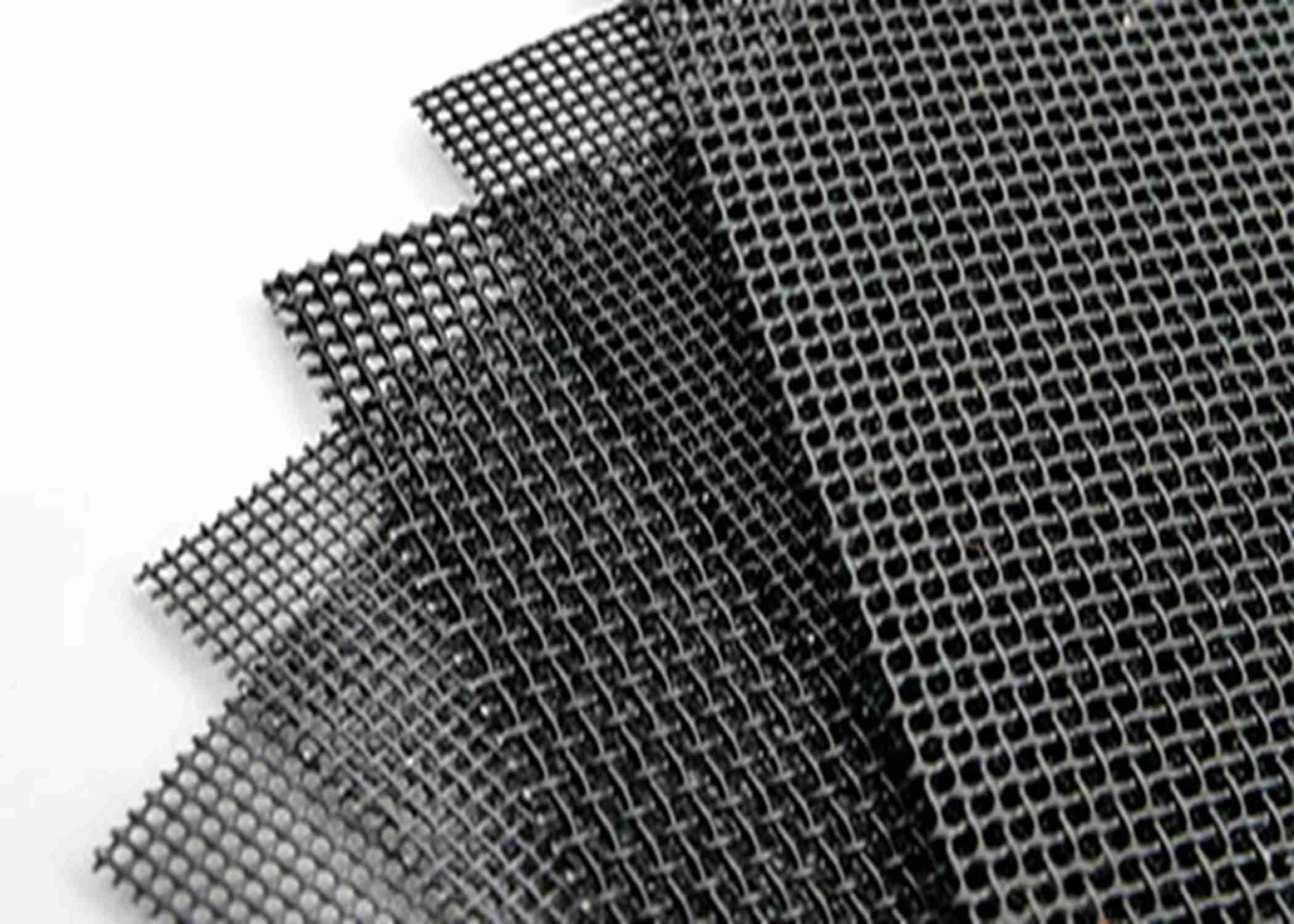

Square Hole 10 Mesh × 10 Mesh Aluminum Insect Screen Lightweight Durable High Strength 2


Application:



Mountain areas, field, suburbs - anti mosquito and rodent.
Beautiful resident buildings or business district needs unified management - beautiful appearance.
Furthermore, aluminum alloy window screen is also suitable for office buildings, houses, villas, resorts, hospitals, schools, nursing homes and other living areas.


Square Hole 10 Mesh × 10 Mesh Aluminum Insect Screen Lightweight Durable High Strength 3

Security Window and Door Screen Mesh Product List:


Stainless Steel Security Door Screens
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh

Packing:



Square Hole 10 Mesh × 10 Mesh Aluminum Insect Screen Lightweight Durable High Strength 4



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
