Ss316l Stainless Steel Security Screen Mesh Antirust Heat Resistance

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Anti-rust And Heat Resistance Product Name 316L Stainless Steel Security Screen
Material Stainless Steel 316L Hole Shape Square Hole
Mesh Counts 10 Mesh × 10 Mesh, 11 Mesh × 11 Mesh, 12 Mesh × 12 Mesh And 14 Mesh × 14 Mesh Wire Diameter 0.6 Mm - 1.2 Mm
Color Black, Gray And White. Other Colors Are Also Available At Your Requests. Width 750 Mm, 900 Mm, 1000 Mm, 1200 Mm, 1500 Mm.
Length 1500 Mm, 2000 Mm, 2400 Mm, 3000 Mm. Application Used For Houses, Hotels, Office Buildings And Schools. It Is Also Suitable For Chemical Industrial District, Marine Environment, Beachfront Cities And Swimming Pool
High Light

ss316l stainless steel security screen mesh

,

antirust stainless steel security screen mesh

,

heat resistance stainless steel fly mesh

Leave a Message
Product Description

SS316L Security Screen With Anti-rust and Heat Resistance Features



Introduction:



316L stainless steel security screen is a kind of new high-end home security screen. 316L stainless steel security screen and 316 stainless steel security screen are very similar, the biggest difference between them is the carbon content. The carbon content of 316 stainless steel wire is 0.08 while 316L stainless steel wire is only 0.03, so this low carbon content feature makes 316L stainless steel security screen offer the best corrosion resistance property, especially its pitting corrosion resistance is perfect. At the same time it offers excellent high temperature strength, fire prevention and heat resistance, thus it can be used for chemical industrial district and marine environment. And 316L stainless steel security screen is also suitable for houses, banks, suburbs, swimming pools, beachfront cities and office buildings.



Weave Type: Plain Weave


Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum



Specifications:



Weave type: plain weave.
Material: 316L stainless steel wire.
Surface treatment: powder coated.
Color: black, gray and white. Other colors are also available at your requests.
Wire diameter: 0.6 mm - 1.2 mm.
Mesh opening: 10 mesh × 10 mesh, 11 mesh × 11 mesh, 12 mesh × 12 mesh and 14 mesh × 14 mesh. (Non-standard mesh openings are also available at customers' requests.)
Dimensions:
Length: 1500 mm, 2000 mm, 2400 mm, 3000 mm.
Width: 750 mm, 900 mm, 1000 mm, 1200 mm, 1500 mm.
Note: Special dimensions are also available according to your requirements.





Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
8 0.80 2.375 55.95 2.56
10 0.90 1.640 41.68 4.05
10 0.50 1.740 46.92 3.20
12 0.70 1.416 44.79 2.94
14 0.60 1.214 44.79 2.52
14 0.50 1.314 52.47 1.75



Mesh/Inch Wire Diameter Aperture Open Area Weight
Inch Inch % Kgs/㎡
8 0.0314 0.0935 55.95 2.56
10 0.0354 0.0645 41.68 4.05
10 0.0314 0.0685 46.92 3.20
12 0.0275 0.0557 44.79 2.94
14 0.0236 0.0478 44.79 2.52
14 0.0196 0.0517 52.47 1.75


Features:

1. Excellent high temperature strength: 316L stainless steel wire offers excellent high temperature strength, so 316L stainless steel security screen is fire prevention and heat resistance, it can be used for chemical industrial district and marine environment.

2. Beautiful appearance: 316L stainless steel security screen is a kind of high-end home security screen and fits for high-end doors and windows. Its nice shape, firm structure, smooth uniform mesh surface, consistent latitude and longitude attract customers to choose it for home and office security protection.

3. Best anti-corrosion: The maximum carbon content of 316L stainless steel wire is 0.03, so 316L stainless steel security screen with power coated layer offers the best corrosion resistance property, especially its pitting corrosion resistance is perfect.

4. Cost-effective: Its 316L stainless steel material offers good rust resistance, heat resistance, high temperature strength, good toughness, anti-fouling, anti-oxidation, wear resistance and long service life etc, so the cost-effective of 316L stainless steel security screen is much higher than ordinary nylon screen.

5. Anti mosquito and rodents: The structure of 316L stainless steel security screen is in accordance with mesh aperture size of ordinary nylon screens, its sealing effect is better than ordinary nylon screens, so 316L stainless steel security screen can effectively prevent rats biting, snakes, flies and mosquitoes.

6. Anti fall from high altitude: 316L stainless steel security screen can withstand high impact strength, so it can prevent babies or children from climbing or accidentally falling, it ensures the safety of children and babies. And it can also prevent flower pots or other clutter on the balcony from falling onto the ground.

7. Invisible ventilation: 316L stainless steel security screen keeps houses bright, natural flow of fresh air 24 hours a day and reduces unnecessary air conditioning running, it not only save energy but also give you and your family a healthy body and mind.

8. Safety protection: Its material 316L stainless steel wire offers good toughness that can resist damage from knives, scissors, hammers and saws. It not only ensure your safety in your house or office but also make you peace of mind at home.

9. Privacy guarantee: This feature is only for black 316L stainless steel security screen, black 316L stainless steel security screen can effectively block the sight from outside, but you can see outdoor views clearly. Super privacy effect makes you feel at ease.

10. Resist ultraviolet light: 316L stainless steel security screen can resist up to 30% UV rays, so you can resist UV damage to the skin while enjoy the warm sunlight. At the same time it can prevent furniture in the house from fading and accelerated aging.

11. Easy to care: Dust or oil on the 316L stainless steel security screen is easy to clean, use a vacuum cleaner, an absorbent sponge or a soft brush to wipe and it can be bright as new at once.

12. Energy saving: 316L stainless steel security screen completely uses environmentally friendly materials, pollution-free, low-carbon, 3-5 times longer than ordinary screens service life and reduces waste of resources.

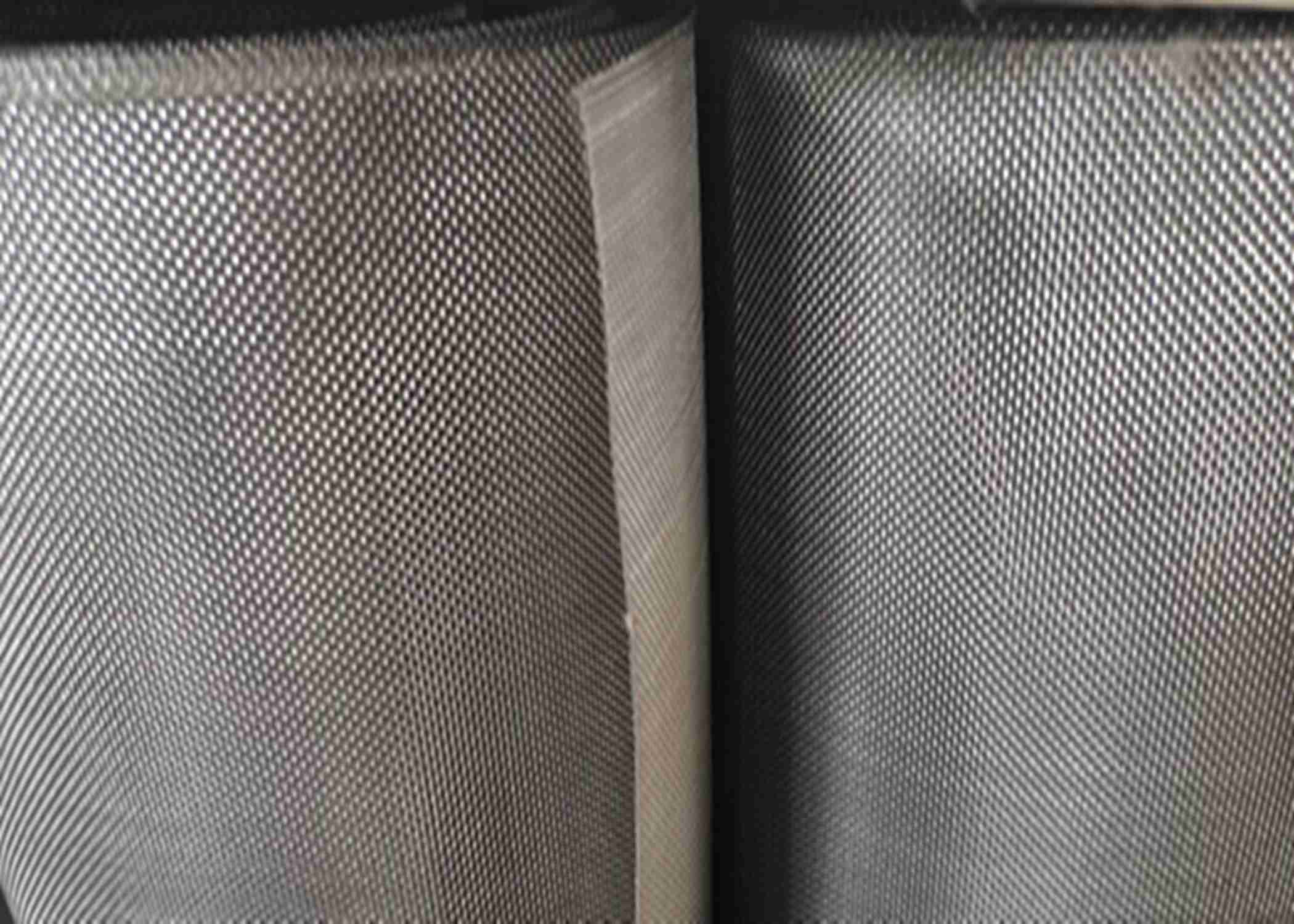

Ss316l Stainless Steel Security Screen Mesh Antirust Heat Resistance 1

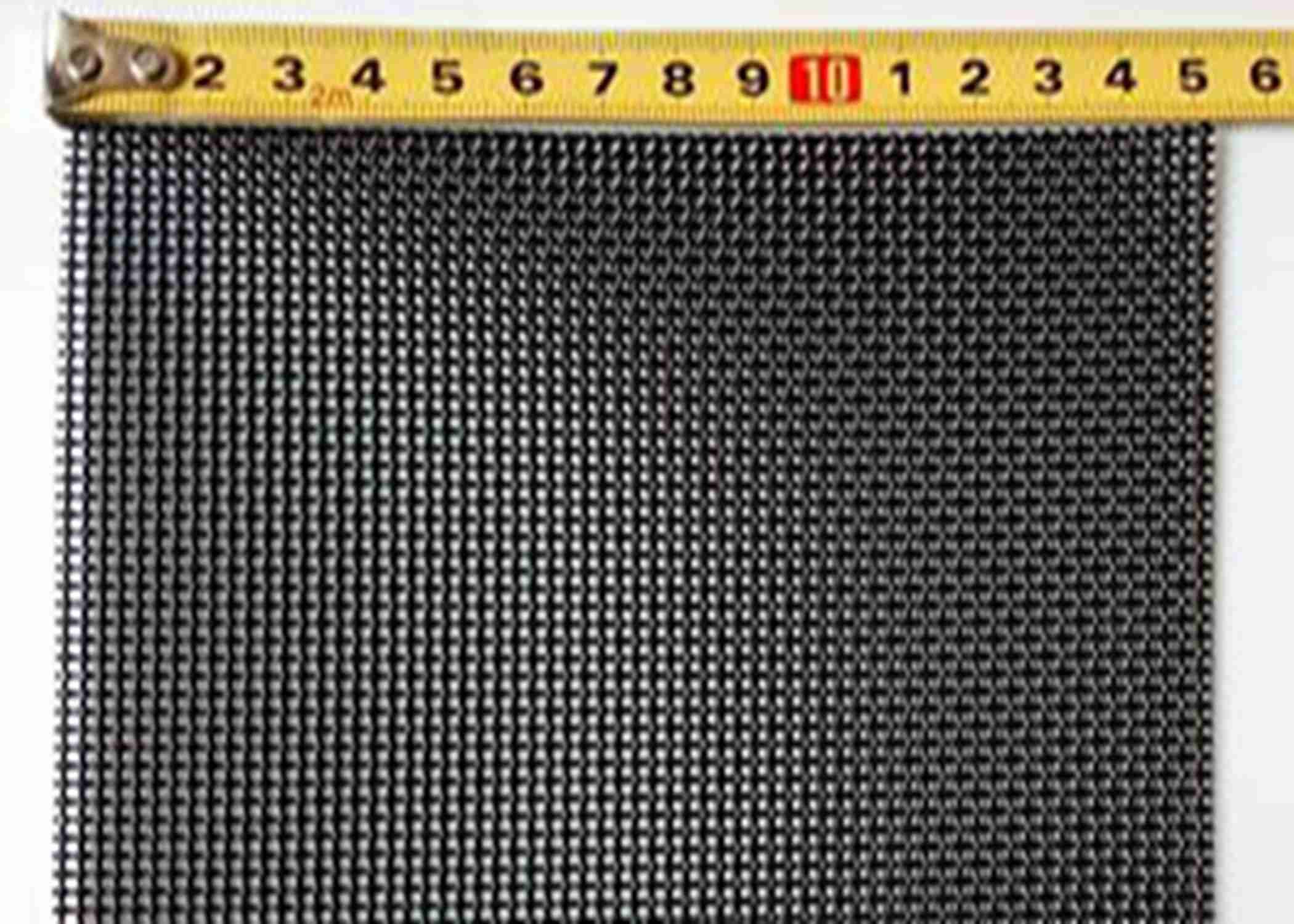

Ss316l Stainless Steel Security Screen Mesh Antirust Heat Resistance 2



Application: 316L stainless steel security screen is used for houses, hotels, office buildings and schools. It is also suitable for chemical industrial district, marine environment, beachfront cities and swimming pool.

Chemical industry atmosphere, marine environment - high temperature resistance.
Industrial district, beachfront cities, swimming pool - moisture resistant.
Wet or dry cities - rust resistance and sun proof.
Banks, organs and units or other financial institutions - bulletproof function.
Office buildings, villas, high-end residential buildings - anti-theft.
Mountain areas, field, suburbs - anti mosquito and rodent.
Beautiful resident buildings, business district needs unified management - beautiful appearance.
Furthermore, 316L stainless steel security screen is also suitable for airports, resorts, hospitals, schools, nursing homes and other living areas.


Ss316l Stainless Steel Security Screen Mesh Antirust Heat Resistance 3
