Plain Woven 316 Stainless Steel Security Mesh Security Screen With Anti Corrosion

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Anti-corrosion Product Name Stainless Steel 316 Security Screen.
Material Stainless Steel 316 Hole Shape Square Hole
Mesh Counts 10 Mesh × 10 Mesh, 11 Mesh × 11 Mesh, 12 Mesh × 12 Mesh And 14 Mesh × 14 Mesh Wire Diameter 0.6 Mm - 1.2 Mm
Surface Treatment Powder Coated, Or Epoxy Coated. Width 750 Mm, 800 Mm, 900 Mm, 1000 Mm, 1200 Mm, 1500 Mm.
Length 1500 Mm, 2000 Mm, 2400 Mm, 3000 Mm. Application Screen For Window And Doors
High Light

plain 316 stainless steel security mesh

,

anticorrosion 316 stainless steel security mesh

,

anti corrosion stainless security mesh

Leave a Message
Product Description

Stainless Steel 316 Plain Woven Security Screen With Anti-Corrosion



Introduction:



stainless steel 316 security screen is a kind of plain woven security screen with powder coated layer. Its material 316 stainless steel wire has more than 900 MPa high tensile strength that can effectively prevent babies or children from climbing or accidentally falling. Besides the higher nickel content, 316 stainless steel wire also contains molybdenum, so compared with 304 stainless steel wire, its anti-corrosion, fire prevention and high temperature resistance properties are better. And 316 stainless steel security screen is also called 316 marine grade stainless steel mesh, it meets Australian standards and through neutral salt spray test, so it is suitable for beachfront cities and swimming pools. 316 stainless steel security screen is used for houses, banks, office buildings, chemical industry district and sea-view villas.



Weave Type: Plain Weave


Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum



Specifications:



Product name: 316 stainless steel security screen.
Weave type: plain weave.
Material: 316 stainless steel wire.
Surface treatment: powder coated, or epoxy coated.
Color: black, white, gray and natural color. Other colors like yellow and silver are also available at your requests.
Wire diameter: 0.8 mm. (0.6 mm - 1.2 mm is also available at your requests.)
Mesh opening : 11 mesh × 11 mesh. (Besides 10 mesh × 10 mesh, 12 mesh × 12 mesh and 14 mesh × 14 mesh, non-standard mesh openings are also available at customers' requests.)
Dimensions:
Length: 1500 mm, 2000 mm, 2400 mm, 3000 mm.
Width: 750 mm, 800 mm, 900 mm, 1000 mm, 1200 mm, 1500 mm.
Note: Special dimensions are also available according to your requirements.





Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
8 0.80 2.375 55.95 2.56
10 0.90 1.640 41.68 4.05
10 0.50 1.740 46.92 3.20
12 0.70 1.416 44.79 2.94
14 0.60 1.214 44.79 2.52
14 0.50 1.314 52.47 1.75



Mesh/Inch Wire Diameter Aperture Open Area Weight
Inch Inch % Kgs/㎡
8 0.0314 0.0935 55.95 2.56
10 0.0354 0.0645 41.68 4.05
10 0.0314 0.0685 46.92 3.20
12 0.0275 0.0557 44.79 2.94
14 0.0236 0.0478 44.79 2.52
14 0.0196 0.0517 52.47 1.75


Features:

1. Excellent anti-corrosion: 316 stainless steel security screen with powder coated layer offers better corrosion resistance than 304 stainless steel security screen.

2. High tensile strength: 316 stainless steel wire has more than 900 MPa high tensile strength, so it can prevent babies or children from climbing or accidentally falling, this aids to ensure the safety of children and babies. And it can effectively prevent clothes, flower pots or other clutter on the balcony from falling onto the ground.

3. Good moisture resistant: 316 stainless steel security screen is also called 316 marine grade stainless steel mesh, it meets Australian standards and through neutral salt spray test, so it is suitable for swimming pool, industrial district and beachfront cities.

4. Safety protection: Its material 316 stainless steel wire offers superior strength that can prevent damage from knives, scissors, hammers and saws. This aids to ensure your safety in your house or office and give you peace of mind.

5. Protection against insects and rodents: 316 stainless steel security screen gets rid of mosquitoes and its wear resistance property can effectively prevent rats biting or pets collision damage.

6 Privacy guarantee: This feature is only for black 316 stainless steel security screen, you can see outdoor views clearly but invisible for people from outside. Super privacy effect makes you feel at ease in your house or office buildings.

7. Beautiful appearance: 316 stainless steel security screen fits for new and high-end doors and windows in different applications, it meets the needs of high-end customers. Its nice shape, firm structure, smooth uniform mesh surface, consistent latitude and longitude make 316 stainless steel security screen become the best choice for high-end home and office security protection.

8. Invisible ventilation: 316 stainless steel security screen offers good lighting and ventilation, it can keep natural flow of fresh air 24 hours a day and reduce the sub-health that is caused by air conditioning, this ensures you and your family have a healthy body and mind.

9. Energy saving: 316 stainless steel security screen completely uses environmentally friendly materials and reduces waste of resources, so 316 stainless steel security screen offers 3-5 times longer service life than ordinary screens.

10. Ultraviolet light prevention: 316 stainless steel security screen effectively resists up to 30% UV rays, so you can avoid UV damage to the skin while enjoy the warm sunlight. At the same time it can prevent furniture in the house from fading or accelerated aging.

11. Easy to clean: Do not worry about the cleaning of 316 stainless steel security screen, dust or oil on the screen is easy to clean, use a vacuum cleaner or a soft brush to wipe and it can be bright as new at once.

12. Bulletproof function: Banks, organs and units, enterprises and public institutions or other institutions that need strict security protection use 316 stainless steel security screen to resist bullets.

13. Fire prevention: Besides the higher nickel content, 316 stainless steel wire also contains molybdenum, so compared with 304 stainless steel wire, its fire prevention and high temperature resistance properties are better. In fact, 316 stainless steel security screen is more suitable for marine atmosphere areas and chemical industry environment.

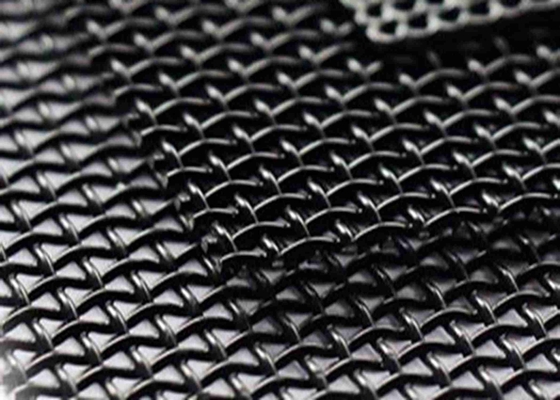

Plain Woven 316 Stainless Steel Security Mesh Security Screen With Anti Corrosion 1

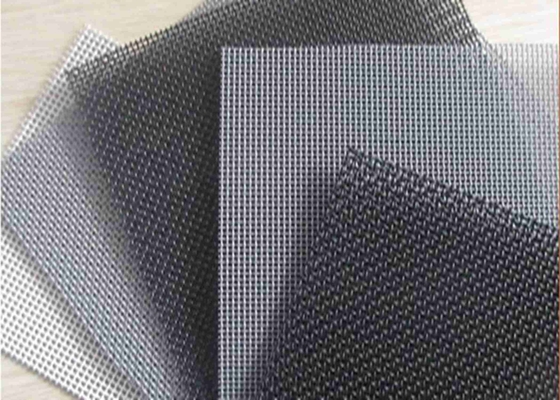

Plain Woven 316 Stainless Steel Security Mesh Security Screen With Anti Corrosion 2



Application: 316 stainless steel security screen is widely used in different fields for many applications, it is suitable for houses, chemical industry atmosphere, office buildings, suburbs, banks and beachfront cities.

Banks, organs and units or other financial institutions - bulletproof function.
Office buildings, villas, high-end residential buildings - anti-theft.
Mountain areas, field, suburbs - anti mosquito and rodent.
Beautiful resident buildings, business district needs unified management - beautiful appearance.
Wet or dry cities - rust resistance and sun proof.
Industrial district, beachfront cities, swimming pool - moisture resistant.
Chemical industry atmosphere, marine environment - high temperature resistance.
Furthermore, 316 stainless steel security screen is also suitable for airports, resorts, hospitals, schools, nursing homes and other living areas.


Plain Woven 316 Stainless Steel Security Mesh Security Screen With Anti Corrosion 3

Security Window and Door Screen Mesh Product List:


Stainless Steel Security Door Screens
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh

Packing:



Plain Woven 316 Stainless Steel Security Mesh Security Screen With Anti Corrosion 4



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
