1/2″ To 6″ Openings Ss Welded Wire Mesh 0.063" To 3/8″ Plain

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Firm Structure | Material | Stainless Steel, Plain Steel |
---|---|---|---|
Standard | ASTM | Type | Welded |
Hole Shape | Square Hole Or Slot Hole | Clear Opening | 1/4" To 6" |
Wire Diameter | 0.063" To 3/8″ | Panel Size | Custom Sizes & 4′ X 8′ Panels Available |
Roll Size | 36" 48" 60" Width 100' Length | Application | Guarding, Railings, Architectural, Ceiling Tiles, Partition Systems |
Highlight | 1/2″ openings ss welded wire mesh,3/8″ ss welded wire mesh,plain stainless steel welded wire mesh |

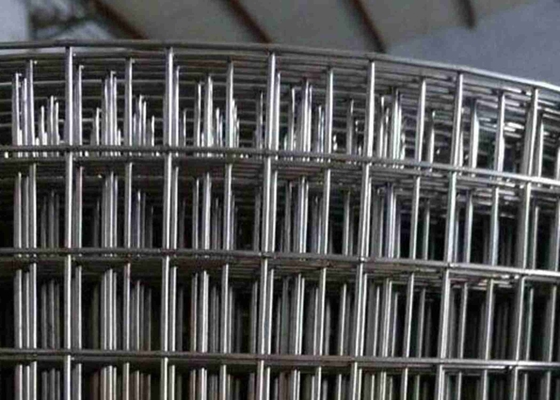

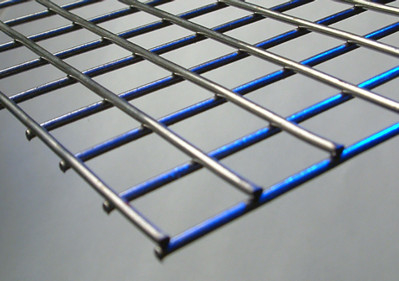

Welded Wire Mesh 1/2″ To 6″ Openings 0.063" To 3/8″ Wire Stainless Steel Plain Steel
Welded Wire Mesh Introduction:
Many years ago most of today’ s welded mesh applications would have been using woven mesh. By welding the wires together (instead of weaving them) the material can hold it’s shape without supports, allowing shearing, rolling, and framing to be done with relative ease!
Individual wires welded together become stronger and more stable. Welded mesh is more suitable than woven mesh for applications where larger areas are covered. The product is has a smooth, uniformed appearance and even grid pattern.
Southern Ontario is one of the largest markets in North America for Canada welded wire mesh. Being the first company to stock a full line of products Gerard Daniel Worldwide had a major role in developing the market.
Not just 4×8 sheets, we also custom weld panels and blanks up to 5×10. This has added a new dimension to the product, using wire as heavy as 3/8″diameter.
We have always had an interest in keeping the price of our products competitive, while offering the highest quality!
Specifications:
Opening Size | Wire Diameter | ||
Inch | mm | SWG | mm |
1/4" × 1/4" | 6.4 mm × 6.4 mm | 22# - 24# | 0.6 mm - 0.7 mm |
3/8" × 3/8" | 10.6 mm × 10.6 mm | 19# - 22# | 0.7 mm - 1.0 mm |
1/2" × 1/2" | 12.7 mm × 12.7 mm | 16# - 23# | 0.6 mm - 1.6 mm |
5/8" × 5/8" | 16 mm × 16 mm | 18# - 21# | 0.8 mm - 1.2 mm |
3/4" × 3/4" | 19.1 mm × 19.1 mm | 16# - 21# | 0.8 mm - 1.6 mm |
1" × 1/2" | 25.4 mm × 12.7 mm | 16# - 20# | 0.9 mm - 1.6 mm |
1" × 1" | 25.4 mm × 25.4 mm | 14# - 21# | 0.8 mm - 1.2 mm |
1 1/2" × 1 1/2" | 38 mm × 38 mm | 14# - 19# | 1.0 mm - 2.0 mm |
1" × 2" | 25.4 mm × 50.8 mm | 14# - 16# | 1.6 mm - 2.0 mm |
2" × 2" | 50.8 mm × 50.8 mm | 12# - 16# | 1.6 mm - 2.6 mm |
2" × 3" | 50 mm × 75 mm | 13# - 16# | 1.6 mm - 2.3 mm |
3" × 3" | 75 mm × 75 mm | 12# - 16# | 1.6 mm - 2.6 mm |
2" × 4" | 50 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
4" × 4" | 100 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
8" × 8" | 200 mm × 200 mm | 13# - 14# | 2.0 mm - 2.3 mm |
Other sizes as your special request.
Material: Stainless Steel 304 or 316.
Features:
Strong structure;
Neat and hygiene;
Easy to clean;
Non-toxic;
Excellent corrosion resistance, acid and alkali resistance, high temperature resistance, harsh chemicals resistanc.
Applicatioins:
Guarding
Railings
Architectural
Ceiling Tiles
Partition Systems
Custom sizes & 4′ x 8′ panels available
Packing:
in waterproof paper and film, then in pallets. Custom packing available at request.
