Rectangle Hole Ss Welded Mesh 1" X 2" Opening 0.08" Diameter
Place of Origin | Anping of China |
---|---|
Brand Name | QIANPU |
Certification | ISO |
Minimum Order Quantity | 50 Rolls |
Price | Negotiable |
Packaging Details | Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden cases or pallets. |
Delivery Time | 20 days |
Payment Terms | T/T, Western Union, L/C |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Firm Structure, Rust Resistant, Corrosion Resistant | Material | Stainless Steel 304 |
---|---|---|---|
Color | Bright Silver | Surface Treatment | Polished |
Technique Type | Welded | Rectangle Hole | 1" X 2" |
Wire Diameter | 0.08" | Width | 36", 48", Etc |
Length | 100' Or 30.5m | Application | Industrial Separation |
Highlight | rectangle hole ss welded mesh,0.08" diameter ss welded mesh,304 stainless steel welded wire mesh |
Stainless Steel 304 Rectangle Hole 1" X 2" Opening 0.08" Diameter Wire Welded Wire Mesh
Brief Introduction
Welded wire mesh specifications are commonly used in a wide array of industrial and non-industrial applications, including animal caging, critter and varmint control, agricultural use, air vents, basket fabrication, food applications, aviary and bird screen, industrial separation fan and machine guards, security retention, basket fabrication, industrial separation and soffit screens.
Our stainless steel mesh is grade 304, and sourced from high quality and reliable manufacturers. Stainless steel is highly resistant to corrosion, and therefore is longer lasting than mild steel or galvanized finish mesh. Stainless steel is commonly used in the food industry, but has a wide variety of applications where a higher level of corrosion resistance is required.

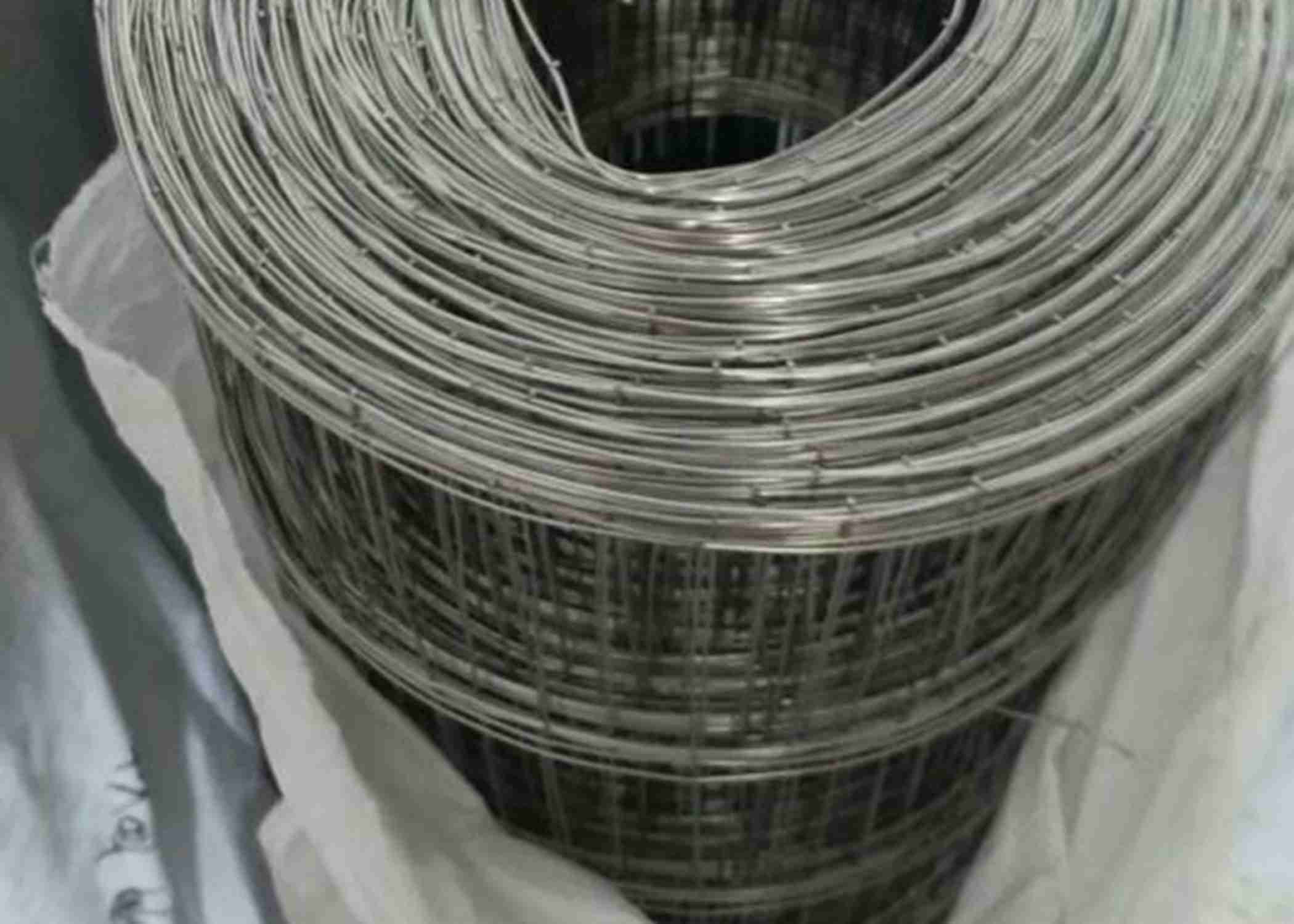

The longitudinal and transverse wires are then resistance welded together to create a functional mesh product. This is supplied in rolls or panels. We offer stainless steel welded wire mesh with square holes and rectangle holes. Square hole mesh sizes: 1/4", 1/2", 3/4", 3/8", 5/8", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", 3", 3-1/2", 4", 5", 6", 8" etc; Rectangle hole mesh sizes: 1"×1/2", 1-1/2"×1/2", 2"×1/2", 4"×2", etc. Welded wire mesh with stainless steel grades are our featured products, the most common grade is AISI304, DIN1.4301, SUS304.
4" x 2" Welded Mesh Specifications
Specifications | US | Metric |
Mesh Size | 1" x 2” | 25.4mm x 50.8mm |
Wire Diameter | 0.08” | 2mm |
Width | 48” | 1.22m |
Length | 100ft | 30.5m |
Packing: Water-proof paper first then plastic film, in wooden case or pallets. | ||
Nearest Port: Tianjin(By Sea); Beijing(By Air). |
Main Specifications:
Mesh Size | Wire Diameter | Width | ||
In Inch | In MM | BWG | mm | m |
1/4" x 1/4" | 6.4x6.4 | 25 | 0.5 | 0.914-1.0m |
3/8" x 3/8" | 10.6x10.6 | 22 | 0.71 | 0.914-1.0m |
1/2" x 1/2" | 12.7x12.7 | 21 | 0.81 | 0.914-1.5m |
5/8" x 5/8" | 16x16 | 20 | 0.9 | 0.914-1.5m |
3/4" x3/4" | 19.1x19.1 | 20 | 0.9 | 0.914-1.5m |
1" x 1" | 25.4x25.4 | 19 | 1.0 | 0.914-1.5m |
1" x 1/2" | 25.4x12.7 | 20 | 0.9 | 0.914-1.5m |
1.5" x 1.5" | 38x38 | 18 | 1.22 | 0.914-1.5m |
1" x 2" | 25.4x50.8 | 16 | 1.65 | 0.914-1.80m |
2" x 2" | 50.8x50.8 | 14 | 2.0 | 0.914-1.80m |
3" x 3" | 75x75 | 14 | 2.0 | 0.914-1.80m |
4" x4" | 100x100 | 14 | 2.0 | 0.914-1.80m |
Material: Stainless Steel
Features:
Type 304 stainless steel wire mesh is the most extensively used material in the industrial wire cloth world. Type 304 (T-304, SS304) is the basic stainless steel alloy and is often referred to as 18-8 stainless steel due to its 18% chromium and 8% nickel composition. Where no specific stainless steel type is specified, it is assumed Type 304 stainless steel wire cloth is acceptable. Some characteristics of 304 stainless steel wire cloth which dictate its wide use are:
Austenitic stainless steel.
Non-magnetic when annealed.
Slightly magnetic when cold worked.
Withstands outdoor exposure without rusting.
Excellent corrosion resistance in broad range of industrial and chemical settings.
Not as corrosion resistant as T-316 stainless steel wire mesh, but less costly.
Resists oxidation at 1400°F temperatures.
Heating permitted between 900°F – 1600°F temperatures.
Can be cut, formed, and welded.
Applications:
Infill panel & railing systems
Industrial fan & machine guards
Security enclosures
Animal retention (cages)
Small critter control
Decorative signage
Room dividers
Wall cladding
Ceiling panels
Air vents & soffit screens
Basket fabrication
Food applications
Racking & storage
Aviary & bird screen
Industrial separation
