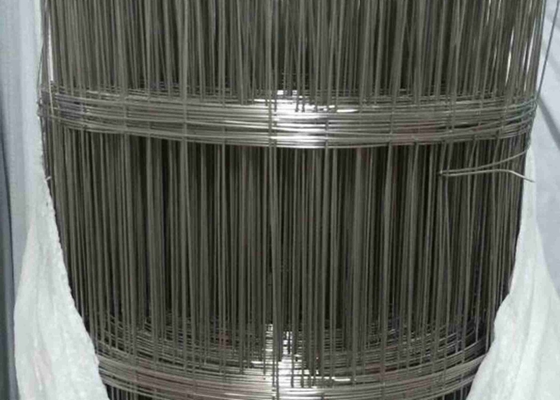

ISO Rectangle Hole Ss Welded Wire Mesh 4" X 2" Opening 0.105" Diameter

  • ISO Rectangle Hole Ss Welded Wire Mesh 4" X 2" Opening 0.105" Diameter
  • ISO Rectangle Hole Ss Welded Wire Mesh 4" X 2" Opening 0.105" Diameter
  • ISO Rectangle Hole Ss Welded Wire Mesh 4" X 2" Opening 0.105" Diameter
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden cases or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Firm Structure, Rust Resistant, Corrosion Resistant Material Stainless Steel 304
Color Bright Silver Surface Treatment Polished
Technique Type Welded Rectangle Hole 4" X 2"
Wire Diameter 0.105|" Width 36", 48", Etc
Length 100' Or 30.5m Application Security Or Isolation Fencing For Pedestrians’ Pavement, Transport Center And Other Public Places.
Highlight

0.105" diameter ss welded wire mesh

,

4" x 2" opening ss welded wire mesh

,

rectangle hole stainless steel welded mesh
Leave a Message
Product Description

Stainless Steel 304 Rectangle Hole 4" X 2" Opening 0.105" Diameter Wire Welded Wire Mesh



Brief Introduction



Welded wire mesh specifications are commonly used in a wide array of industrial and non-industrial applications, including animal caging, critter and varmint control, agricultural use, air vents, basket fabrication, food applications, aviary and bird screen, industrial separation fan and machine guards, security retention, basket fabrication, industrial separation and soffit screens.



Residential do-it-yourselfers gravitate towards these specific items because they offer tremendous value and versatility for projects around the home. In most normal environments, stainless steel will have a longer life cycle than a comparable galvanized mesh.



The items listed on this website represent many of the most requested specifications of stainless steel welded wire mesh. These items are available from stock or can be custom manufactured. Should you not see your preferred specification, please contact us to discuss your requirements.



The longitudinal and transverse wires are then resistance welded together to create a functional mesh product. This is supplied in rolls or panels. We offer stainless steel welded wire mesh with square holes and rectangle holes. Square hole mesh sizes: 1/4", 1/2", 3/4", 3/8", 5/8", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", 3", 3-1/2", 4", 5", 6", 8" etc; Rectangle hole mesh sizes: 1"×1/2", 1-1/2"×1/2", 2"×1/2", 4"×2", etc. Welded wire mesh with stainless steel grades are our featured products, the most common grade is AISI304, DIN1.4301, SUS304.



4" x 2" Welded Mesh Specifications

Specifications US Metric
Mesh Size 4" x 2” 101.6mmx50.8mm
Wire Diameter 0.105” 2.667mm
Width 48” 1.22m
Length 100ft 30.5m
Packing: Water-proof paper first then plastic film, in wooden case or pallets.
Nearest Port: Tianjin(By Sea); Beijing(By Air).



ISO Rectangle Hole Ss Welded Wire Mesh 4" X 2" Opening 0.105" Diameter 0


Main Specifications:


Mesh Size Wire Diameter Width
In Inch In MM BWG mm m
1/4" x 1/4" 6.4x6.4 25 0.5 0.914-1.0m
3/8" x 3/8" 10.6x10.6 22 0.71 0.914-1.0m
1/2" x 1/2" 12.7x12.7 21 0.81 0.914-1.5m
5/8" x 5/8" 16x16 20 0.9 0.914-1.5m
3/4" x3/4" 19.1x19.1 20 0.9 0.914-1.5m
1" x 1" 25.4x25.4 19 1.0 0.914-1.5m
1" x 1/2" 25.4x12.7 20 0.9 0.914-1.5m
1.5" x 1.5" 38x38 18 1.22 0.914-1.5m
1" x 2" 25.4x50.8 16 1.65 0.914-1.80m
2" x 2" 50.8x50.8 14 2.0 0.914-1.80m
3" x 3" 75x75 14 2.0 0.914-1.80m
4" x4" 100x100 14 2.0 0.914-1.80m



Material: Stainless Steel

304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

Features:



It is durable and rigid in quality. It has the merit of high intensity, anti-rusting, anti-corrosion, acid-resisting, alkali-resistant, high temperature resistant, solidly welded, beautiful and good toughness. With following advandages:

Excellent heat resistant and high intensity;
Highstrength and strong integration;
Flat and smooth surface combined with firm structure;
Perfectanti - rust property;
Stay holistic even cut into fragmented parts;
Long use life, etc.



Applications:



Infill panel & railing systems
Industrial fan & machine guards
Security enclosures
Animal retention (cages)
Small critter control
Decorative signage
Room dividers
Wall cladding
Ceiling panels
Air vents & soffit screens
Basket fabrication
Food applications
Racking & storage
Aviary & bird screen
Industrial separation



ISO Rectangle Hole Ss Welded Wire Mesh 4" X 2" Opening 0.105" Diameter 1



Packing:

ISO Rectangle Hole Ss Welded Wire Mesh 4" X 2" Opening 0.105" Diameter 2

ISO Rectangle Hole Ss Welded Wire Mesh 4" X 2" Opening 0.105" Diameter 3
