Stainless 304 Astm Welded Steel Wire Fabric 2" Opening 0.078" Diameter

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden cases or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Firm Structure, Rust Resistant, Corrosion Resistant Material Stainless Steel 304
Color Bright Silver Surface Treatment Polished
Technique Type Welded Opening 2" Square
Wire Diameter 0.078" Width 36", 48", Etc
Length 100' Or 30.5m Application Security Or Isolation Fencing For Pedestrians’ Pavement, Transport Center And Other Public Places.
High Light

0.078" diameter welded steel wire fabric

,

2" opening welded steel wire fabric

,

astm 304 stainless steel weld mesh

Leave a Message
Product Description

Stainless Steel 304 ASTM 2" Opening 0.078" Diameter Wire Welded Wire Mesh



Brief Introduction



Stainless steel welded wire mesh is an extremely popular and versatile item that many different customers use for many different applications. We specializes in supplying high quality stainless steel welded wire mesh. Stainless steel welded wire mesh is corrosion resistant, uniform in appearance and available from stock or through custom manufacturing.



Aside from stainless steel’s corrosion resistance and clean look, another benefit of selecting a stainless steel welded wire mesh is that because the wires are physically welded at each intersection, the mesh will remain intact and rigid. Strong and consistent welds make stainless steel welded wire mesh an ideal option for general industrial use because welded mesh can be cut down to smaller sizes, like rectangles, squares or discs, without fraying, which can occur when fabricating with a woven mesh.



Like virtually all wire mesh and wire cloth, stainless steel welded wire mesh lends itself for use in architectural, agricultural, commercial and industrial applications.



2" Welded Mesh Specifications

Specifications US Metric
Mesh Size 2” 1.27cm
Wire Diameter 0.078” 2.0mm
Width 48” 1.22m
Length 100ft 30.5m
Packing: Water-proof paper first then plastic film, in wooden case or pallets.
Nearest Port: Tianjin(By Sea); Beijing(By Air).


Main Specifications:


Mesh Size Wire Diameter Width
In Inch In MM BWG mm m
1/4" x 1/4" 6.4x6.4 25 0.5 0.914-1.0m
3/8" x 3/8" 10.6x10.6 22 0.71 0.914-1.0m
1/2" x 1/2" 12.7x12.7 21 0.81 0.914-1.5m
5/8" x 5/8" 16x16 20 0.9 0.914-1.5m
3/4" x3/4" 19.1x19.1 20 0.9 0.914-1.5m
1" x 1" 25.4x25.4 19 1.0 0.914-1.5m
1" x 1/2" 25.4x12.7 20 0.9 0.914-1.5m
1.5" x 1.5" 38x38 18 1.22 0.914-1.5m
1" x 2" 25.4x50.8 16 1.65 0.914-1.80m
2" x 2" 50.8x50.8 14 2.0 0.914-1.80m
3" x 3" 75x75 14 2.0 0.914-1.80m
4" x4" 100x100 14 2.0 0.914-1.80m



Material: Stainless Steel

304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

Features:



Stainless steel welded wire mesh is durable and strong, the material wire is rust resistant, corrosion resistant and also anti-chemicals, which could be exposed to corrosion for a long time. Because of its natural properties, stainless steel welded wire mesh need no additional finish procedures to protect it.



Applications:



Infill panel & railing systems
Industrial fan & machine guards
Security enclosures
Animal retention (cages)
Small critter control
Decorative signage
Room dividers
Wall cladding
Ceiling panels
Air vents & soffit screens
Basket fabrication
Food applications
Racking & storage
Aviary & bird screen
Industrial separation

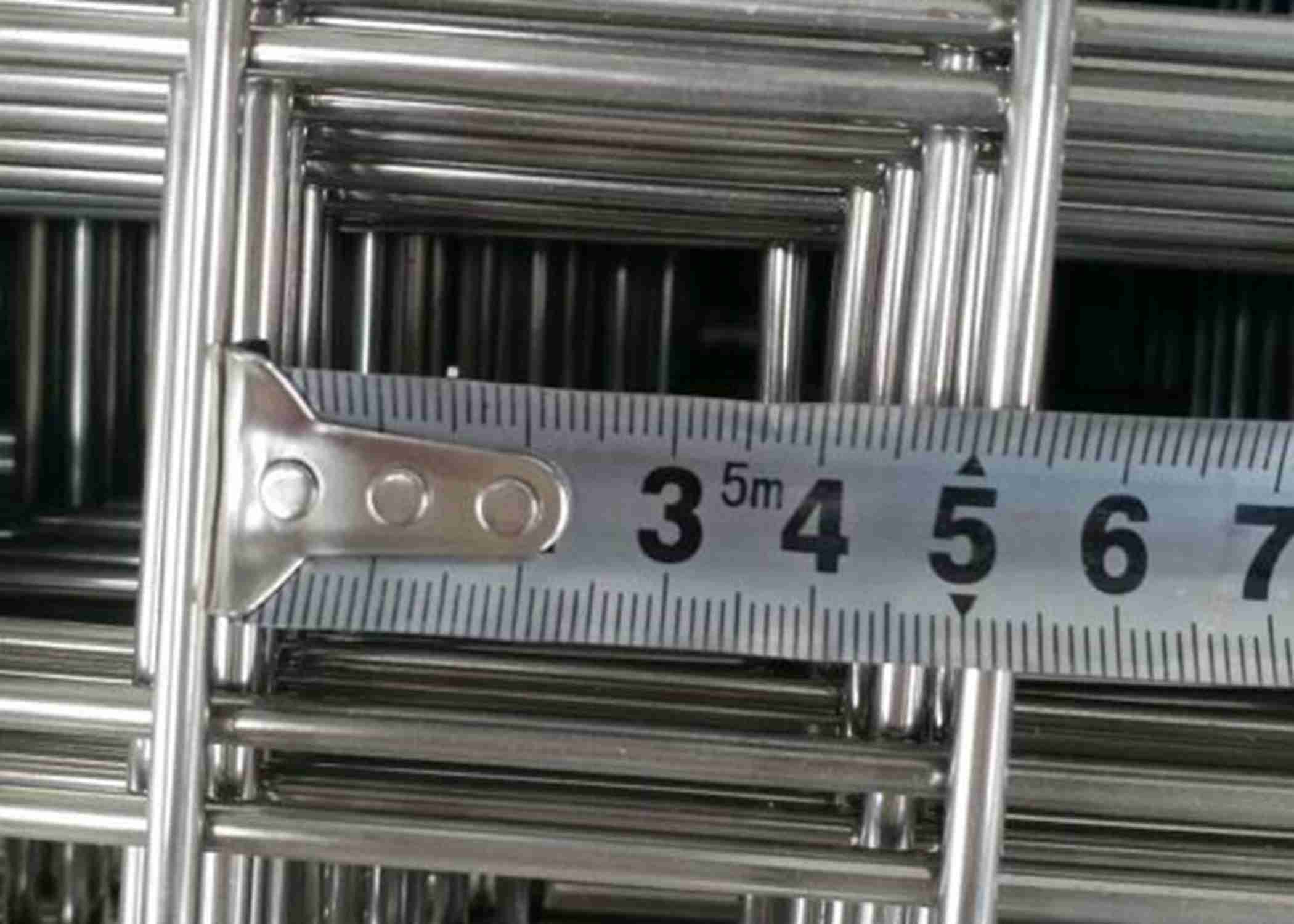

Stainless 304 Astm Welded Steel Wire Fabric 2" Opening 0.078" Diameter 0



Packing:

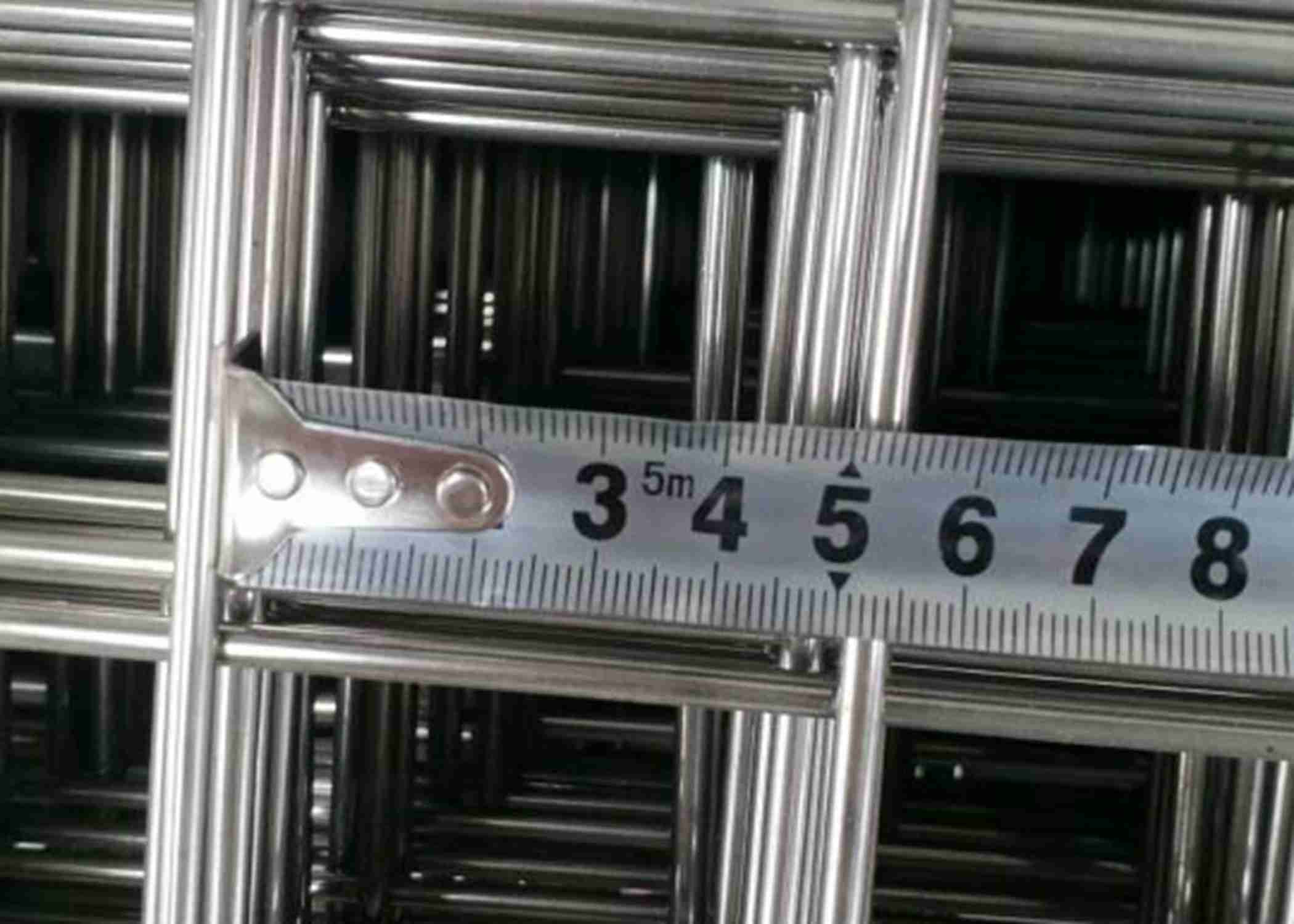

Stainless 304 Astm Welded Steel Wire Fabric 2" Opening 0.078" Diameter 1

Stainless 304 Astm Welded Steel Wire Fabric 2" Opening 0.078" Diameter 2
