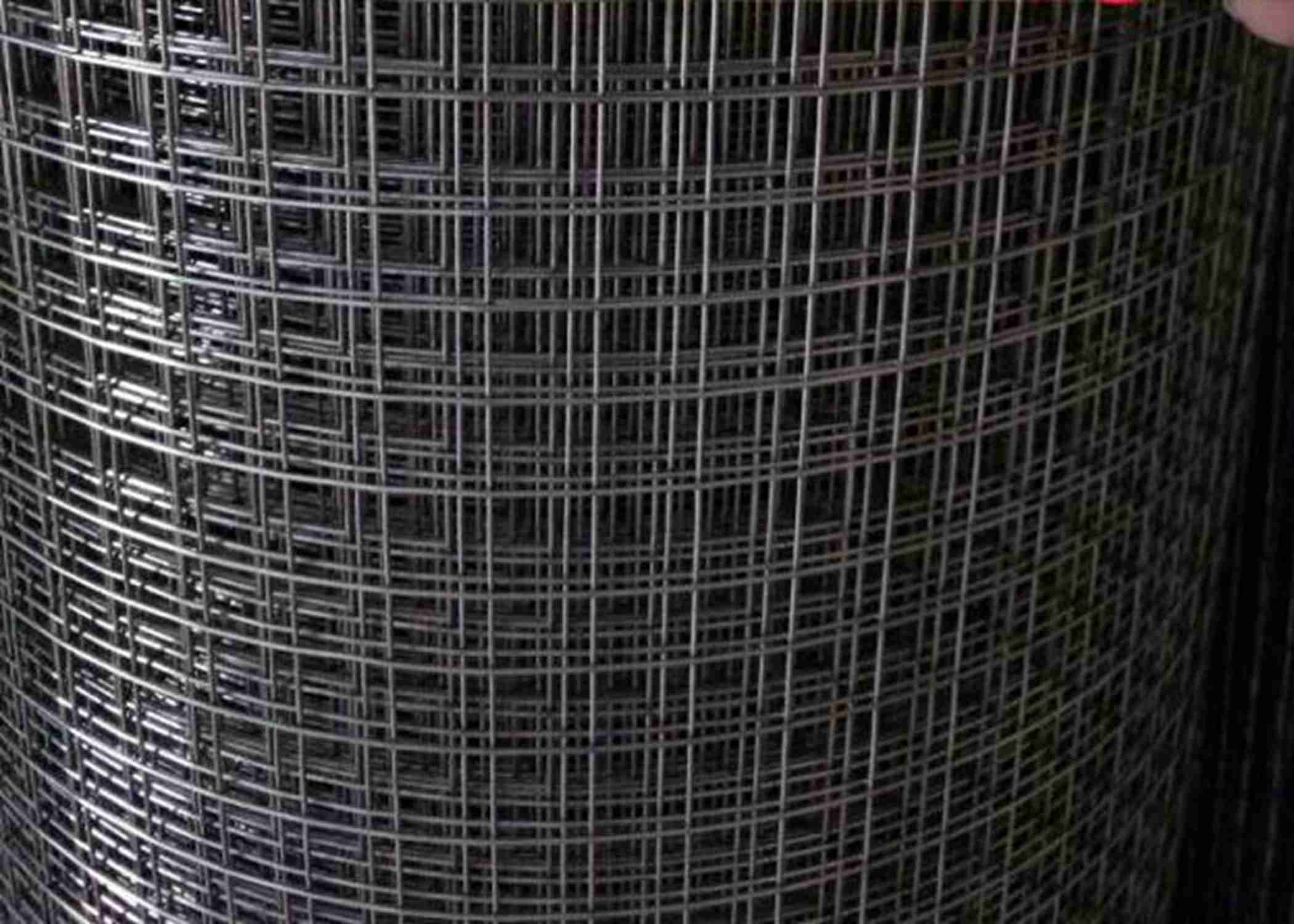

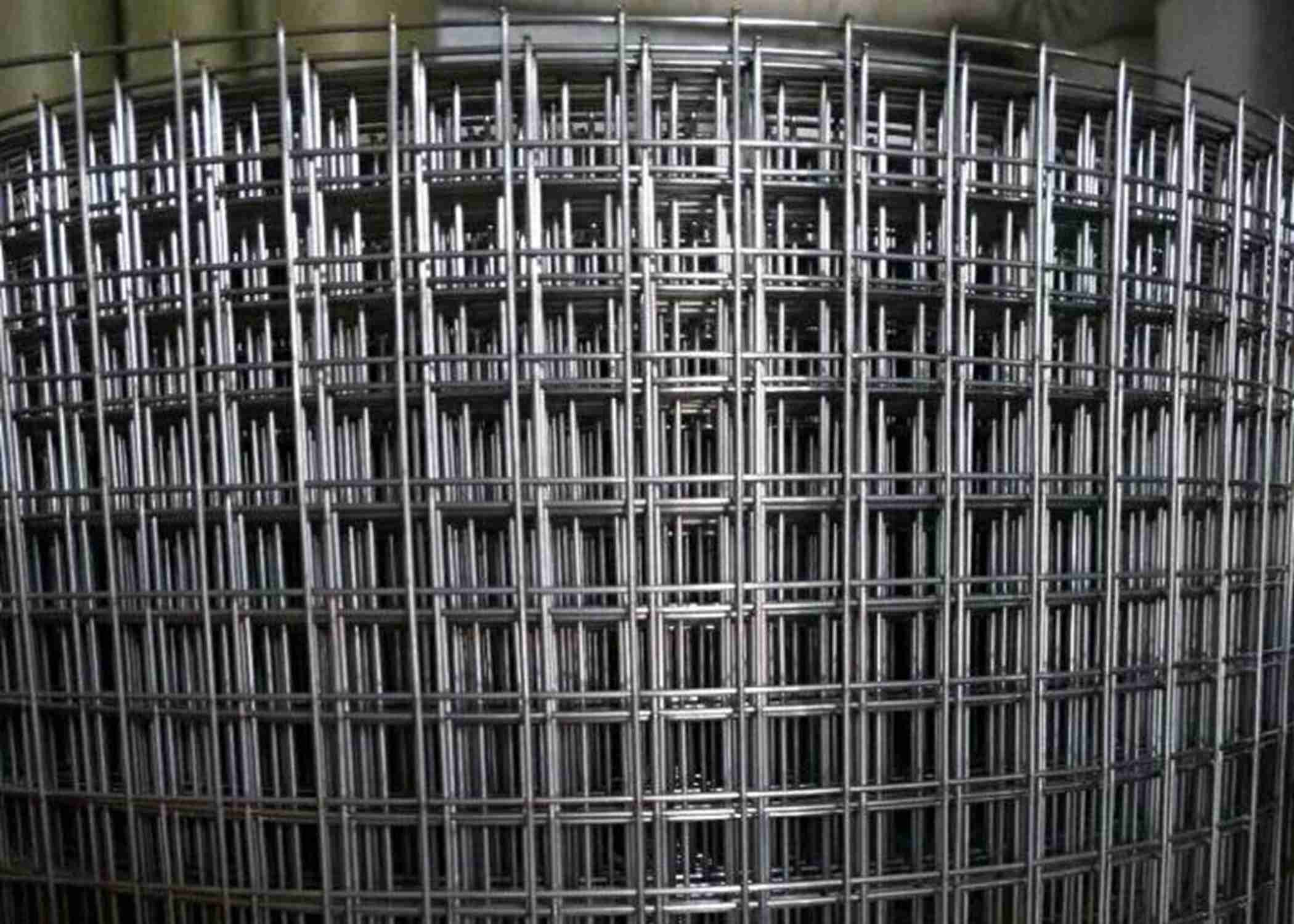

Ss304 Welded Metal Mesh 1/2" Opening Roll Widths 36" 48"

  • Ss304 Welded Metal Mesh 1/2" Opening Roll Widths 36" 48"
  • Ss304 Welded Metal Mesh 1/2" Opening Roll Widths 36" 48"
  • Ss304 Welded Metal Mesh 1/2" Opening Roll Widths 36" 48"
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 20Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Durable And Strong Material SS304
Color Bright Silver Type Heavy Duty
Technique Type Welded Wire Diameter 0.063”
Clear Opening 1/2" Width 24"-84"
Length 100' Standard Application Widely Used In Industry, Agriculture, Construction, Breeding, Transport, Mining Exploitation, Transport, Entertainment Facilities And Other Public Places.
Highlight

ss304 welded metal mesh

,

1/2" opening welded metal mesh

,

bright silver stainless welded wire mesh
Leave a Message
Product Description

SS304 Welded Wire Mesh 1/2" Opening Roll Widths With 36" 48" And So On



Steel Welded Mesh Introduction



Stainless steel welded meshes Wires joined by resistance-welding (No filler metal used). offer excellent characteristics such as corrosion resistance, oxidation resistance, acid resistance, alkali resistance, aging resistance, sunshine resistance and weather resistance.Stainless steel welded mesh products enjoys the features of better strength, strong integration, therefore stainless steel welded mesh is not easy to loosen even be cut into parts or exerted force on the parts. The structure of stainless steel welded mesh is strong and firm, therefore this kind of wire mesh has a long service life.



Specifications US Metric
Mesh Size 1/2” 1.27cm
Wire Diameter 0.063” 1.6mm
Width 48” 1.22m
Length 100ft 30.5m
Packing: Water-proof paper first then plastic film, in wooden case or pallets.
Nearest Port: Tianjin(By Sea); Beijing(By Air).



Specifications US Metric
Mesh Size 1/2” 1.27cm
Wire Diameter 0.047” 1.2mm
Width 48” 1.22m
Length 100ft 30.5m
Packing: Water-proof paper first then plastic film, in wooden case or pallets.
Nearest Port: Tianjin(By Sea); Beijing(By Air).

Specifications:

Mesh Size Wire Diameter Width
In Inch In MM BWG mm m
1/4" x 1/4" 6.4x6.4 25 0.5 0.914-1.0m
3/8" x 3/8" 10.6x10.6 22 0.71 0.914-1.0m
1/2" x 1/2" 12.7x12.7 21 0.81 0.914-1.5m
5/8" x 5/8" 16x16 20 0.9 0.914-1.5m
3/4" x3/4" 19.1x19.1 20 0.9 0.914-1.5m
1" x 1" 25.4x25.4 19 1.0 0.914-1.5m
1" x 1/2" 25.4x12.7 20 0.9 0.914-1.5m
1.5" x 1.5" 38x38 18 1.22 0.914-1.5m
1" x 2" 25.4x50.8 16 1.65 0.914-1.80m
2" x 2" 50.8x50.8 14 2.0 0.914-1.80m
3" x 3" 75x75 14 2.0 0.914-1.80m
4" x4" 100x100 14 2.0 0.914-1.80m

Width: 3', 4', 5', 6', 7'; Packing, other width, length specification can be at buyer's option.



Others dimensions at your special need.



Material: Stainless Steel 304


304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.


Features:



Stainless steel welded wire mesh is durable and strong, the material wire is rust resistant, corrosion resistant and also anti-chemicals, which could be exposed to corrosion for a long time. Because of its natural properties, stainless steel welded wire mesh need no additional finish procedures to protect it.



Applications:


Stainless steel welded metal mesh is widely used in industry, agriculture, construction, breeding, transport, mining exploitation, transport, entertainment facilities and other public places.For example, stainless steel welded mesh is used as security or isolation fencing for pedestrians’ pavement, transport center and other public places.

Ss304 Welded Metal Mesh 1/2" Opening Roll Widths 36" 48" 0

Packing:



Inside with a paper tube, outside with plastic film or waterproof paper, then pallets.
