Plain Reverse Dutch Weave Wire Mesh With High Mechanical Stability

  • Plain Reverse Dutch Weave Wire Mesh With High Mechanical Stability
  • Plain Reverse Dutch Weave Wire Mesh With High Mechanical Stability
  • Plain Reverse Dutch Weave Wire Mesh With High Mechanical Stability
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2 rolls
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Reverse Plain Dutch Weave Wire Mesh Material Stainless Steel 304 316
Woven Type Reverse Plain Dutch Weave Reverse Dutch The Coarser Wire In The Weft Direction And The Finer Wire In The Warp Direction.
Roll Width 0.1m To 1.2m Color Silver
Feature High Mechanical Stability Aplication Widely Used For Filtering In Various Industries
Highlight

plain reverse dutch weave wire mesh

,

ss316 reverse dutch weave wire mesh

,

plain stainless steel dutch wire mesh
Leave a Message
Product Description

Reverse Plain Dutch Weave (RPDW) Wire Mesh With High Mechanical Stability


Product infomation:



Reverse Dutch Weave Wire Mesh involves in plain weave pattern, with many wires in warp direction having a thin diameter and relatively few wires in weft direction having a large diameter.



Reversed plain dutch weaves or PZ microdur weave combine the properties of fine metal wire meshes with high mechanical stability which, are key properties for the specialized requirements of solid-liquid filtration. In many cases, reversed plain dutch weave mesh is referred to as reverse woven plain dutch weave mesh or robusta mesh. Applications include pre-coat filters, filter candles, vacuum filters and spring filters.



Features: Stainless steel reverse dutch wire mesh offers good wear-resistance, acid-resistance, heat-resistance and corrosion resistance. Key property of reversed plain dutch weave mesh is high mechanical stability.


Standard specifications


48 × 10 mesh RDPW 400 nominal micron.
72 × 15 mesh RDTW 250 nominal micron.
132 × 17 mesh RDTW 200 nominal micron.
152 × 30 mesh RDTW 115 nominal micron.
260 × 40 mesh RDTW 75 nominal micron.

Mesh/Inch

(Warp x Weft)

Wire Diameter

(Warp x Weft)

 Absolute Filter Rating(um)
(mm) (inch)
63 x 18 0.40 x 0.60 0.0157 x 0.0236 220
72 x 15 0.45 x 0.55 0.0177 x 0.0216 200
107x 20 0.24 x 0.60 0.0094 x 0.0236 210
130 x 35 0.20 x 0.40 0.0079 x 0.0157 80
132 x 16 0.24 x 0.60 0.0094 x 0.0236 200
132 x 32 0.20 x 0.40 0.0079 x 0.0157 105
140 x 40 0.19 x 0.38 0.0075 x 0.015 100
152 x 24 0.30 x 0.40 0.0118 x 0.0157 160
170 x 40 0.20 x 0.45 0.0079 x 0.0177 130
171 x 46 0.15 x 0.30 0.0059 x 0.0118 85
175 x 40 0.15 x 0.38 0.0079 x 0.0157 70
175 x 50 0.15 x 0.30 0.0059 x 0.0118 60
180 x 120 0.088 x 0.10 0.0035 x 0.004 75
200 x 120 0.08 x 0.10 0.0031 x 0.004 70
280 x 70 0.09 x 0.21 0.0035 x 0.0083 40
290 x 75 0.09 x 0.20 0.0035 x 0.0079 55
400 x 125 0.066 x 0.10 0.0026 x 0.0039 50
600 x 100 0.04 x 0.14 0.00157 x 0.0055 25
600 x 125 0.042 x 0.125 0.00165 x 0.0049 20
615 x 102 0.04 x 0.16 0.00157 x 0.0063 42
615 x 130 0.04 x 0.13 0.00157 x 0.0051 22
625 x 133 0.04 x 0.13 0.00157 x 0.0051 17
720 x 150 0.036 x 0.10 0.0014 x 0.0039 17
850 x 155 0.03 x 0.10 0.0012 x 0.004 10





Weaving Methods: Reverse Plain Dutch Weave(RPDW), is referred to as reverse woven plain dutch weave or Robusta mesh.



Features



Smooth surface.
High hardness.
Zero aperture.
Chemical resistance.
Acid and alkali resistance.
Rust and corrosion resistance.
High tensile strength than the plain weave woven wire mesh.
Outstanding filtration performance.



Applications

Reverse Dutch Wire Mesh is widely used in aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientic research, conveying and other industries.


Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.

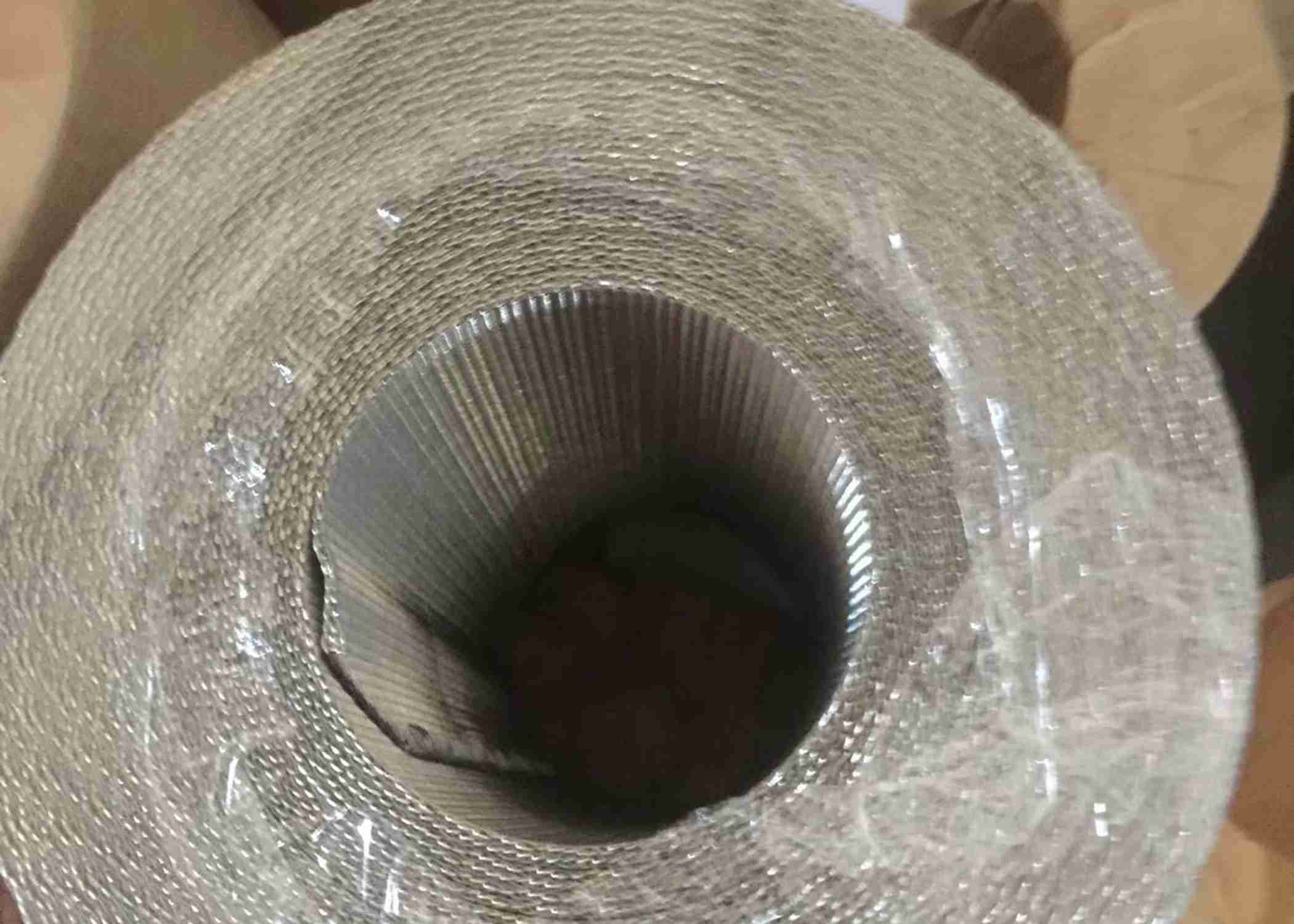

Plain Reverse Dutch Weave Wire Mesh With High Mechanical Stability 0

Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen

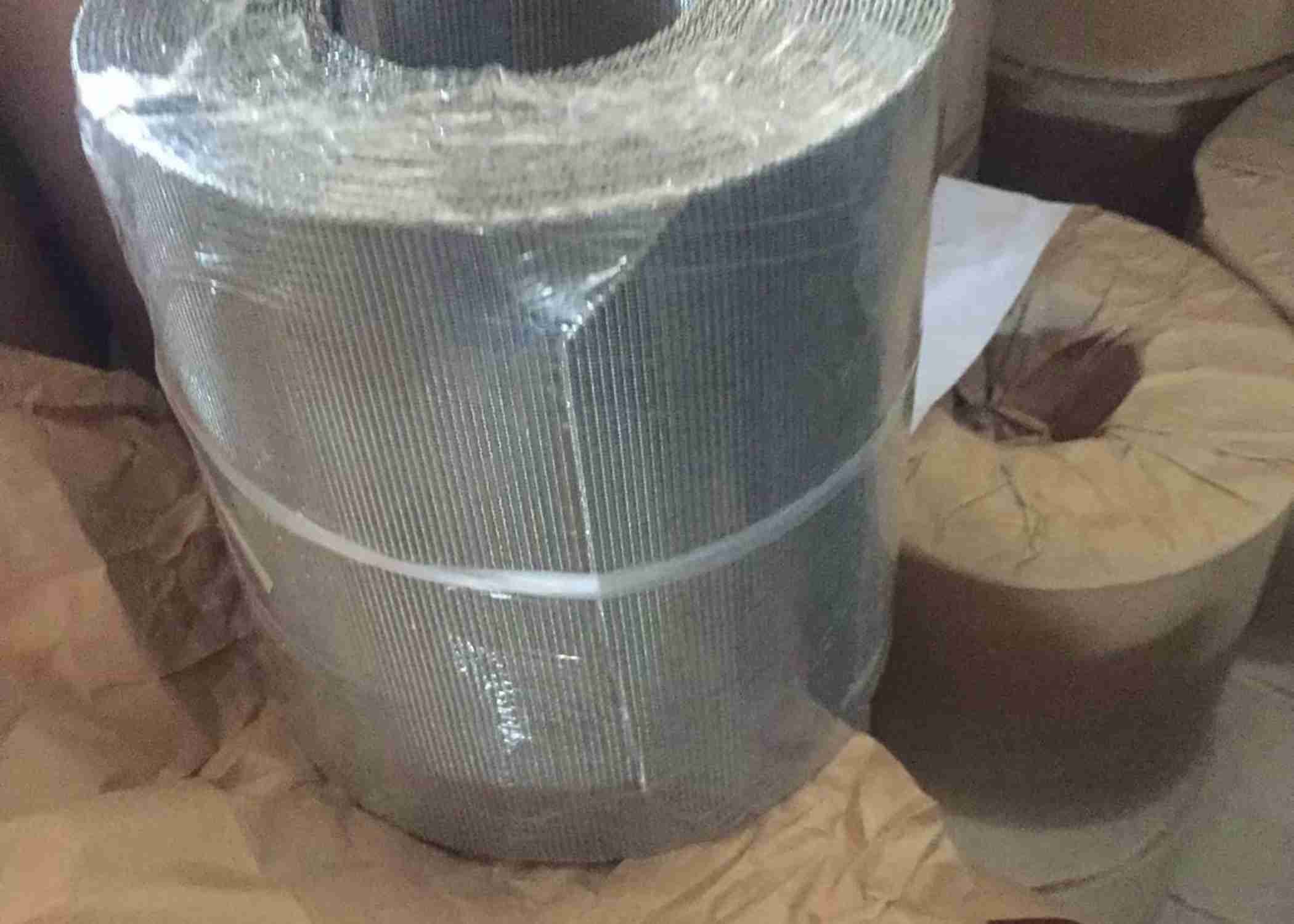

Plain Reverse Dutch Weave Wire Mesh With High Mechanical Stability 1



Plain Reverse Dutch Weave Wire Mesh With High Mechanical Stability 2

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
