Facade Flat Wire Woven Mesh Low Level Transparency Provides Big Privacy Protection

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 30m Length
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Features Low Level Of Transparency. Product Name Flat Wire Woven Mesh Facade
Material Stainless Steel Wire 304/316/316L. Color Silver, Brass, Bronze, Gold
Warp Wire Diameter 6mm × 1.5mm. Warp Pitch 12mm
Weft Wire Diameter 6mm × 1.5mm Weft Pitch 12mm.
Surface Treatment Decorative Plating, Powder Coating, Etc. Application Provides Big Privacy Protection
High Light

facade flat wire woven mesh


304 flat wire woven mesh


316 facade wire mesh

Leave a Message
Product Description

Flat Wire Woven Mesh Facade With Low Level Of Transparency To Provides Big Privacy Protection

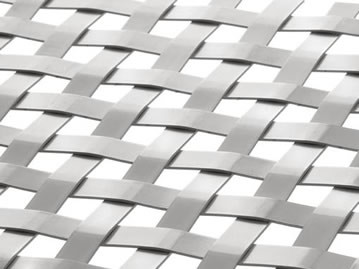

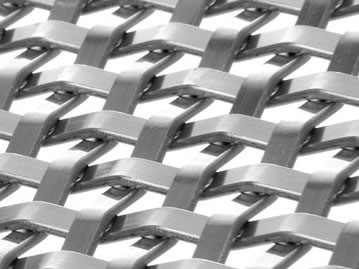

Flat wire woven mesh Introduction


In addition to the cable metal mesh and crimped metal mesh, flat wire woven mesh is also can be used for building facade cladding. But, it can provide big privacy protection and has a quite different look to other meshes. This is because instead of being woven from round wires, the woven wire mesh is made of stainless steel flat wires. The flat wires create a larger surface area which reduce the transparency but provide a very sleek homogeneous appearance. The flat wire woven mesh facade is incredibly strong and robust. And the choice of warp and weft wires as well as the type of weave create a kind of different mesh with specific optics and light effects. With the low open area, the wire mesh is still open enough to provide adequate airflow to allow for natural ventilation.


Besides, it can be painted for different colors to attract more attention and the painted mesh is incredibly durable, weather-resistant and virtually no maintenance. We can offer you various sizes of flat wire woven facade mesh to meet your different needs.



Flat Wire Decorative Wire Mesh Technique Information:


Material: stainless steel wire 304/316/316L.
Warp diameter: 2.7mm × 1.6mm.
Warp pitch: 6.4mm.
Weft diameter: 2.7mm × 1.6mm.
Weft pitch: 6.4mm.
Material: stainless steel wire 304/316/316L.
Warp diameter: 6mm × 1.5mm.
Warp pitch: 12mm.
Weft diameter: 6mm × 1.5mm.
Weft pitch: 12mm.




A low level of transparency.
Durable, made of robust mesh.
Have a very sleek homogeneous appearance.
Particularly suitable for facades requiring reduced transparency.
Functionality, and offer protection for the building.



The flat wire woven facade cladding mesh with square opening is specially developed to do the exterior facade for some projects, which need to reduce transparency. This type wire mesh facade can achieve the attractive light reflection and at the same time establish a new identity for the building.


Flat wire woven mesh can be used as exterior facade.


Stainless steel and brass type flat wire woven mesh is installed on the facade of building.




Facade Flat Wire Woven Mesh Low Level Transparency Provides Big Privacy Protection 2
