Ss 304 Ladder Conveyor Belt Straight And Curved Types
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Simplest Structure | Product Name | Ladder Conveyor Belt |
|---|---|---|---|
| Material | Stainless Steel 304, 316 Or Other Materials As Your Request. | Standard | AISI, DIN, SUS, Etc |
| Diameter Of Cross Rod | 2mm To 20mm | Speed | 1 M/min To 20 M/min |
| Temperature Range | -100°C To +300°C. | Belt Types | Straight Types And Curved Types |
| Belt Width | 20mm To 2000mm | Application | Food Processing, Waste Treatment Facilities, Etc. |
| Highlight | ss 304 ladder conveyor belt,curved ladder conveyor belt,ladder straight conveyor belt |
||
Product Description
Ladder Conveyor Belt For Common Process And Loads Available Straight Types And Curved Types
Rod Network Conveyor Belt Introduction

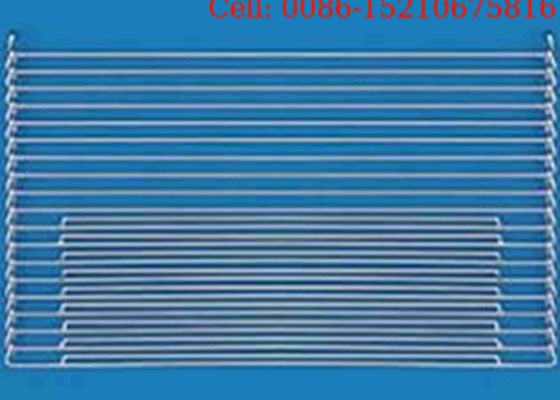

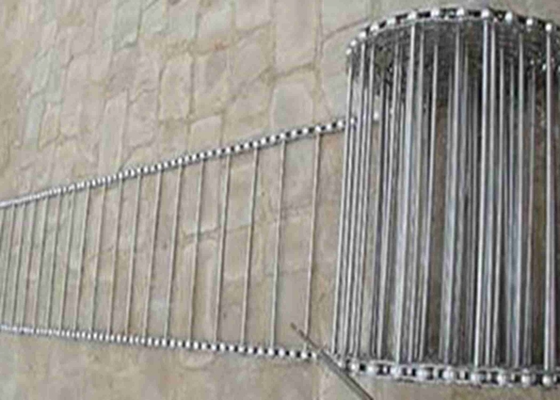

With the simplest structure, the ladder conveyor belts are composed of cross rods jointed by S-shaped hooks, chain links and U-shaped links. The belts with links are secured by welding a ring to the cross rod for containing the integrity of the ladder conveyor belts.
Specifications
Material: steel, stainless steel 304, 316 or other materials as your request.
Speed: from less than 1 m/min to 20 m/min. (High speed quicker than 20 m/min may affect the longevity of the conveyor belt)
Temperature range: -100°C to +300°C.
| Properties | Ladder belt with S-shaped hook | Ladder belt with chain links | Ladder belt with U-shaped links |
| Pitch | 1/2" to 4" | 1" to 3" | 3/4", 1" and 1-1/13" |
| Width | 20mm to 1500mm | 25mm to 2000mm | 80mm to 2000mm |
| Diameter of cross rod | 2mm to 8mm | 4mm to 20mm | 5mm |
| Application | Running in straight & curved applications | Only running in straight application | Running in straight & curved applications |
Other specifications at your requests.
Three types of flat flex conveyor belt edge:
Single loop edge.
Double loop edge.
C-shaped loop edge.
Belt Type:
Features:
High open structure - high proportion of open area up to 86% makes the belt efficient in cooling, drying, heating applications.
Positive drive without slipping - Rod network belts are normally driven by sprockets positively without need for complicated tracking mechanisms.
Stable conveying - With smallest diameter end rolls and drive rolls, the rod network belts provide stable conveying of delicate products.
A wide range of sizes - Various sizes with different openness to suit different applications providing superb strength and min contact surface between the products and the belts. Generally, the more the joints cross the width, the stronger the belt.
Lower belt mass - low belt mass than balanced weave belts for lower power consumption, faster processing and more product throughput.
Cost saving - The high open structure without hidden crevices makes the belt easy to clean and maintain which result in considerable cost saving.
Applications:
Food processing: cooling, washing, drying, etc.
Waste treatment facilities.
Product sieving and sorting system.
Blanching and product handling system.
Packing:
Warpped with water-proof plastic material, then in wooden box.
