Rod Network Wire Conveyor Belt Ss304 Ss316 High Open

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | High Open Structure, Stable Conveying, Etc | Product Name | Rod Network Conveyor Belt |
---|---|---|---|
Material | Stainless Steel SS 304, SS 316. | Standard | AISI, DIN, SUS, Etc |
Wire Diameter | 1 Mm, 1.2 Mm, 1.5 Mm, 1.6 Mm, 1.8 Mm, 2 Mm, 2.3 Mm, 2.35 Mm. | Pitch | 4.8 Mm To 12.7 Mm. |
Open Area | 67.5% To 86%. | Belt Edge | Single Loop Edge, Double Loop Edge, C-shaped Loop Edge |
Belt Width | 200 Mm To 3600 Mm. | Application | Food Industry, Etc |
Highlight | rod network wire conveyor belt,ss304 wire conveyor belt,ss316 wire mesh conveyor belt |
Simplest Type Wire Mesh With Various Edge Belt Flat Flex Conveyor Belt

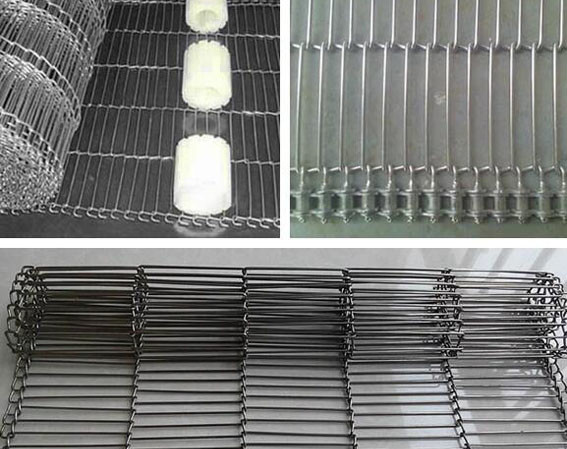

Rod Network Conveyor Belt Introduction
Rod network belts, also known as enrober conveyor belts or flat flex conveyor belts, feature specially designed "Z-bend" joints in the wire mesh. They are perfect for transporting light and medium weight products in food processing industries.
Flat flex conveyor belt is the simplest type among all type of steel mesh conveyor belt. The materials of flat flex conveyor belt are stainless steel, high carbon steel, galvanized steel and other steel wires.
Flat flex conveyor belt is constructed by several loop wires and then be formed different edge. The simple structure make it economical and lightweight. It can help to save cost and reduce downtime.
The standard flat flex conveyor belt is flat and without any convex or concave surface. The standard flat flex conveyor belt is suitable for almost all the applications. Except for the standard flat flex conveyor belt, there are two other types of flat flex conveyor belt. They can be used in different applications for fixing and sorting. You can refer to them and decide if it suit for you.
Common Materials: AISI/SUS 304, 304L, 316, 316L.
Specifications
Materials: SS 304, SS 316.
Wire diameter: 1 mm, 1.2 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.3 mm, 2.35 mm.
Pitch: 4.8 mm to 12.7 mm.
Belt width: 200 mm to 3600 mm.
Open area: 67.5% to 86%.
Specification of Rod Network Ladder Belt |
|||
Wire Diameter (mm) |
Pitch (mm) |
Open Area (%) |
Edge Type |
0.9 |
4.24 |
77 |
single/double |
0.9 |
5.64 |
82 |
single/double |
1.0 |
5.5 |
79 |
single/double |
1.0 |
5.6 |
79.5 |
single/double |
1.27 |
4.3 |
67 |
single |
1.27 |
5.5 |
73 |
single/double |
1.27 |
6.0 |
76 |
single/double |
1.27 |
6.35 |
77 |
single/double |
1.27 |
7.26 |
80 |
single/ double |
1.40 |
6.40 |
76 |
single |
1.60 |
7.26 |
75 |
single/ double |
1.83 |
12.00 |
81 |
single |
1.83 |
12.70 |
82 |
single |
2.08 |
9.60 |
75 |
single |
2.35 |
12.70 |
78 |
single |
2.35 |
20.32 |
85 |
single |
2.80 |
12.70 |
72 |
single |
Other specifications at your requests.
Three types of flat flex conveyor belt edge:
Single loop edge.
Double loop edge.
C-shaped loop edge.
Features:
High open structure - high proportion of open area up to 86% makes the belt efficient in cooling, drying, heating applications.
Positive drive without slipping - Rod network belts are normally driven by sprockets positively without need for complicated tracking mechanisms.
Stable conveying - With smallest diameter end rolls and drive rolls, the rod network belts provide stable conveying of delicate products.
A wide range of sizes - Various sizes with different openness to suit different applications providing superb strength and min contact surface between the products and the belts. Generally, the more the joints cross the width, the stronger the belt.
Lower belt mass - low belt mass than balanced weave belts for lower power consumption, faster processing and more product throughput.
Cost saving - The high open structure without hidden crevices makes the belt easy to clean and maintain which result in considerable cost saving.
Applications:
The ladder belt has many different applications. Several common applications are mentioned below:
Cooling systems in for example bread & pastry industry.
Belt in filtering installations.
Washing systems.
Drying systems.
Canned food processing.
Conveyor belt in installations for baking, frying, grilling, etc.

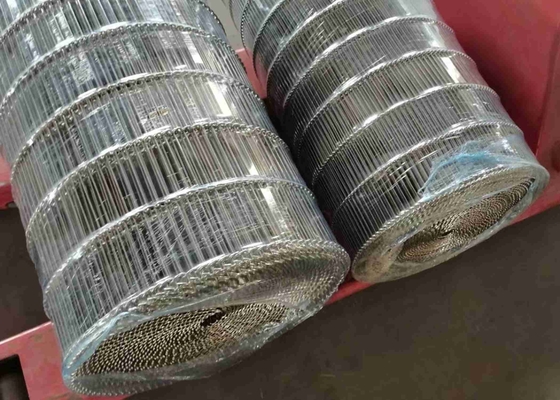

Packing:
Warpped with water-proof plastic material, then in wooden box.
